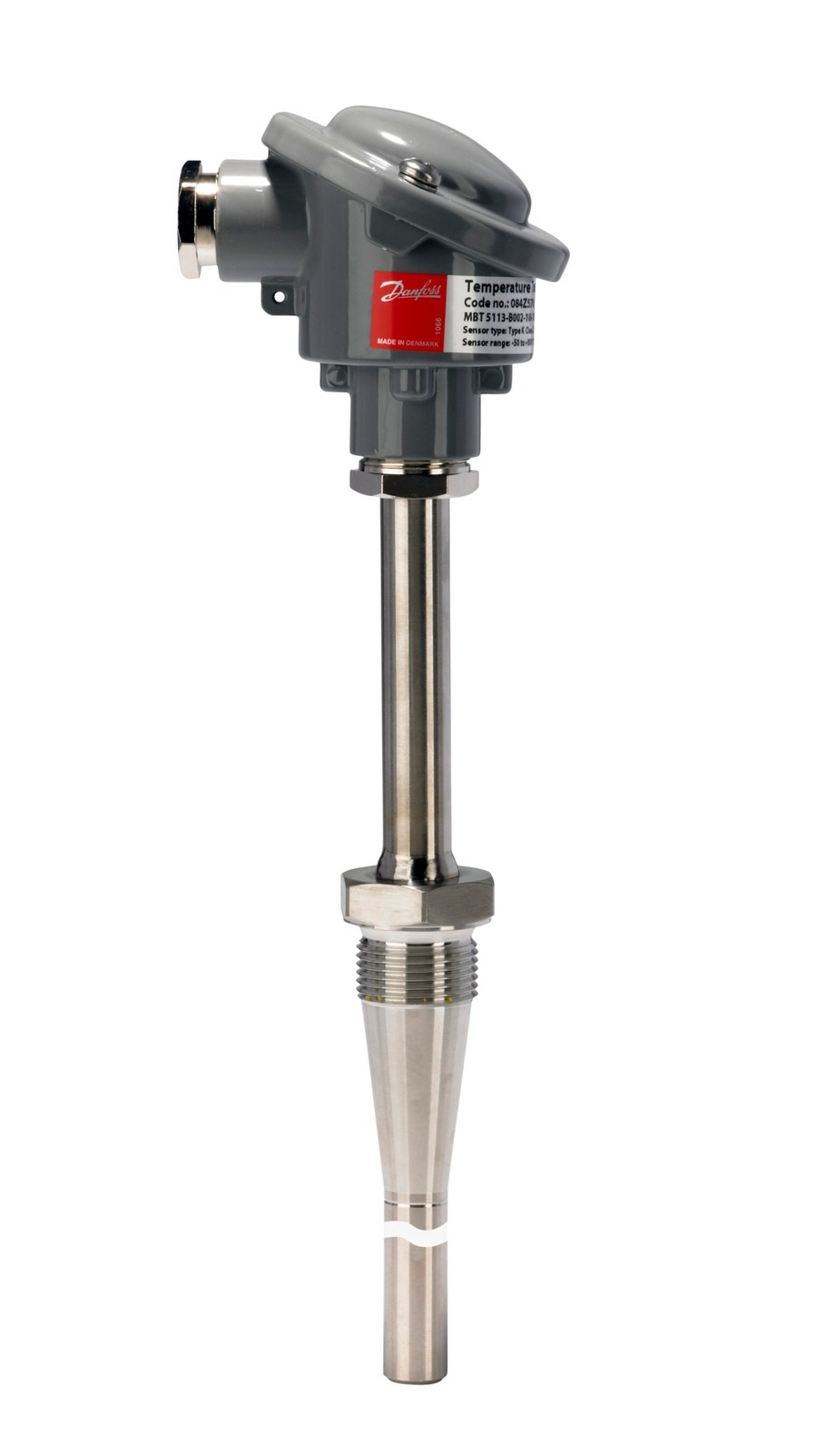

Danfoss MBT 5116 high-temperature insertion temperature sensor, PT100 100 ohm, 250 mm insertion, G 3/4 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 high-temperature insertion temperature sensor, code 084Z8255 (type designation MBT 5116-B002-250-10-0000). High-temperature insertion sensor with a Type B terminal-box head, rated to +600 C, for exhaust-gas, thermal-oil, flue and process-heating duties in industrial and marine plant. Standardized Pt 100 platinum resistance element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 250 mm; G 3/4 male process connection (ISO 228-1-A). AISI 316 Ti stainless-steel protection tube, 14 mm (protection tube, high-temperature slim-line). Measuring range -50 to +600 C (-58 to +1112 F); output Ohm (resistance). Type B terminal-box head, Pg 16; IP65 enclosure per IEC 60529. The measuring insert is exchangeable. Supplied in a 10-piece multipack. CE marked.
Technical Specifications
- Type
- MBT 5116 high-temperature insertion temperature sensor
- Type designation
- MBT 5116-B002-250-10-0000
- Code number
- 084Z8255
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance class
- Class B per EN 60751
- Insertion length
- 250 mm
- Process connection
- G 3/4 male, ISO 228-1-A
- Protection tube
- AISI 316 Ti stainless steel, 14 mm (protection tube, high-temperature slim-line)
- Measuring range
- -50 to +600 C (-58 to +1112 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Type B terminal-box head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Net weight
- 0.943 kg
- Gross weight
- 0.954 kg
- Packing format
- Multi pack (10 pc)
- Approvals
- CE
- EAN
- 5702423118724
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 3.94 in
- Extension length [mm]
- 100 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 9.8 in
- Insertion length [mm]
- 250 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 3/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 250 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +600 C
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 insertion sensor with exchangeable measuring insert. Confirm the required insertion length (250 mm), process thread (G 3/4) and element type (Pt 100) match the thermowell/pocket and controller input before ordering. A matching thermowell can be ordered separately.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5116 high-temperature insertion temperature sensor, PT100 100 ohm, 300 mm insertion, G 3/4 process connection
084Z8256
Danfoss
Danfoss MBT 5116 high-temperature insertion temperature sensor, PT100 100 ohm, 100 mm insertion, G 1/2 process connection
084Z8257
Danfoss
Danfoss MBT 5410 temperature sensor, PT100 100 ohm, 60 mm insertion
084Z8280
Danfoss
Danfoss MBT 153 cable temperature sensor, Pt 100 100 ohm, 3.5 m PVC cable
084Z6030
Danfoss
Danfoss MBT 153 cable temperature sensor, Pt 100 100 ohm, 5.5 m PVC cable
084Z6031
Danfoss
Danfoss MBT 153 cable temperature sensor, Pt 100 100 ohm, 8.5 m PVC cable
084Z6032
Danfoss
Danfoss MBT 153 cable temperature sensor, Pt 1000 1000 ohm, 3.5 m PVC cable
084Z6033
Danfoss

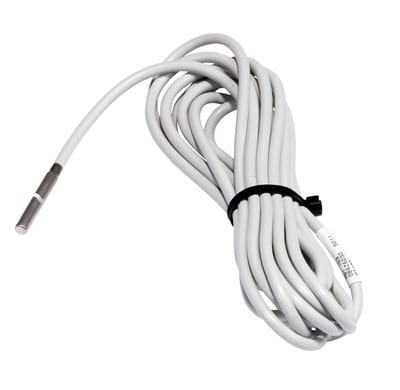

Danfoss MBT 153 cable temperature sensor, Pt 1000 1000 ohm, 5.5 m PVC cable
