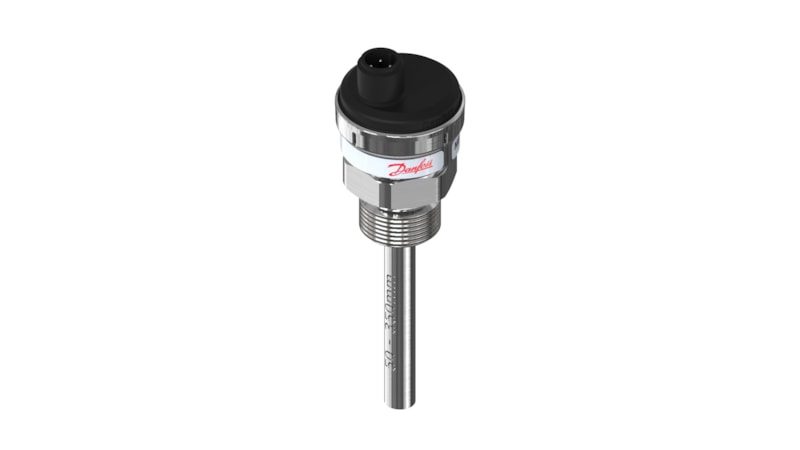

Danfoss MBT 3560 temperature transmitter, Pt 1000 with built-in voltage 0.5-4.5 V transmitter, 70 mm insertion, G 1/2 process connection (code 084Z4050)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3560 temperature transmitter, code 084Z4050 (type designation MBT 3560-0200-0070-B2-815). Compact insertion sensor with an integrated 2-wire loop-powered transmitter that delivers a factory-scaled 0.5-4.5 V (voltage output) over the -40 to +150 C (-40 to +302 F) span, for refrigeration, HVAC and machinery control. Pt 1000 platinum element (1000 ohm at 0 C), accuracy < +/-1% FS. Insertion length 70 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 8 mm diameter. Sensor measuring range -50 to +200 C (-58 to +392 F). 9-30 V DC supply; M12 x 1 male, 4-pin; IP67 enclosure per IEC 60529; maximum ambient 85 C. CE marked.
Specifications
- Part number
- 084Z4050
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP67
- Standard size
- 70 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 3560 built-in transmitter (0.5-4.5 V (voltage output)). Confirm the -40 to +150 C output scaling matches the receiving controller/PLC, a 9-30 V DC supply is available, and the insertion length (70 mm) / process thread (G 1/2) suit the mounting boss.
Standards
- EN 60751
- ISO 228-1-A
- IEC 61076-2-101
- IEC 60529
Approvals
