Danfoss MBT 3270 temperature sensor, Pt 100, 36 mm insertion, R 1/4 process connection, 2 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact fixed cable temperature sensor, code 084Z2483 (type designation MBT 3270-10002-036-D0001-200). Rugged fixed-insert RTD for engines, compressors and machinery temperature monitoring. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 36 mm; R 1/4 tapered male (ISO 7) process connection; AISI 316 stainless-steel protection tube. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Fixed cable, 2-wire, 2 m; IP68 enclosure per IEC 60529. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact fixed cable sensor)
- Type designation
- MBT 3270-10002-036-D0001-200
- Code number
- 084Z2483
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 36 mm
- Process connection
- R 1/4 (ISO 7 tapered male)
- Protection tube
- AISI 316 stainless steel
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 2-wire, 2 m
- Enclosure rating
- IP68 per IEC 60529
- Packing quantity
- 50 pc
- Net weight
- 0.09 kg
- Approvals
- CE
- EAN
- 5702428998109
- Product group
- Sensors
- Approval
- CE
- Cable length [in]
- 79 in
- Cable length [m]
- 2 m
- Cable tempr. range [°C] [max]
- 200 °C
- Cable tempr. range [°C] [min]
- -60 °C
- Cable tempr. range [°F] [max]
- 392 °F
- Cable tempr. range [°F] [min]
- -76 °F
- Cable type
- Silicone
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP68
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 L
- Process connection size
- 1/4
- Process connection type
- R
- Protection tube diameter [in]
- 0.236 in
- Protection tube diameter [mm]
- 6 mm
- Protection tube material
- AISI 316
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 36 mm insertion
- Material
- AISI 316 stainless steel
- Thread Standard
- ISO 7
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP68
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact cable sensor. Confirm insertion length (36 mm), process thread (R 1/4) and element (Pt 100) match the mounting boss and controller input; fixed 2 m 2-wire cable. Distinct from the 40 mm R 1/4 variant 084Z3190.
Product Documentation
More from Danfoss

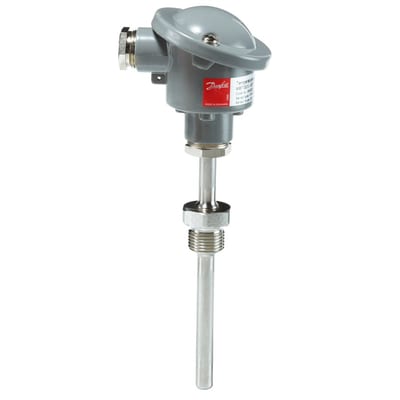

Danfoss
Danfoss MBT 3252 temperature sensor, Pt 100 Class A, 50 mm insertion, NPTF 1/4-18 process connection
084Z2485

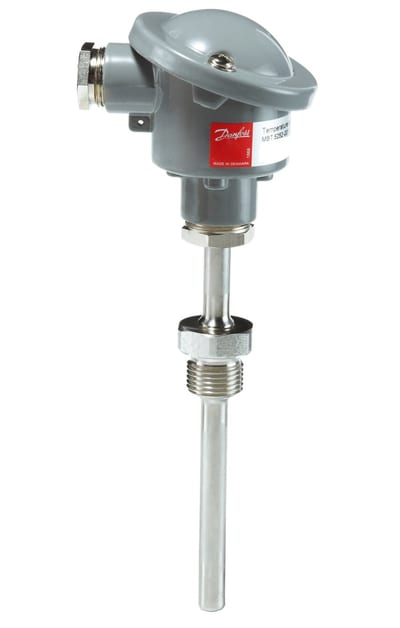

Danfoss
Danfoss MBT 5252 temperature transmitter, Pt 100, 4-20 mA output (0 to +120 C), 250 mm insertion, G 3/4 process connection
084Z2492
Danfoss
Danfoss MBT 3560 temperature transmitter, Pt 1000, 4-20 mA (-50 to +200 C), 50 mm insertion, G 1/4 process connection, PG9 angular
084Z4059
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000, 4-20 mA (-50 to +200 C), 200 mm insertion, G 1/4 process connection, PG9 angular
084Z4061
Danfoss
Danfoss MBT 3560 temperature transmitter, Pt 1000, 4-20 mA (-50 to +200 C), 50 mm insertion, G 1/2 process connection, M12 4PIN
084Z4063

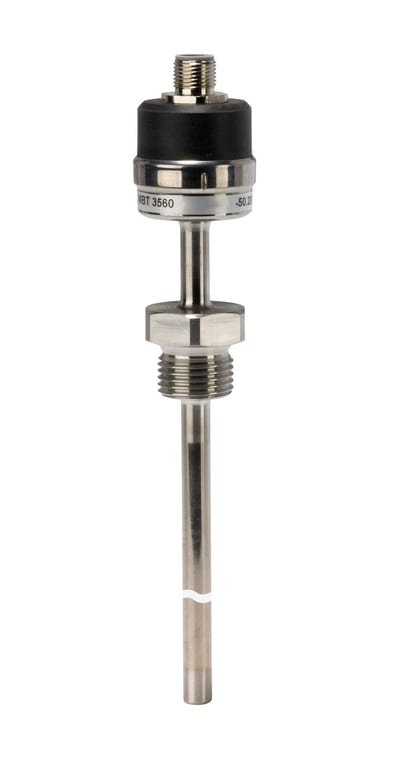

Danfoss
