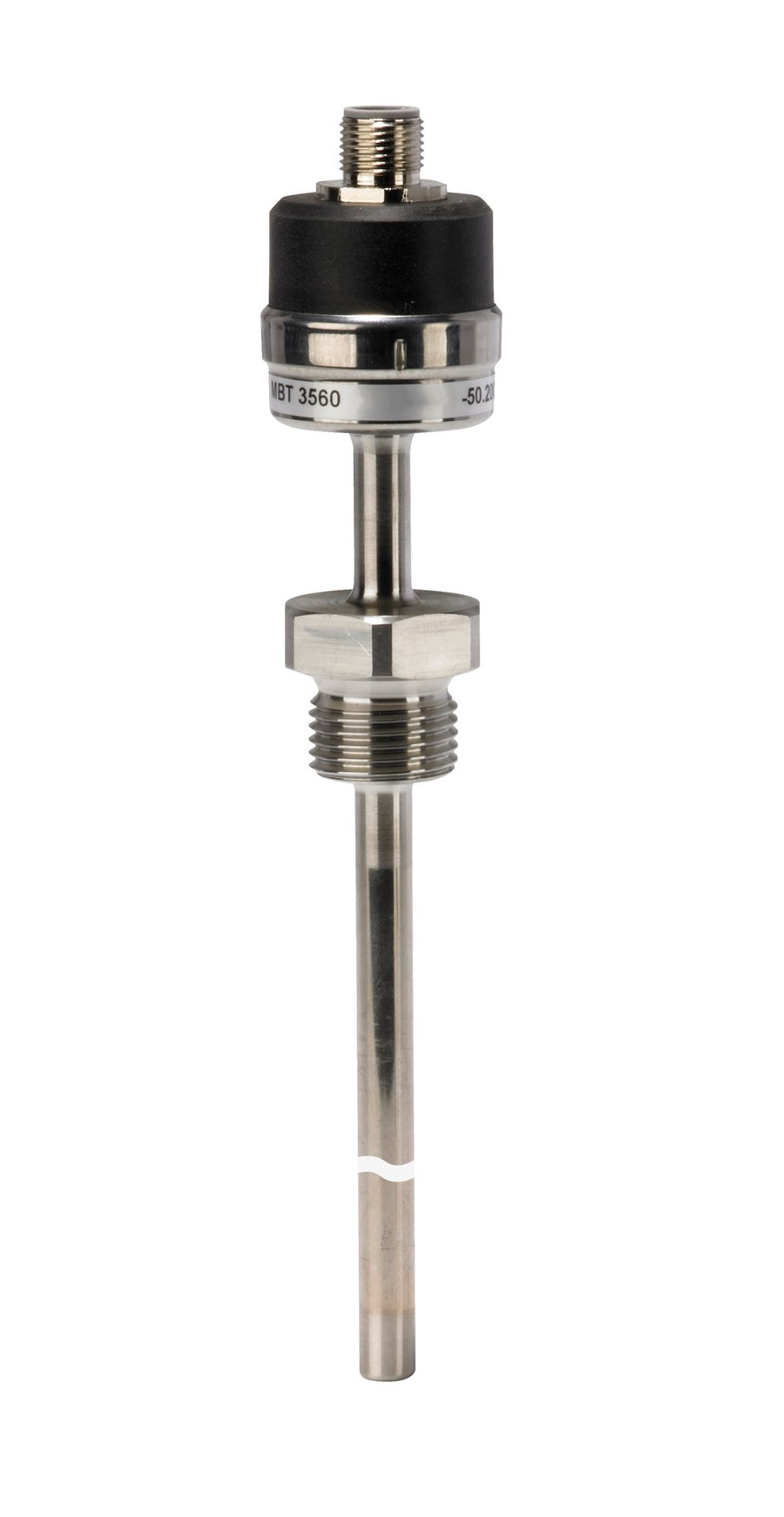

Danfoss MBT 3560 temperature transmitter, Pt 1000, 4-20 mA (-50 to +200 C), 300 mm insertion, G 1/2 process connection, M12 4PIN

Danfoss MBT 3560 insertion temperature transmitter, code 084Z4066 (type designation MBT 3560-0001-0300-62-420). Compact temperature sensor with an integrated 2-wire, loop-powered transmitter that converts the resistance of a built-in Pt 1000 platinum element into a standardized 4-20 mA signal, so a defined temperature is transmitted directly without a separate head or rail transmitter. For engine cooling water, lubricating and hydraulic oil, compressor, refrigeration and HVAC/R circuits, and marine and industrial plant. Insertion length 300 mm; G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm dia. Element measuring range -50 to +200 C (-58 to +392 F). Output 4-20 mA (2-wire) over a -50 to +200 C span; supply 10-32 V DC. Electrical connection: M12 x 1, 4-pin (IEC 61076-2-101). IP67 enclosure per IEC 60529. The built-in transmitter is factory-scaled to a -50 to +200 C output span. Supplied in a 9-piece multipack. CE marked.

Type

MBT 3560 temperature sensor with built-in transmitter

Type designation

MBT 3560-0001-0300-62-420

Code number

084Z4066

Sensor element

Pt 1000 platinum resistance (1000 ohm at 0 C), EN 60751

Transmitter accuracy

< ±1% FS

Measuring range (element)

-50 to +200 C (-58 to +392 F)

Output signal

4-20 mA (2-wire, loop-powered), transmitter setting range -50 to +200 C

Supply voltage

10-32 V DC

Insertion length

300 mm

Process connection

G 1/2 male (ISO 228-1-A)

Protection tube

AISI 316 Ti stainless steel, 8 mm dia.

Electrical connection

M12 x 1, 4-pin (IEC 61076-2-101)

Enclosure rating

IP67 per IEC 60529

Packing quantity

9 pc (multipack)

Net weight

0.189 kg

Approvals

CE

EAN

5702423227167

Product group

Sensors

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Approval

CE

CE mark

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Extension length [in]

1.3 in

Extension length [mm]

33 mm

In scope of WEEE

Yes

Insertion length [in]

11.8 in

Insertion length [mm]

300 mm

Insertion type

Fixed

Measuring range [°C] [max]

200 °C

Measuring range [°C] [min]

-50 °C

Measuring range [°F] [max]

392 °F

Measuring range [°F] [min]

-58 °F

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

200 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

392 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Integrated

Size / Series

300 mm insertion

Material

AISI 316 Ti stainless steel

Thread Standard

ISO 228-1-A

Temperature Range

-50 to +200 C (-58 to +392 F)

IP Rating

IP67

HS Code

9025.19
