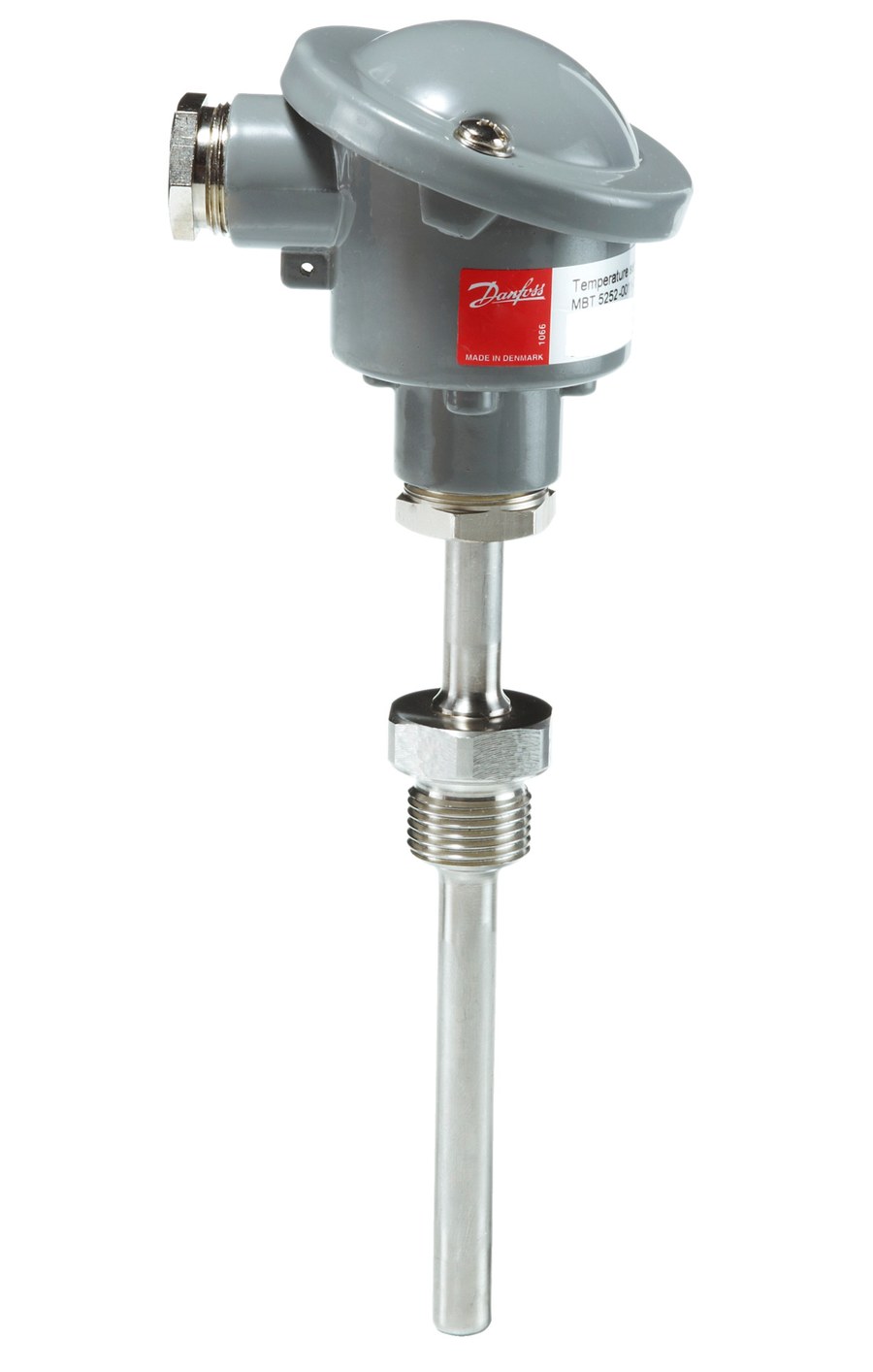

Danfoss MBT 5252 temperature transmitter, Pt 100, 4-20 mA output (0 to +120 C), 250 mm insertion, G 3/4 process connection (code 084Z2492)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5252 heavy-duty insertion temperature transmitter with exchangeable measuring insert, code 084Z2492 (type designation MBT 5252-0011-0250-0300-G112). Integrated Pt 100 sensor and 2-wire loop-powered transmitter delivering a 4-20 mA output scaled to a 0 to +120 C setting range, for cooling water, lubricating and hydraulic oil and refrigeration plant in general industry and marine installations. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751; sensor tolerates -50 to +200 C. Insertion length 250 mm; G 3/4 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. 8-35 V DC supply; Type B connection head, Pg 16; IP65 enclosure per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2492
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 250 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5252 transmitter (4-20 mA, 0 to +120 C span). Confirm the 0 to +120 C output span matches the receiving controller/PLC scaling and that an 8-35 V DC loop supply is available. Insertion 250 mm, G 3/4 thread; distinct from the resistance-output MBT 5252 250 mm G 3/4 sensors 084Z6141/6153.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
