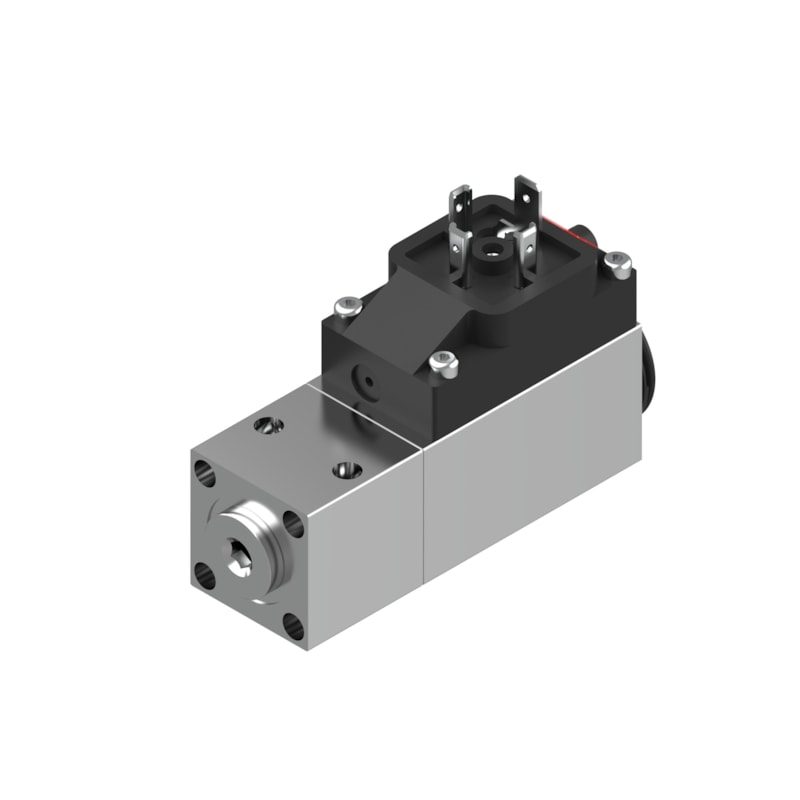

Danfoss MBC 5000-1011-0DB04 block-type pressure switch, -0.2 bar to 1 bar, SPDT, automatic reset, G1/4 flanged, DIN 43650-A plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBC 5000-1011-0DB04 block-type pressure switch, genuine OEM code number 061B201566. Single-pressure switch from the Danfoss MBC block system for industrial pressure monitoring and machinery supervision. Stainless steel bellows sensing element, regulation range -0.2 bar to 1 bar with 0.3 bar to 0.45 bar differential at the min/max setting. SPDT single-pole changeover contact, automatic reset. G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve) pressure connection; DIN 43650-A / EN 175301-803-A plug (cable entry per datasheet). Anodized aluminium housing, IP65 enclosure, ambient -40 °C to 85 °C. Max. working pressure 15 bar (220 psig), burst 30 bar. EAN 5702423218349.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 061B201566
- Type designation
- MBC 5000-1011-0DB04
- Product
- MBC 5000 block-type pressure switch
- Category
- Sensors & Instrumentation — Pressure Switches
- Sensing element
- Bellows
- Regulation (setting) range
- -0.2 bar to 1 bar
- Differential at min/max setting
- 0.3 bar to 0.45 bar
- Reset
- automatic
- Contact system
- SPDT (single-pole changeover)
- Contact rating
- AC15=0.5 A, 250 V DC13=12 W, 125 V
- Pressure connection
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Electrical connection
- DIN 43650-A / EN 175301-803-A plug (cable entry per datasheet)
- Max. working pressure
- 15 bar (220 psig)
- Max. test pressure
- 15 bar
- Burst pressure
- 30 bar
- Enclosure rating
- IP65 (EN 60529)
- Ambient temperature
- -40 °C to 85 °C
- Housing
- anodized AlMgSi1 (AW-6082T6) aluminium; plug fixture glass-filled PA 6.6
- Wetted sensing element
- stainless steel 1.4306 (AISI 304) bellows
- EAN
- 5702423218349
- HS code
- 9026.20
Standards & Compliance
- Size / Series
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Material
- Stainless steel 1.4306 (AISI 304) bellows; anodized AlMgSi1 aluminium housing; IP65 enclosure
- Thread Standard
- G 1/4 in female (ISO 228-1) with flange connection (accepts MBV test valve)
- Pressure Rating
- max. working pressure 15 bar (220 psig); test 15 bar; burst 30 bar
- Temperature Range
- -40 °C to 85 °C ambient
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
MBC 5000 is part of the Danfoss MBC block system; the flanged (D-type) pressure connection accepts an MBV test valve for in-service checking. Stainless steel bellows element suits media compatible with stainless steel (air, neutral gases, oil, water). Distinct from other MBC codes by range × sensing element × pressure connection × plug entry — verify the full type designation MBC 5000-1011-0DB04.
Product Documentation
More from Danfoss
Danfoss

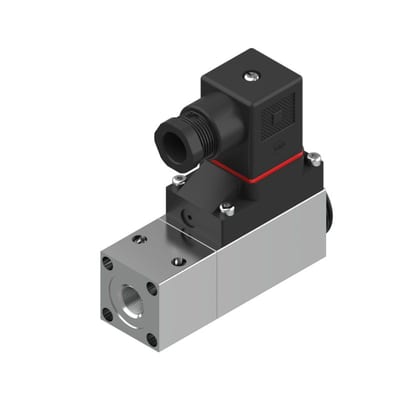

Danfoss MBC 5000-1011-XCB04 block-type pressure switch, -0.2 bar to 1 bar, SPDT, automatic reset, G1/4, M16 plug
061B202466
Danfoss

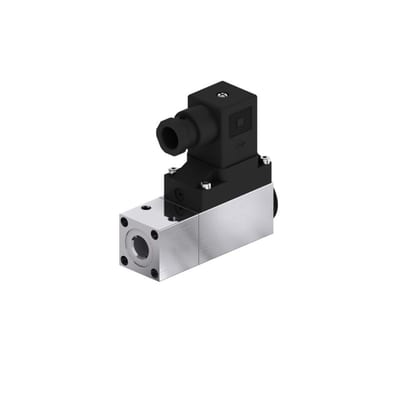

Danfoss MBC 5000-1411-XCB04 block-type pressure switch, -0.2 bar to 10 bar, SPDT, automatic reset, G1/4, M16 plug
061B202566
Danfoss

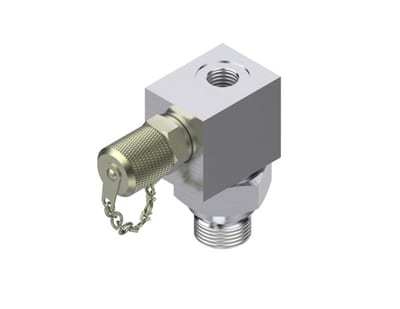

Danfoss MBV 3000-11 test valve, G1/2 process × G1/4 gauge, M16×2 MiniMess test point, 0–120 bar
