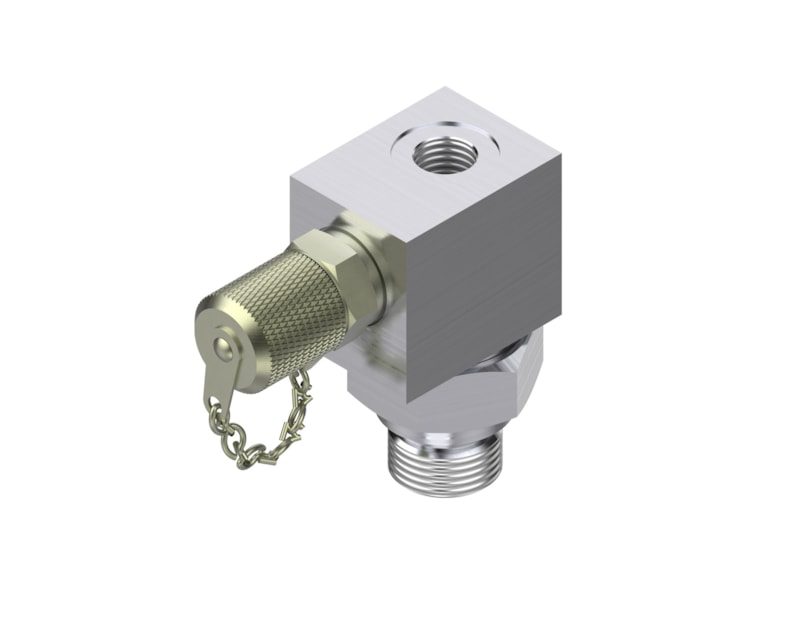

Danfoss MBV 3000-11S test valve, G1/2 process × G1/4 gauge, M16×2 MiniMess test point, 0–120 bar, stainless

Danfoss MBV 3000-11S test valve, genuine OEM code number 061B6110. Block-mounting pressure test/gauge valve from the Danfoss MBV 3000 range: it isolates and connects a pressure gauge or test gauge to a pressurised line for in-service pressure measurement without shutting the system down. Process connection G 1/2 in female (DIN 3852-E, ISO 228-1), gauge connection G 1/4 in (DIN 3852-X), and a separate M16×2 (MiniMess test point) for a MiniMess test hose (MiniMess coupling included). Inlet pressure range 0 bar to 120 bar, ambient -20 °C to 120 °C. Stainless-steel variant (type designation suffix S). Net weight 0.508 Kilogram. EAN 5702428008761.

Brand

Danfoss

Part number (code number)

061B6110

Type designation

MBV 3000-11S

Product

MBV 3000 test valve (block-mounting pressure test/gauge valve)

Product group

Shut-off and regulating valves

Category

Measurement & Inspection Tools — Pressure Test Equipment

Process (pressure) connection

G 1/2 in female (DIN 3852-E, ISO 228-1)

Gauge (output) connection

G 1/4 in (DIN 3852-X)

Test connection

M16×2 (MiniMess test point)

Test function

separate (MiniMess included)

Inlet pressure range (Pi)

0 bar to 120 bar

Ambient temperature

-20 °C to 120 °C

Body

stainless steel (S variant)

Net weight

0.508 Kilogram

EAN

5702428008761

HS code

8481.80

Type

MBV 3000

Ambient temperature range [°C] [max]

120 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

248 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

EAC

China RoHS compliance

Yes

EU RoHS compliance

Yes

MiniMess included

Yes

Number of inputs [pc]

1 pc

Number of outputs [pc]

1 pc

Output connection size

1/4

Output connection standard

DIN 3852X

Output connection type

G

Pressure connection size

1/2

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Female

Pressure range (Pi) [bar] [max]

120 bar

Pressure range (Pi) [bar] [min]

0 bar

Pressure thread conn standard

ISO 228-1

Pulse-snubber

No

REACH Candidate List substances

No

Specification key

MBV 3000-11S

Test pressure connection size

16 x 2

Test pressure connection type

M

Size / Series

G 1/2 in female (DIN 3852-E, ISO 228-1)

Material

Stainless steel (MBV 3000 S variant)

Thread Standard

G 1/2 in female (DIN 3852-E, ISO 228-1)

Pressure Rating

inlet pressure range 0 bar to 120 bar

Temperature Range

-20 °C to 120 °C ambient

HS Code

8481.80
