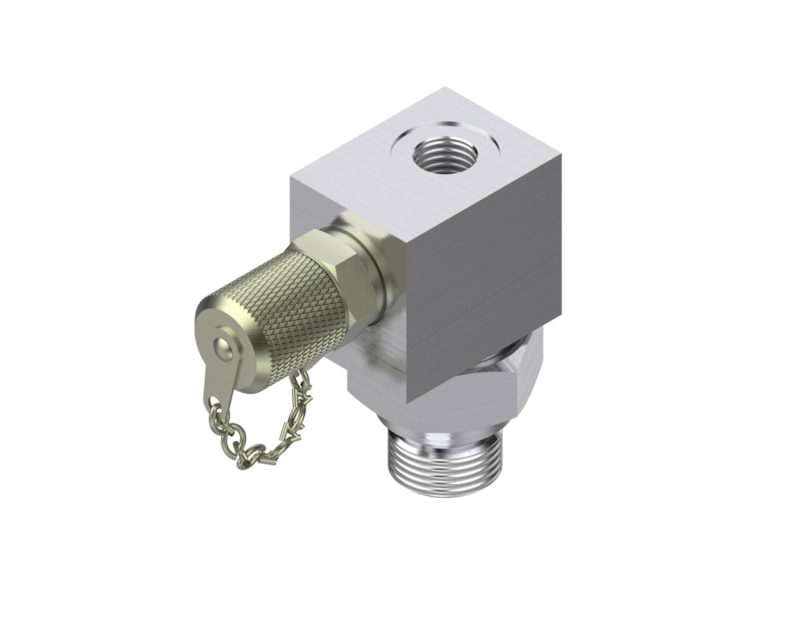

Danfoss MBV 3000-11 test valve, G1/2 process × G1/4 gauge, M16×2 MiniMess test point, 0–120 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBV 3000-11 test valve, genuine OEM code number 061B6100. Block-mounting pressure test/gauge valve from the Danfoss MBV 3000 range: it isolates and connects a pressure gauge or test gauge to a pressurised line for in-service pressure measurement without shutting the system down. Process connection G 1/2 in female (DIN 3852-E, ISO 228-1), gauge connection G 1/4 in (DIN 3852-X), and a separate M16×2 (MiniMess test point) for a MiniMess test hose (MiniMess coupling included). Inlet pressure range 0 bar to 120 bar, ambient -20 °C to 120 °C. Steel-body standard variant. Net weight 0.266 Kilogram. EAN 5702423208340.
Technical Specifications
- Brand
- Danfoss
- Part number (code number)
- 061B6100
- Type designation
- MBV 3000-11
- Product
- MBV 3000 test valve (block-mounting pressure test/gauge valve)
- Product group
- Shut-off and regulating valves
- Category
- Measurement & Inspection Tools — Pressure Test Equipment
- Process (pressure) connection
- G 1/2 in female (DIN 3852-E, ISO 228-1)
- Gauge (output) connection
- G 1/4 in (DIN 3852-X)
- Test connection
- M16×2 (MiniMess test point)
- Test function
- separate (MiniMess included)
- Inlet pressure range (Pi)
- 0 bar to 120 bar
- Ambient temperature
- -20 °C to 120 °C
- Body
- steel
- Net weight
- 0.266 Kilogram
- EAN
- 5702423208340
- HS code
- 8481.80
- Type
- MBV 3000
- Ambient temperature range [°C] [max]
- 120 °C
- Ambient temperature range [°C] [min]
- -20 °C
- Ambient temperature range [°F] [max]
- 248 °F
- Ambient temperature range [°F] [min]
- -4 °F
- Approval
- EAC
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- MiniMess included
- Yes
- Number of inputs [pc]
- 1 pc
- Number of outputs [pc]
- 1 pc
- Output connection size
- 1/4
- Output connection standard
- DIN 3852X
- Output connection type
- G
- Pressure connection size
- 1/2
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range (Pi) [bar] [max]
- 120 bar
- Pressure range (Pi) [bar] [min]
- 0 bar
- Pressure thread conn standard
- ISO 228-1
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Specification key
- MBV 3000-11
- Test pressure connection size
- 16 x 2
- Test pressure connection type
- M
Standards & Compliance
- Size / Series
- G 1/2 in female (DIN 3852-E, ISO 228-1)
- Material
- Steel body; M16×2 MiniMess test point
- Thread Standard
- G 1/2 in female (DIN 3852-E, ISO 228-1)
- Pressure Rating
- inlet pressure range 0 bar to 120 bar
- Temperature Range
- -20 °C to 120 °C ambient
- HS Code
- 8481.80
Compatibility & Fitment
MBV 3000 test valves let a gauge be fitted/removed on a live line via the MiniMess test point. The -11S code is the stainless-steel variant of the -11; select the body material for the medium and environment. Pairs with Danfoss MBC / pressure-gauge installations. Distinct MBV codes differ by body material and connection — verify the full type designation MBV 3000-11.
