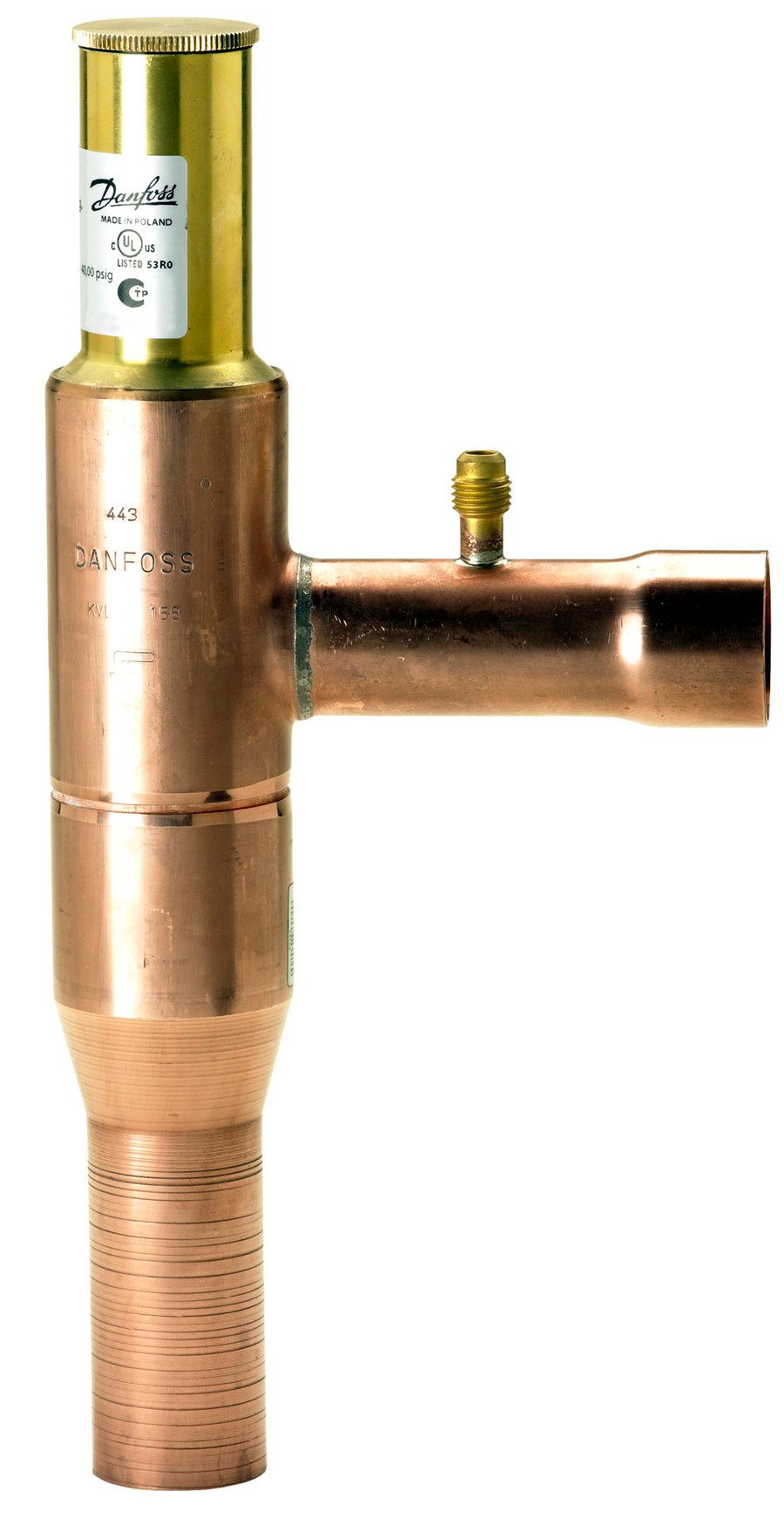

Danfoss KVL 28 crankcase pressure regulator — 1 1/8 in ODF solder solder, 0.2 – 6 bar, code
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss KVL 28 crankcase pressure regulator (code 034L0046) from the Danfoss KVL range of mechanical, self-acting pressure regulating valves for commercial and light-industrial refrigeration. The KVL is installed in the suction line ahead of the compressor and limits the crankcase (suction) pressure to the compressor. It throttles the suction pressure during pull-down after start-up, after hot-gas defrost or after a prolonged standstill, protecting the compressor motor against overload from an excessive suction pressure. This SKU has 1 1/8 in ODF solder ODF solder connections (inlet and outlet), a regulating range of 0.2 – 6 bar (3 – 87 psig) and a maximum working pressure of 18 bar (260 psig); media temperature range -60 to 130 C (-76 to 266 F). Compact angle-design valve with hermetic brazed construction and a stainless-steel bellows; the setpoint is adjustable on the top spindle under a sealing cap and a 1/4 in Schrader valve is provided for pressure testing. Suitable for HFC/HFO refrigerants. UL listed (C UL US), EAC and RoHS. Price on quote.
Technical Specifications
- Type
- Crankcase pressure regulator, KVL 28
- Code number
- 034L0046
- Series
- Danfoss KVL mechanical pressure regulating valve
- Function
- Crankcase / suction pressure limiting, modulating
- Connection
- 1 1/8 in ODF solder ODF solder, inlet and outlet
- Connection type
- Solder, ODF
- Regulating range
- 0.2 – 6 bar (3 – 87 psig)
- Max. working pressure (PB/MWP)
- 18 bar (260 psig)
- Media temperature range
- -60 to 130 C (-76 to 266 F)
- Body design
- Compact angle design, hermetic brazed construction, stainless-steel bellows
- Pressure test port
- 1/4 in Schrader valve
- Applicable refrigerants
- R1234yf, R1234ze(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A
- Conformity assessment
- PED category Art. 4, par. 3 (sound engineering practice)
- Approvals
- UL (C UL US Listed), EAC, RoHS, RoHS China
- Net weight
- 0.865 kg
- Gross weight
- 1.014 kg
- EAN
- 5702428411745
- Product group
- Press. and temp. regul. valves
- Approval
- C UL US LISTED
- Approval file name
- REFRIGERANT VALVE 53R0
- China RoHS compliance
- Yes
- Connection Code
- (3002:X:29)
- Customer part number
- 00A387
- Cv value [gal/min]
- 9.25 gal/min
- EU RoHS compliance
- Yes
- Factory setting [bar]
- 2 bar
- Factory setting [psig]
- 29 psig
- Flow direction indicator
- Engraved 1-way arrow
- Identical product
- 034L1066
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 1 1/8 in
- Kv value [m³/h]
- 8 m³/h
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar]
- 19.8 bar
- Max. test pressure [psig]
- 286 psig
- Max. Working Pressure [bar]
- 18 bar
- Max. Working Pressure [psig]
- 260 psig
- Medium temperature range [°C] [max]
- 130 °C
- Medium temperature range [°C] [min]
- -60 °C
- Medium temperature range [°F] [max]
- 266 °F
- Medium temperature range [°F] [min]
- -76 °F
- Oil free refrigerants
- R1234ze(E)
- Other RoHS documentation
- EAEU RoHS
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1 1/8 in
- P band max. [bar]
- 1.5 bar
- P band max. [psi]
- 22 psi
- Rated cap. R404A/R507A [kW]
- 15.9 kW
- Rated cap. R404A/R507A [TR]
- 3.4 TR
- Rated capacity R134a [kW]
- 13.2 kW
- Rated capacity R134a [TR]
- 2.6 TR
- Rated capacity R22 [kW]
- 17.8 kW
- Rated capacity R22 [TR]
- 4.1 TR
- Rated capacity R407C [kW]
- 16.4 kW
- Rated capacity R407C [TR]
- 3.8 TR
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Regulation range [bar] [max]
- 6 bar
- Regulation range [bar] [min]
- 0.2 bar
- Regulation range [psig] Pe [max]
- 87 psig
- Regulation range [psig] Pe [min]
- 3 psig
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- Standard
- Danfoss KVL
- Size / Series
- 1 1/8
- Material
- Steel body, stainless steel bellows; copper ODF connection stubs
- Pressure Rating
- 18 bar (260 psig)
- Temperature Range
- -60 to 130 C (-76 to 266 F)
- HS Code
- 8481.10
Compatibility & Fitment
Select a KVL by body size (KVL 12 / 15 / 22 / 28 / 35), connection type (flare or ODF solder) and connection size. Flare and ODF-solder versions, and inch versus metric ODF stubs, are separate code numbers with separate EANs — confirm the connection before ordering. The maximum permitted crankcase pressure is adjustable on the top spindle under the sealing cap.
Product Documentation
More from Danfoss
Danfoss

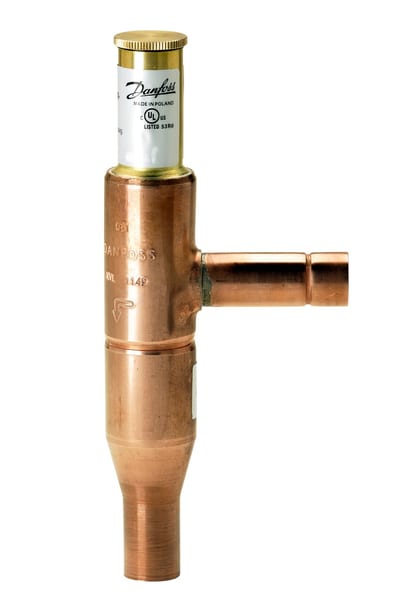

Danfoss KVL 12 crankcase pressure regulator — 12 mm ODF solder solder, 0.2 – 6 bar, code
034L0048
Danfoss
Danfoss KVL 15 crankcase pressure regulator — 16 mm (5/8 in) ODF solder solder, 0.2 – 6 bar, code
034L0049
Danfoss

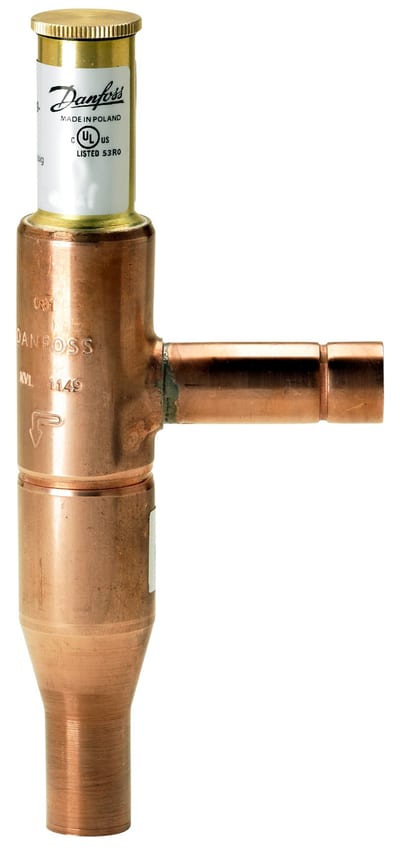

Danfoss KVL 28 crankcase pressure regulator — 28 mm ODF solder solder, 0.2 – 6 bar, code
034L0051
Danfoss
Danfoss KVL 35 crankcase pressure regulator — 35 mm (1 3/8 in) ODF solder solder, 0.2 – 6 bar, code
034L0052
Danfoss
Danfoss KVL 22 crankcase pressure regulator — 22 mm (7/8 in) ODF solder solder, 0.2 – 6 bar, code 034L0058
Danfoss
Danfoss KVR 12 condensing pressure controller — 12 mm (1/2 in) flare, 5 – 17.5 bar, code
034L0091
Danfoss

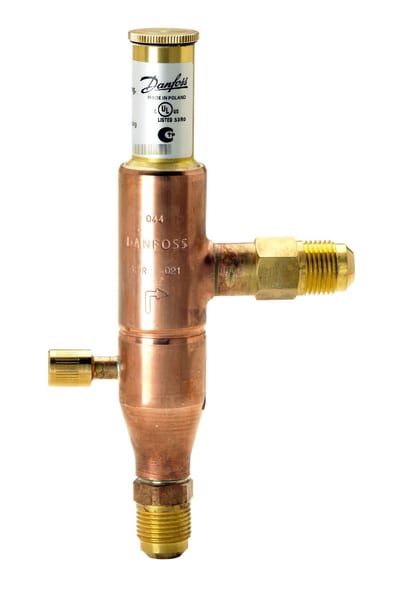

Danfoss KVR 15 condensing pressure controller — 16 mm (5/8 in) flare, 5 – 17.5 bar, code
034L0092
Danfoss

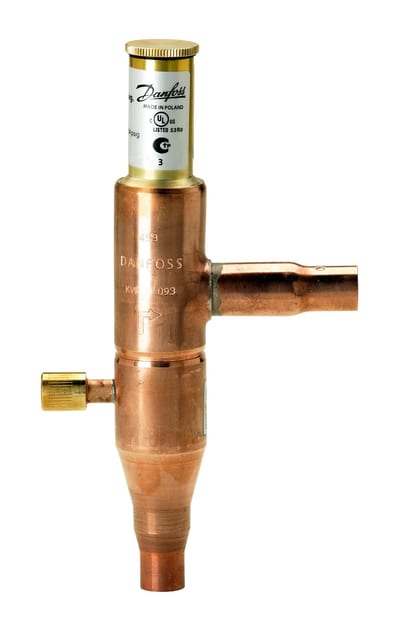

Danfoss KVR 12 condensing pressure controller — 1/2 in ODF solder solder, 5 – 17.5 bar, code
