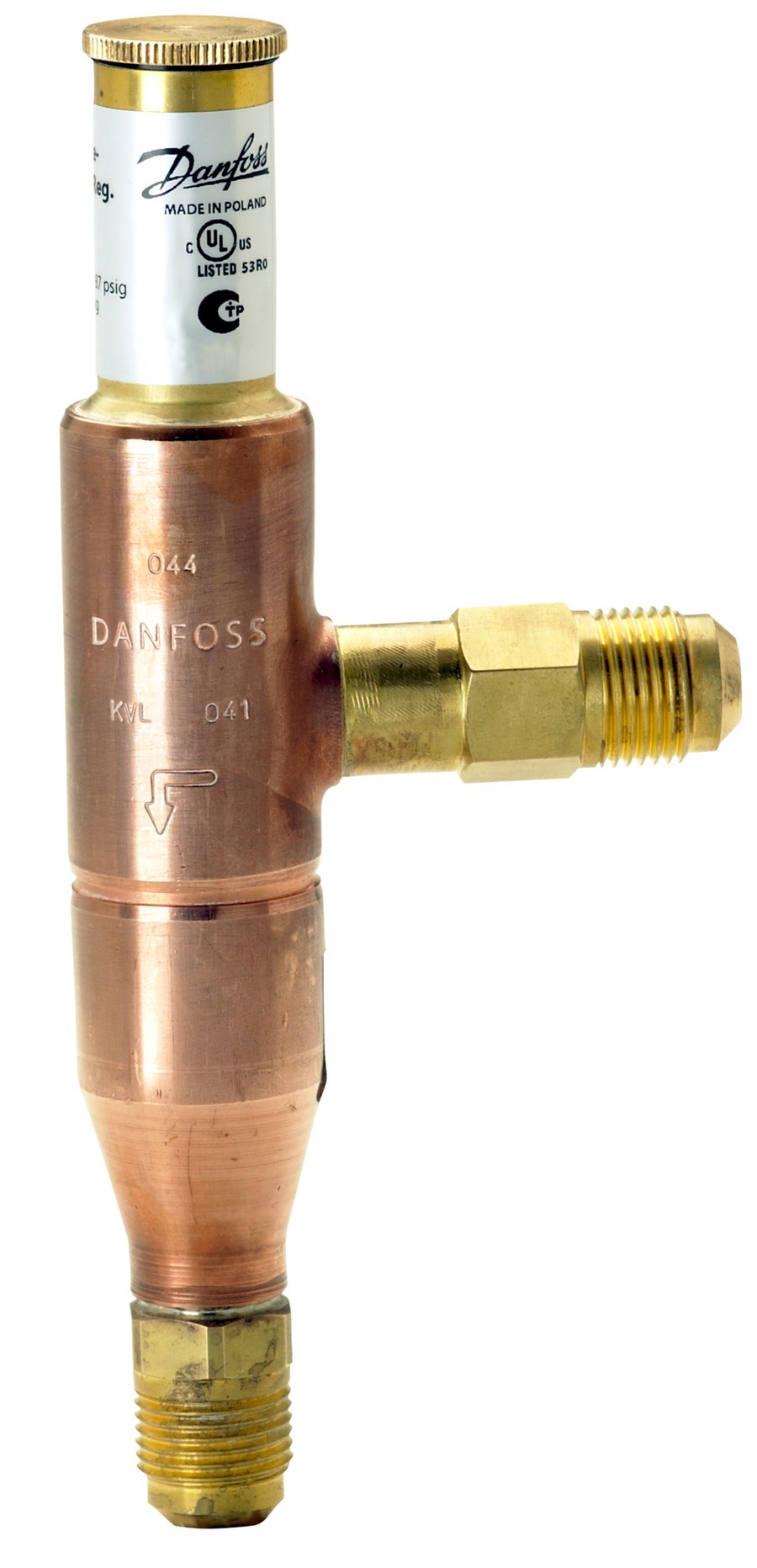

Danfoss KVL 12 crankcase pressure regulator — 12 mm (1/2 in) flare, 0.2 – 6 bar, code

Danfoss KVL 12 crankcase pressure regulator (code 034L0041) from the Danfoss KVL range of mechanical, self-acting pressure regulating valves for commercial and light-industrial refrigeration. The KVL is installed in the suction line ahead of the compressor and limits the crankcase (suction) pressure to the compressor. It throttles the suction pressure during pull-down after start-up, after hot-gas defrost or after a prolonged standstill, protecting the compressor motor against overload from an excessive suction pressure. This SKU has 12 mm (1/2 in) flare connections (inlet and outlet), a regulating range of 0.2 – 6 bar (3 – 87 psig) and a maximum working pressure of 18 bar (260 psig); media temperature range -60 to 130 C (-76 to 266 F). Compact angle-design valve with hermetic brazed construction and a stainless-steel bellows; the setpoint is adjustable on the top spindle under a sealing cap and a 1/4 in Schrader valve is provided for pressure testing. Suitable for HFC/HFO refrigerants. UL listed (C UL US), EAC and RoHS. Price on quote.

Type

Crankcase pressure regulator, KVL 12

Code number

034L0041

Series

Danfoss KVL mechanical pressure regulating valve

Function

Crankcase / suction pressure limiting, modulating

Connection

12 mm (1/2 in) flare, inlet and outlet

Connection type

Flare

Regulating range

0.2 – 6 bar (3 – 87 psig)

Max. working pressure (PB/MWP)

18 bar (260 psig)

Media temperature range

-60 to 130 C (-76 to 266 F)

Body design

Compact angle design, hermetic brazed construction, stainless-steel bellows

Pressure test port

1/4 in Schrader valve

Applicable refrigerants

R1234yf, R1234ze(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R448A, R449A, R449B, R450A, R452A, R454A, R454C, R455A, R507A, R513A, R515B, R516A

Conformity assessment

PED category Art. 4, par. 3 (sound engineering practice)

Approvals

UL (C UL US Listed), EAC, RoHS, RoHS China

Net weight

0.38 kg

Gross weight

0.44 kg

EAN

5702428411783

Product group

Press. and temp. regul. valves

Approval

C UL US LISTED

Approval file name

REFRIGERANT VALVE 53R0

China RoHS compliance

Yes

Connection Code

(3011:X:13)

Customer part number

00V071

Cv value [gal/min]

3.7 gal/min

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Factory setting [bar]

2 bar

Factory setting [psig]

29 psig

Flow direction indicator

Engraved 1-way arrow

Inlet connection type

Flare

Inlet size [in]

1/2 in

Inlet size [mm]

12 mm

Kv value [m³/h]

3.2 m³/h

Lubricants compatibility

Oilfree applications

Max. test pressure [bar]

19.8 bar

Max. test pressure [psig]

286 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

260 psig

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-60 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-76 °F

Oil free refrigerants

R1234ze(E)

Other RoHS documentation

EAEU RoHS

Outlet connection type

Flare

Outlet size [in]

1/2 in

Outlet size [mm]

12 mm

P band max. [bar]

2 bar

P band max. [psi]

29 psi

Rated cap. R404A/R507A [kW]

6.3 kW

Rated cap. R404A/R507A [TR]

1 TR

Rated capacity R134a [kW]

5.3 kW

Rated capacity R134a [TR]

0.8 TR

Rated capacity R22 [kW]

7.1 kW

Rated capacity R22 [TR]

1.2 TR

Rated capacity R407C [kW]

6.5 kW

Rated capacity R407C [TR]

1.1 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf

Regulation range [bar] [max]

6 bar

Regulation range [bar] [min]

0.2 bar

Regulation range [psig] Pe [max]

87 psig

Regulation range [psig] Pe [min]

3 psig

UL approved refrigerants

R134a

UL mark

Yes

Standard

Danfoss KVL

Size / Series

12 mm

Material

Steel body, stainless steel bellows; copper ODF connection stubs

Pressure Rating

18 bar (260 psig)

Temperature Range

-60 to 130 C (-76 to 266 F)

HS Code

8481.10
