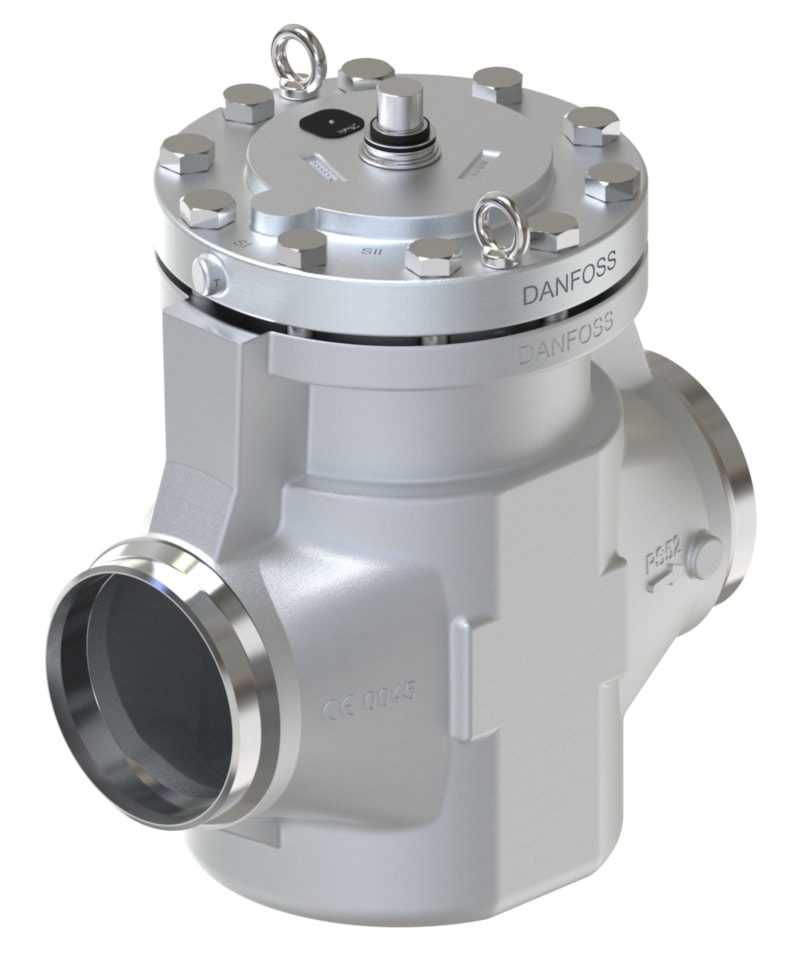

Danfoss motor-operated valve ICM 150 (steel, 150 mm butt weld)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICM 150 motor-operated flow-control valve (code 027H7170). Steel body, 150 mm butt-weld connections, for industrial refrigeration; operated by the Danfoss ICAD actuator. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- motor-operated flow-control valve (Flexline)
- Model
- ICM 150
- Code number
- 027H7170
- Connection
- 150 mm butt weld (inlet and outlet), EN 10220
- Kv value
- 370 m³/h; Cv value: 429.2 gal/min
- Maximum working pressure
- 52 bar / 754 psig
- Maximum opening pressure differential (MaxOPD)
- 20 bar / 271 psig
- Temperature range
- -60 °C to 120 °C (-76 °F to 248 °F)
- Body material
- steel; connection material: steel; surface coating: Zn (TLP)
- Opening/closing time
- 45 s
- Media
- HFC/HCFC refrigerants, R717 (ammonia), R744 (CO2), R1234ze(E) and others; oil-free applications
- Net weight
- 126 kg; gross weight: 130 kg
- EAN
- 5702428229616
- Compliance
- EU RoHS (no exemption clause), China RoHS (no exemption clause); no REACH Candidate List substances
- Product group
- Press. and temp. regul. valves
- Actuator system
- ICAD motor, magnet coupling
- Approval
- CE 0045
- China RoHS compliance
- Yes
- Comments
- ICV 150 150 DIN
- Connection Code
- (2001:D45:150)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 429.2 gal/min
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 370 m³/h
- Lubricants compatibility
- Oilfree applications
- Manual operation option
- Via ICAD setting
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MaxOPD [bar]
- 20 bar
- MaxOPD [psig]
- 271 psig
- Oil free refrigerants
- R1234ze(E)
- Open/close time [s]
- 45 s
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve operation
- Motor operated
- Valve version
- Standard version
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar / 754 psig
- Temperature Range
- -60 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Operated by the Danfoss ICAD motor actuator (ordered separately). Confirm valve size (ICM 150), connection (150 mm butt weld) and refrigerant before ordering.
