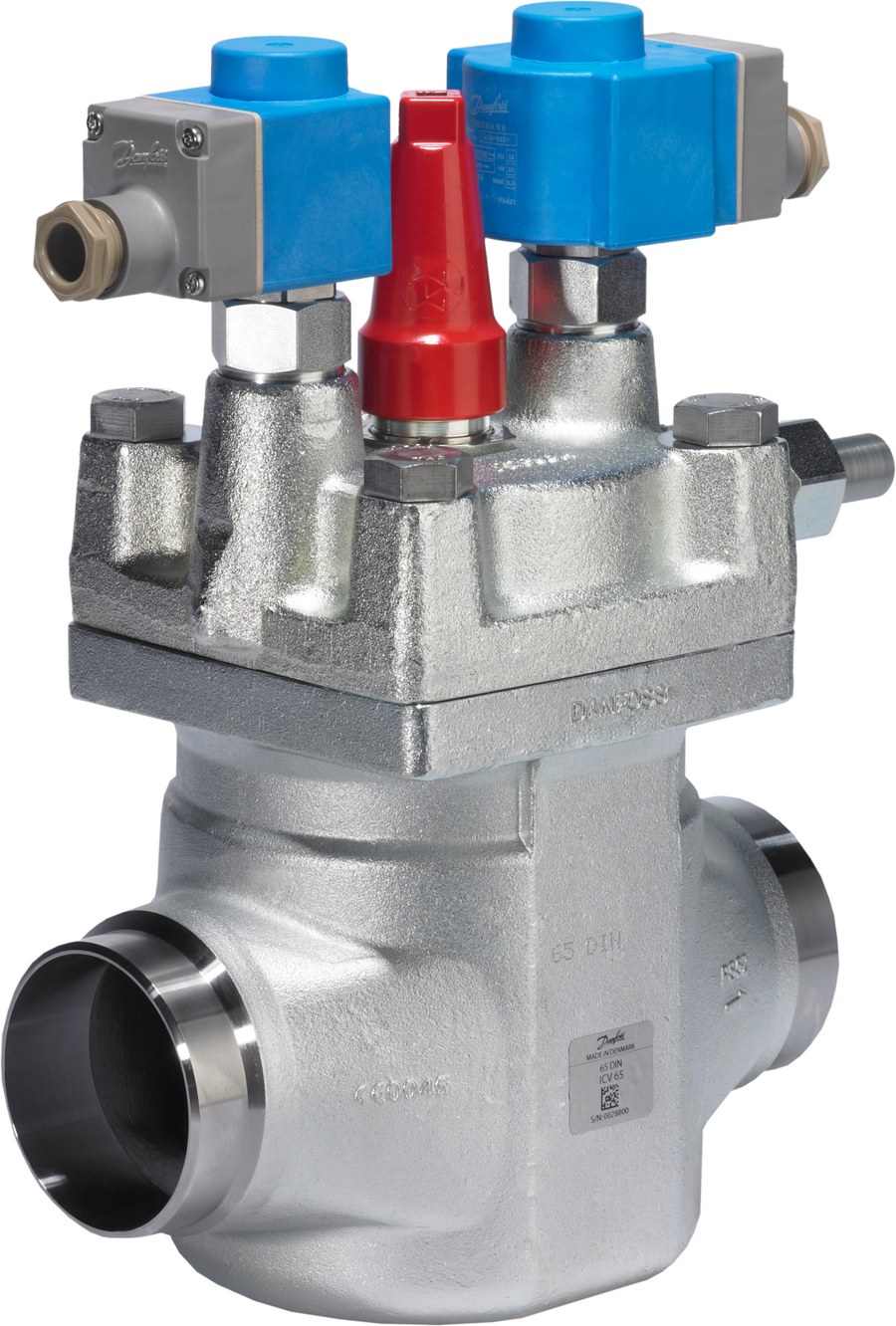

Danfoss ICLX 80 two-step solenoid valve, butt weld EN 10220, 80 mm (3 in) (code 027H8040)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICLX 80 two-step (pilot-operated) solenoid valve (code 027H8040) (ICLX 65 valve body fitted with 80 mm connections), steel, with butt weld EN 10220 connections, port size 80 mm (3 in). Kv 82 m3/h, maximum working pressure 65 bar (943 psig); media temperature -60 to +120 C. Two-step opening for high differential-pressure duties such as hot-gas defrost in industrial refrigeration; coils ordered separately. Suitable for a range of refrigerants including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027H8040
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
Compatibility
Two-step solenoid valve for high differential-pressure duties (e.g. hot-gas defrost) in industrial refrigeration. Coils ordered separately. butt weld EN 10220 connection, Kv 82 m3/h. Verify refrigerant compatibility, the pipe weld standard (EN 10220) and required Kv against your duty before ordering.
Standards
Approvals
