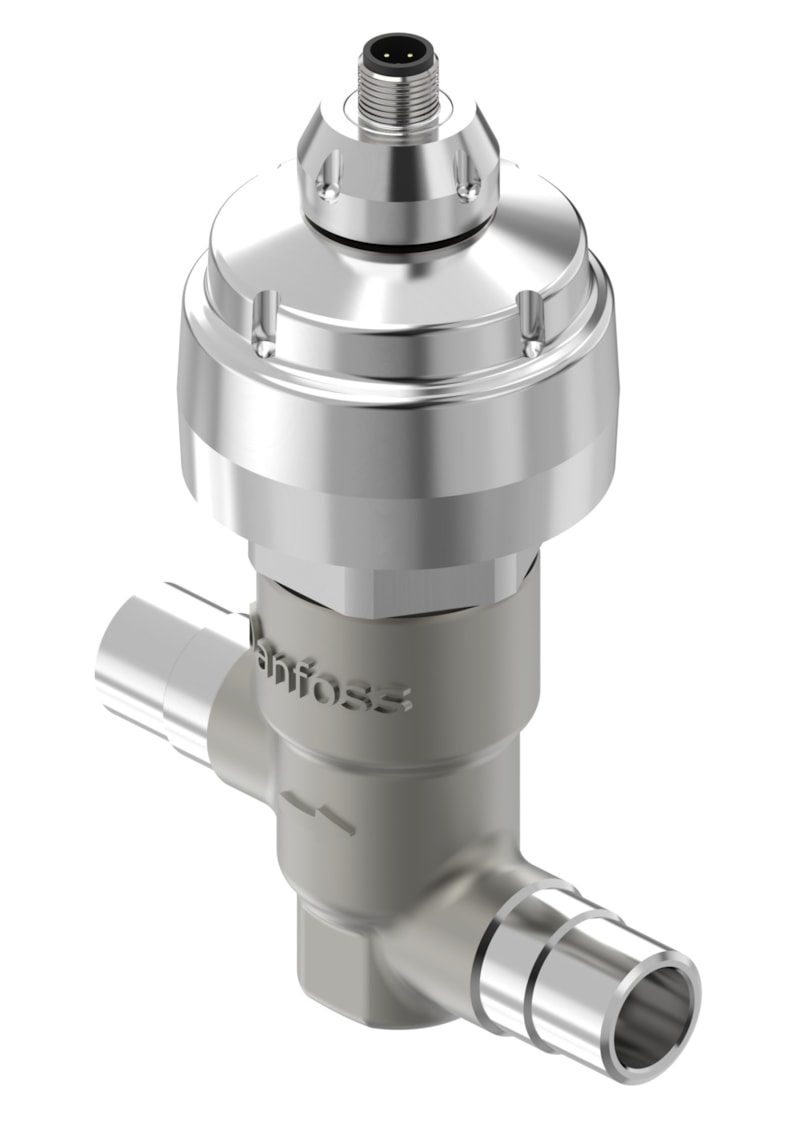

Danfoss CCMT 8 electric regulating valve, solder ODF 5/8 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CCMT 8 electric regulating valve (code 027H7202), part of the Colibri electrically operated valve range. Solder ODF 5/8 in / weld 1/2 in connections; Kv 0.928 m3/h, maximum working pressure 140 bar. Motor-operated for capacity regulation; suitable for R744 (CO2), R410A, R134a and R1234yf. Actuator drive and controller ordered separately.
Technical Specifications
- Type
- CCMT 8 electric regulating valve
- Code number
- 027H7202
- Connection type
- solder, ODF
- Solder connection size
- 5/8 in
- Weld connection size
- 1/2 in
- Kv value
- 0.928 m3/h
- Maximum working pressure
- 140 bar
- Valve operation
- electrically (motor) operated
- Net weight
- 1.626 kg; gross weight: 1.888 kg
- Refrigerants
- R744, R410A, R134a, R1234yf
- Approvals
- UL
- REACH candidate substance
- Lead (CAS 7439-92-1)
- EAN
- 5702428453356
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 60 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 140 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- LLC CDC EURO-TYSK
- China RoHS compliance
- Out of scope
- Connection Code
- (2501:D23:15); (3002:X:16)
- Connection Solder size [in]
- 5/8 in
- Connection standard
- EN10220
- Connection Weld size [in]
- 1/2 in
- Cv value [gal/min]
- 0.928 gal/min
- Diff.press.setting range [bar]
- 90 bar
- Diff.press.setting range [psi]
- 1305 psi
- EU RoHS compliance
- Out of scope
- Kv value [m³/h]
- 0.928 m³/h
- Max. Working Pressure [bar]
- 140 bar
- Max. Working Pressure [psig]
- 2030 psig
- MaxOPD [bar]
- 90 bar
- MaxOPD [psig]
- 1305 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 60 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 140 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- Pressure Rating
- 140 bar
- HS Code
- 8481.80
Compatibility & Fitment
CCMT 8 electric regulating valve for capacity control. Confirm Kv (0.928 m3/h), MWP (140 bar) and refrigerant against your duty; the matching ICAD/CCM actuator drive and controller are ordered separately.
