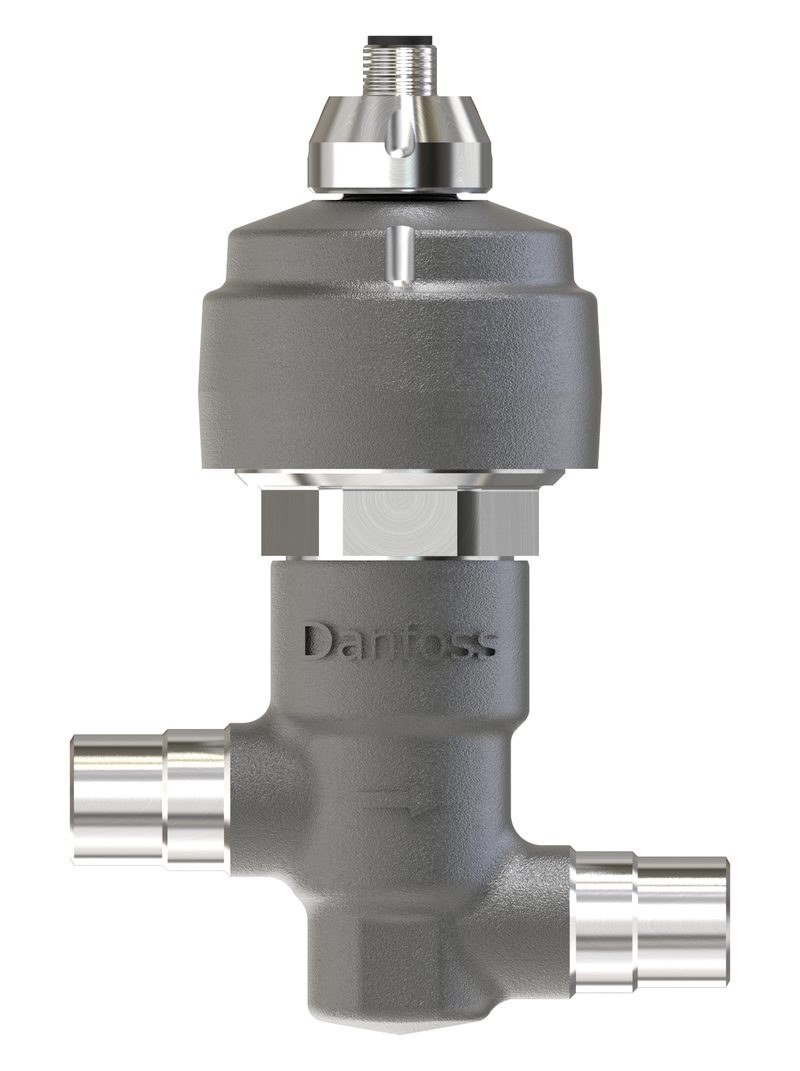

Danfoss CCMT 2 electric regulating valve, solder ODF 5/8 in (code 027H7200)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss CCMT 2 electric regulating valve (code 027H7200), part of the CCMT motor-operated valve range for transcritical CO2 (R744) and high-pressure refrigeration. Solder ODF 5/8 in / weld 1/2 in connections to EN 10220; Kv 0.17 m3/h, maximum working pressure 140 bar, media temperature -40 to +60 C. Motor-operated for capacity regulation, gas-bypass or expansion duty; suitable for R1234yf, R134a, R410A and R744 (CO2). Actuator drive and controller ordered separately.
Specifications
- Part number
- 027H7200
- HS code
- 8481.80
- Pressure rating
- 140 bar
- Temperature range
- -40 to +60 C
Compatibility
CCMT 2 electric regulating valve for capacity control in transcritical CO2 / high-pressure refrigeration. Confirm Kv (0.17 m3/h), MWP (140 bar) and refrigerant against your duty; the matching ICAD/CCM actuator drive and controller are ordered separately.
Standards
Approvals
