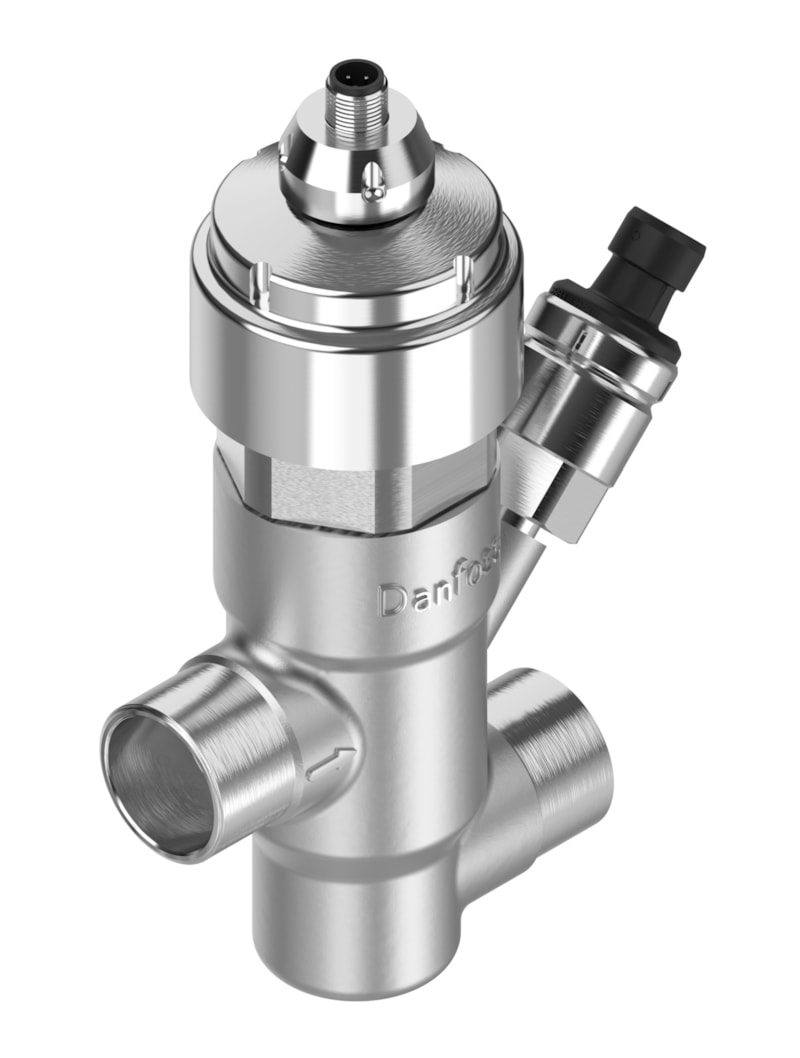

Danfoss CCMT 24 electric regulating valve, solder ODF 1 1/8 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CCMT 24 electric regulating valve (code 027H7232), part of the CCMT motor-operated valve range for transcritical CO2 (R744) and high-pressure refrigeration. Solder ODF 1 1/8 in / weld 1 in connections to EN 10220; Kv 2.4 m3/h, maximum working pressure 140 bar, media temperature -40 to +60 C. Motor-operated for capacity regulation, gas-bypass or expansion duty; suitable for R134a, R410A and R744 (CO2). Actuator drive and controller ordered separately.
Technical Specifications
- Type
- CCMT 24 electric regulating valve
- Code number
- 027H7232
- Connection type
- solder, ODF
- Solder connection size
- 1 1/8 in
- Weld connection size
- 1 in
- Connection standard
- EN 10220
- Kv value
- 2.4 m3/h
- Maximum working pressure
- 140 bar (2030 psig)
- Media temperature range
- -40 to +60 C (-40 to +140 F)
- Valve operation
- electrically (motor) operated
- Net weight
- 2.315 kg; gross weight: 3.026 kg
- Refrigerants
- R134a, R410A, R744
- Approvals
- UL
- REACH candidate substance
- Lead (CAS 7439-92-1)
- EAN
- 5702428921824
- Product group
- Press. and temp. regul. valves
- Ambient temperature range [°C] [max]
- 60 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 140 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- LLC CDC EURO-TYSK
- China RoHS compliance
- Out of scope
- Connection Code
- (2501:D26:25); (3002:X:29)
- Connection Solder size [in]
- 1 1/8 in
- Connection Weld size [in]
- 1 in
- Cv value [gal/min]
- 2.784 gal/min
- Diff.press.setting range [bar]
- 90 bar
- Diff.press.setting range [psi]
- 1305 psi
- EU RoHS compliance
- Out of scope
- Kv value [m³/h]
- 2.4 m³/h
- Max. Working Pressure [bar]
- 140 bar
- Max. Working Pressure [psig]
- 2030 psig
- MaxOPD [bar]
- 90 bar
- MaxOPD [psig]
- 1305 psig
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Temperature range [°C] [max]
- 60 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 140 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- Pressure Rating
- 140 bar
- Temperature Range
- -40 to +60 C
- HS Code
- 8481.80
Compatibility & Fitment
CCMT 24 electric regulating valve for capacity control in transcritical CO2 / high-pressure refrigeration. Confirm Kv (2.4 m3/h), MWP (140 bar) and refrigerant against your duty; the matching ICAD/CCM actuator drive and controller are ordered separately.
