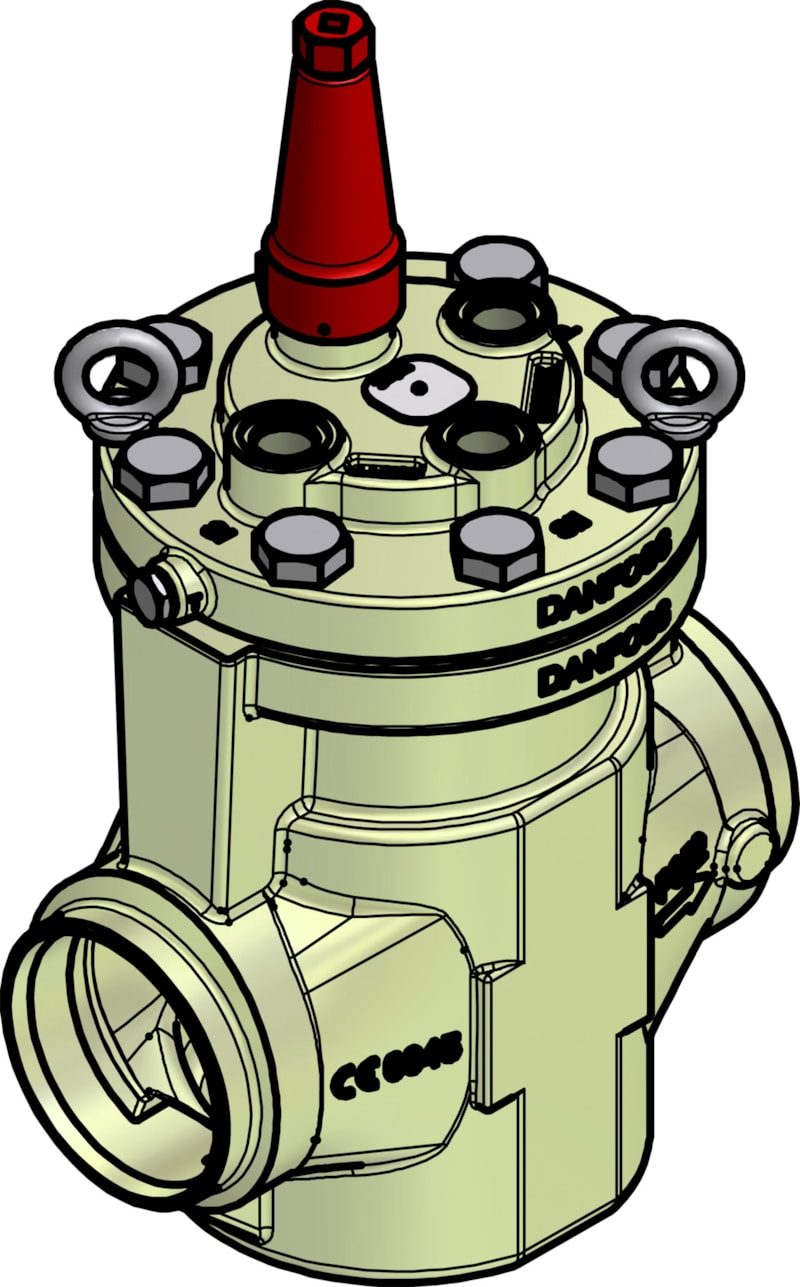

Danfoss pilot-operated servo valve ICS 150 (steel, 150 mm butt weld)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICS 150 pilot-operated servo valve (code 027H7160). Steel body, 150 mm butt-weld connections, for industrial refrigeration; accepts pilot valves for regulation. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- pilot-operated servo valve (Flexline)
- Model
- ICS 150
- Code number
- 027H7160
- Connection
- 150 mm (6 in) butt weld, EN 10220
- Kv value
- 354 m³/h; Cv value: 410.64 gal/min
- Maximum working pressure
- 52 bar / 754 psig
- Temperature range
- -60 °C to 120 °C (-76 °F to 248 °F)
- Body material
- steel; surface coating: Zn (TLP)
- Operation
- pilot-operated (closed; full open at ≥0.2 bar; proportional open 0.07-0.2 bar); manual operation option
- Media
- HFC/HCFC refrigerants, R717 (ammonia), R744 (CO2), R1234ze(E) and others
- Net weight
- 114.85 kg; gross weight: 127 kg
- EAN
- 5702428229647
- Compliance
- EU RoHS, China RoHS; no REACH Candidate List substances
- Product group
- Press. and temp. regul. valves
- Approval
- CE 0045
- China RoHS compliance
- Yes
- Connection Code
- (2001:D45:150)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 410.64 gal/min
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Ext pilot pressure connection
- Weld nipple (P2 Port)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 6 in
- Inlet connection size [mm]
- 150 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 354 m³/h
- Manual operation option
- Manual open spindle
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Opening configuration
- Closed (delta p=0 bar)
- Outlet connection size [in]
- 6 in
- Outlet connection size [mm]
- 150 mm
- Outlet connection type
- Butt weld
- PED category
- III
- Pilot connection configuration
- P: Parallel connection
- Pressure gauge connection
- Int. thread with blind plug
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Top cover
- 3 function modules
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- Valve operation
- Pilot operated
- Valve version
- Standard version
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar / 754 psig
- Temperature Range
- -60 °C to 120 °C
- HS Code
- 8481.80
Compatibility & Fitment
Accepts ICS pilot valves for regulation (ordered separately). Confirm valve size (ICS 150), connection (150 mm butt weld) and refrigerant before ordering.
