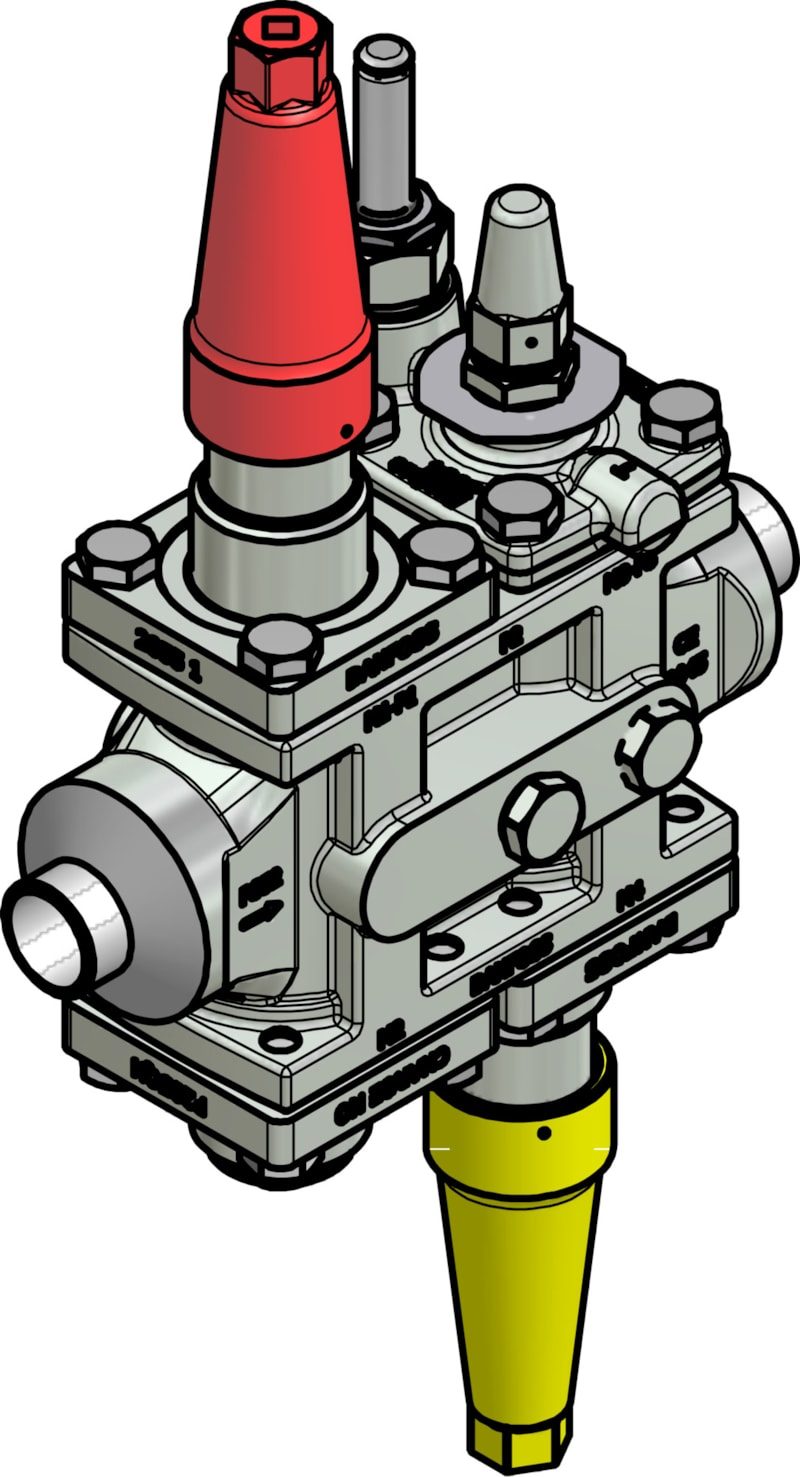

Danfoss ICF 25-4-10RB Flexline valve station, 25 mm, EN 10220 (code 027L4169)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-10RB Flexline valve station (code 027L4169). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B). Connection size 25 mm, connection standard EN 10220 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-10RB Flexline valve station
- Code number
- 027L4169
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B)
- Body material
- Steel
- Surface coating
- zinc (TLP)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 15.858 kg, gross weight 16.569 kg
- Approvals
- CE, EAC, UL, TÜV
- EAN
- 5702428878609
- Net weight
- 15.858 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Manual regulating valve
- Module 4 type
- ICFR 25B
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-4-25DSXFXEHRBXXXX4AXX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-10RB (Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Manual regulating valve (ICFR 25B)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
