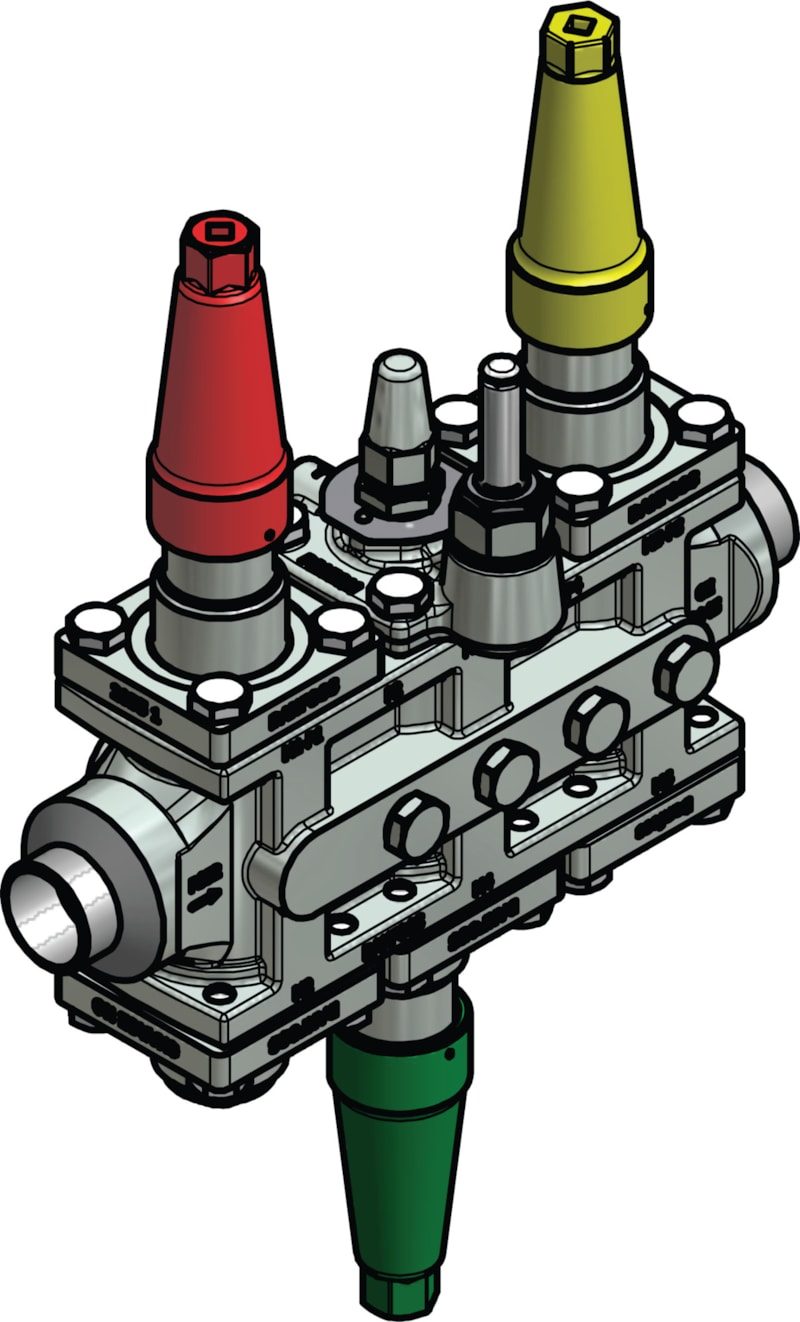

Danfoss ICF SS 25-6-90 Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF SS 25-6-90 Flexline valve station (code 027L4189). The ICF valve station combines several refrigeration control functions in one stainless steel housing — for this configuration: Stop valve (ICFS SS 25), Filter (ICFF SS 25), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25), Manual regulating valve (ICFR SS 25), Welding module (ICFW SS 25). Connection size 25 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF SS 25-6-90 Flexline valve station
- Code number
- 027L4189
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS SS 25), Filter (ICFF SS 25), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25), Manual regulating valve (ICFR SS 25), Welding module (ICFW SS 25)
- Body material
- Stainless steel
- Surface coating
- uncoated
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 23.52 kg, gross weight 23.728 kg
- Approvals
- C-UL-US Listed, CE, EAC
- EAN
- 5702428974448
- Net weight
- 23.52 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Stainless steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS SS 25
- Module 2
- Filter
- Module 2 type
- ICFF SS 25
- Module 3
- Solenoid valve
- Module 3 type
- ICFE SS 25
- Module 4
- Stop/check valve
- Module 4 type
- ICFN SS 25
- Module 5
- Manual regulating valve
- Module 5 type
- ICFR SS 25
- Module 6
- Welding module
- Module 6 type
- ICFW SS 25
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity [pc]
- 6 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-6-25KSXFXEHNXRBW16XXX
- UL approval file name
- REFRIGERANT VALVE 53R0
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF SS 25-6-90 (Stop valve (ICFS SS 25), Filter (ICFF SS 25), Solenoid valve (ICFE SS 25), Stop/check valve (ICFN SS 25), Manual regulating valve (ICFR SS 25), Welding module (ICFW SS 25)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
