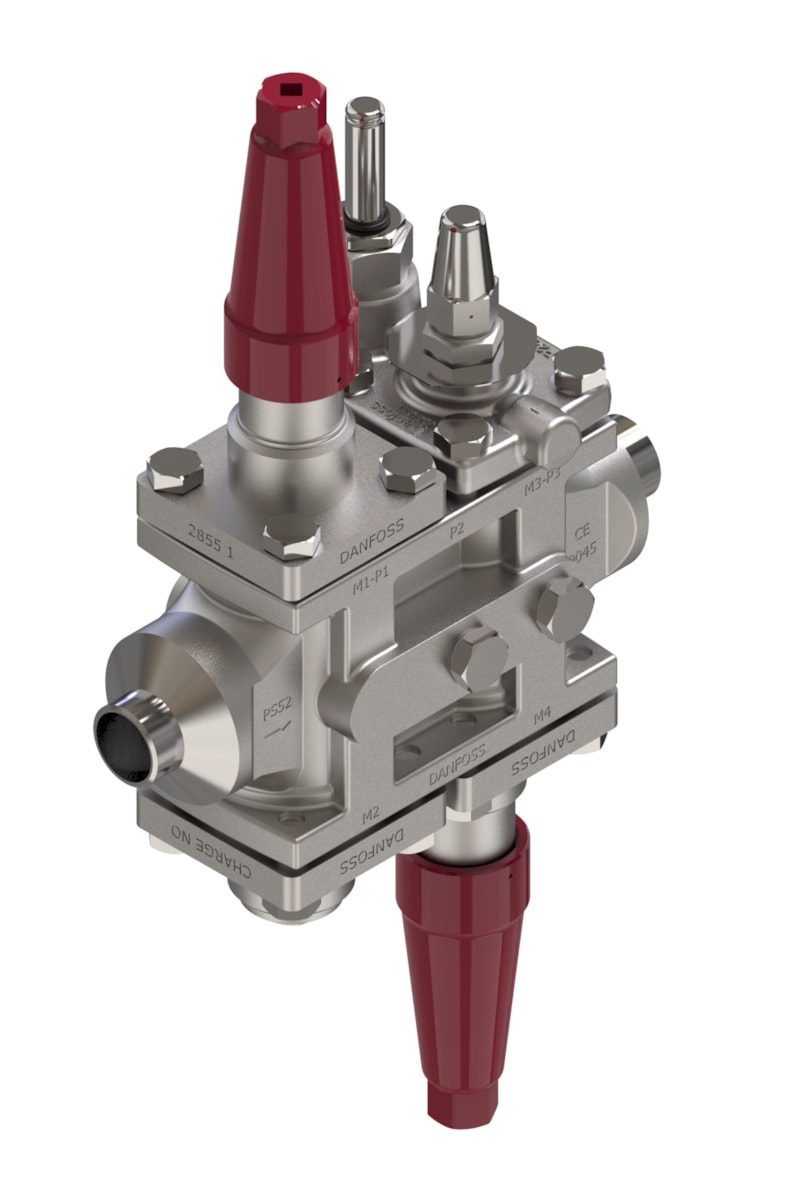

Danfoss ICF 25-4-9 Flexline valve station, 25 mm, ASME B 36.10M SCHEDULE 80
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-9 Flexline valve station (code 027L4183). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Stop valve (ICFS 25). Connection size 25 mm, connection standard ASME B 36.10M SCHEDULE 80 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-9 Flexline valve station
- Code number
- 027L4183
- Connection size
- 25 mm
- Connection standard
- ASME B 36.10M SCHEDULE 80
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Stop valve (ICFS 25)
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 13.806 kg, gross weight 16.81 kg
- Approvals
- CE, EAC, UL
- EAN
- 5715162144466
- Net weight
- 13.806 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Stop valve
- Module 4 type
- ICFS 25
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity [pc]
- 4 pc
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-4-25ASXFXEHSXXXXX49XX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- ASME B 36.10M SCHEDULE 80
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-9 (Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Stop valve (ICFS 25)). The station bolts into a 25 mm line to ASME B 36.10M SCHEDULE 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 25-6-3RA Flexline valve station, 25 mm, ASME B 36.10M SCHEDULE 80
027L4184
Danfoss
Danfoss ICF 25-4-90 Flexline valve station, 40 mm, EN 10220
027L4185
Danfoss

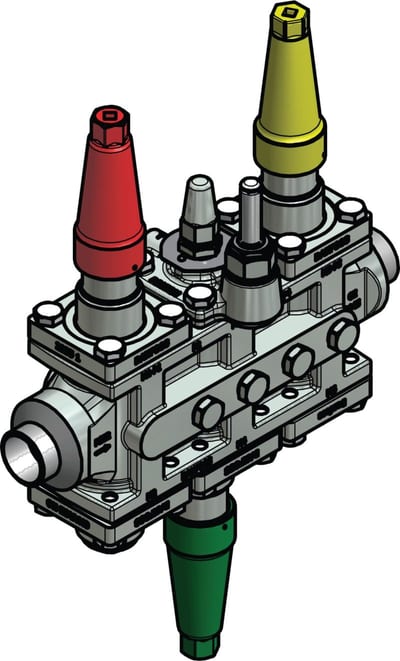

Danfoss ICF SS 25-6-90 Flexline valve station, 25 mm, EN 10220
027L4189
Danfoss

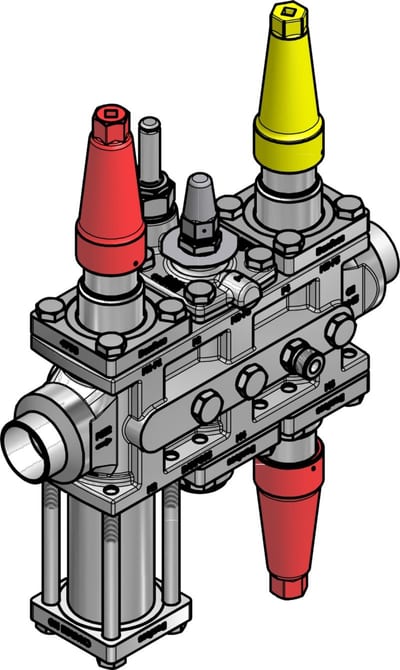

Danfoss ICF SS 25-6-3RB Flexline valve station, 40 mm, EN 10220
027L4191
Danfoss

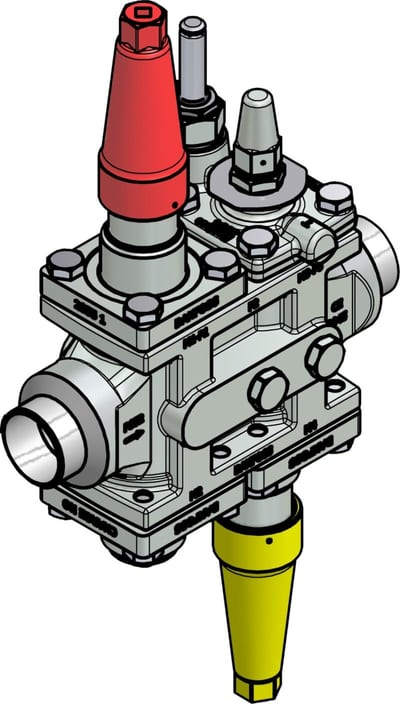

Danfoss ICF 25-4-10RA Flexline valve station, 40 mm, EN 10220
027L4192
Danfoss

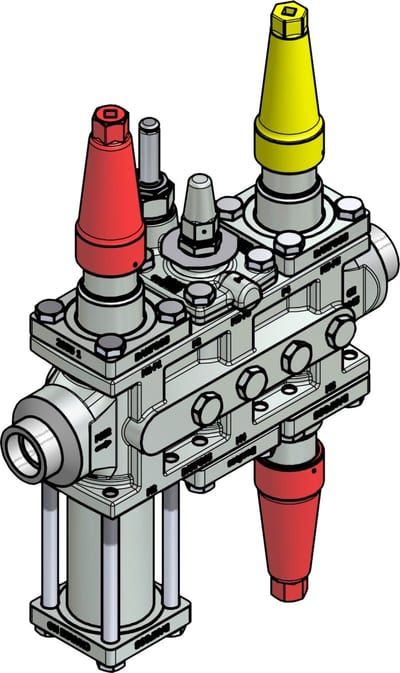

Danfoss ICF 25-6-1RA Flexline valve station, 40 mm, ASME B 16.11
027L4194
Danfoss

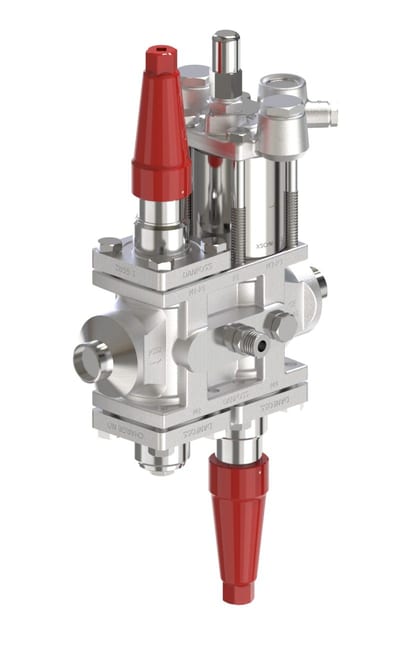

Danfoss ICF 25-4-90 Flexline valve station, 32 mm, EN 10220 (code 027L4640)
