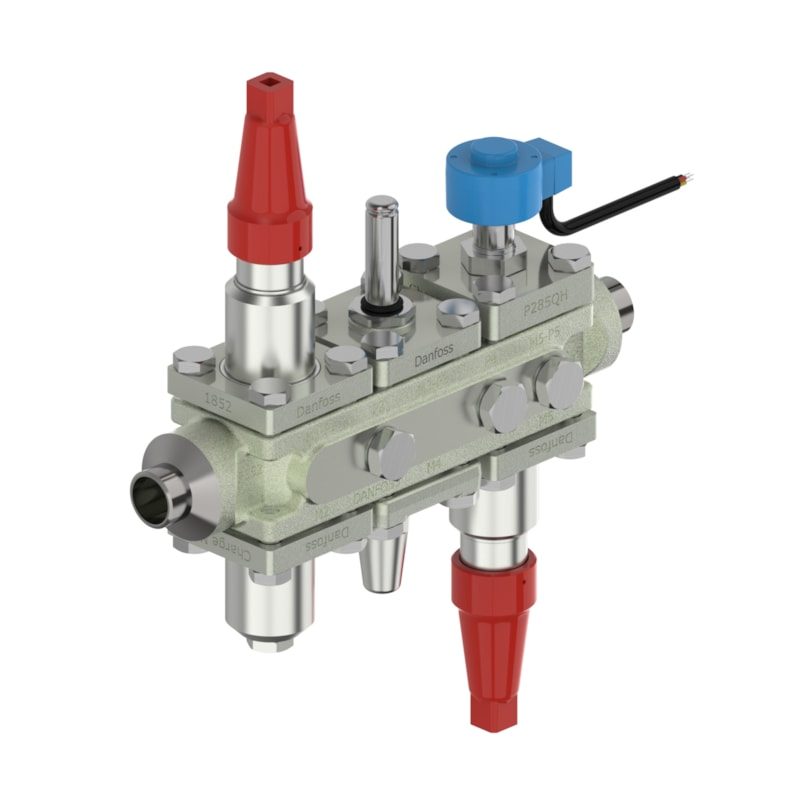

Danfoss ICF 20-6-17LD NeoCharge Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-6-17LD NeoCharge Flexline valve station (code 027L4688). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Electronic expansion valve (ICFL 20D), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard ASME B 36.10M Schedule 80 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -45 to +50 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-6-17LD NeoCharge Flexline valve station
- Code number
- 027L4688
- Connection size
- 20 mm
- Connection standard
- ASME B 36.10M Schedule 80
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Electronic expansion valve (ICFL 20D), Stop/check valve (ICFN 20)
- Product line
- NeoCharge
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -45 to +50 C (-49 to +122 F)
- Weight
- net weight 9.8 kg, gross weight 10.71 kg
- Approvals
- CE, TÜV, UKCA, UL
- EAN
- 5715255144090
- Net weight
- 9.8 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 20
- Module 2
- Filter
- Module 2 type
- ICFF 20
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 20
- Module 4
- Manual opening
- Module 4 type
- ICFO 20
- Module 5
- Electronic expansion valve
- Module 5 type
- ICFL 20G
- Module 6
- Stop/check valve
- Module 6 type
- ICFN 20
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R507A
- Side port connection size [in]
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity [pc]
- 6 pc
- Temperature range [°C] [max]
- 50 °C
- Temperature range [°C] [min]
- -45 °C
- Temperature range [°F] [max]
- 122 °F
- Temperature range [°F] [min]
- -49 °F
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -45 to +50 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-17LD NeoCharge (Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Electronic expansion valve (ICFL 20D), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line to ASME B 36.10M Schedule 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
