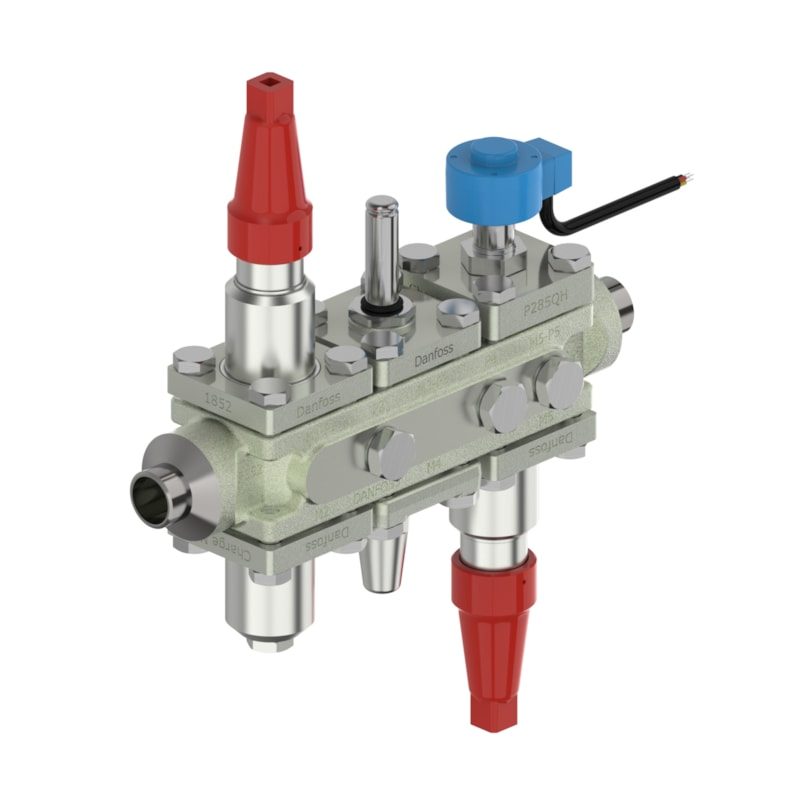

Danfoss ICF 20-6-17LF NeoCharge Flexline valve station, 20 mm, ASME B 36.10M Schedule 80 (code 027L4690)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-6-17LF NeoCharge Flexline valve station (code 027L4690). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Electronic expansion valve (ICFL 20F), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard ASME B 36.10M Schedule 80 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -45 to +50 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4690
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -45 to +50 C
- Standard
- ASME B 36.10M Schedule 80
- Standard size
- 20 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-17LF NeoCharge (Stop valve (ICFS 20), Filter (ICFF 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Electronic expansion valve (ICFL 20F), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line to ASME B 36.10M Schedule 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
