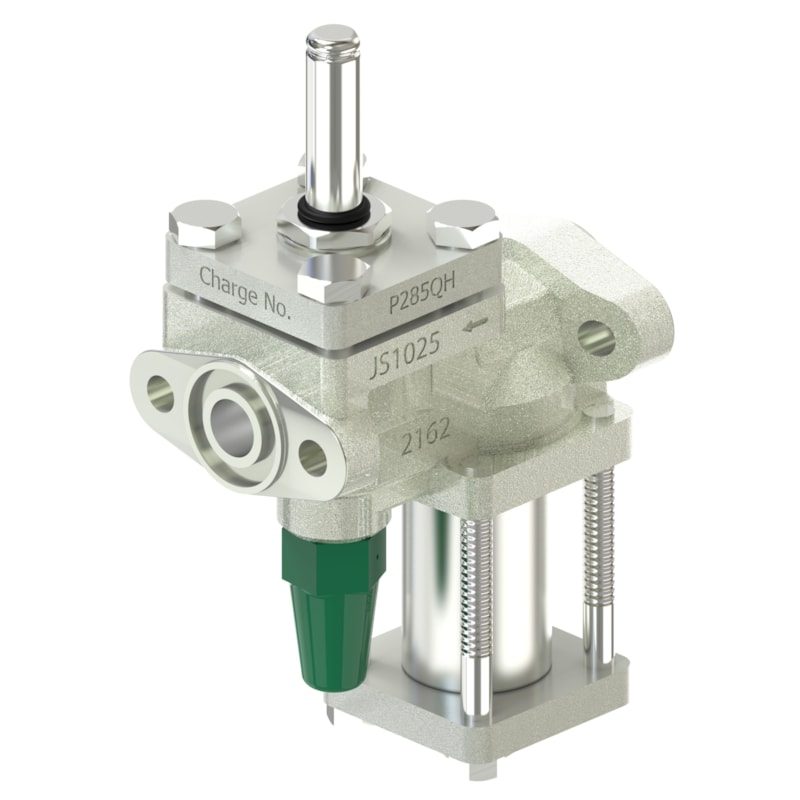

Danfoss ICF 15 EVRAT-ICFA 20A Flexline valve station, 15 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15 EVRAT-ICFA 20A Flexline valve station (code 027L4675). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Filter (ICFF 15), Electronic expansion valve (ICFA 20A), Manual opening. Connection size 15 mm, flange connection. Maximum working pressure 42 bar (610 psig); media temperature range -40 to +105 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15 EVRAT-ICFA 20A Flexline valve station
- Code number
- 027L4675
- Connection size
- 15 mm
- Connection type
- Flange
- Module configuration
- Filter (ICFF 15), Electronic expansion valve (ICFA 20A), Manual opening
- Body material
- Steel
- Surface coating
- Zn (TLP)
- Maximum working pressure
- 42 bar (610 psig)
- Media temperature range
- -40 to +105 C (-40 to +221 F)
- Weight
- net weight 3.3 kg, gross weight 3.683 kg
- Approvals
- C-UL-US Listed, EAC
- EAN
- 5715162976968
- Net weight
- 3.3 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1/2 inch
- Connection size [mm]
- 15 mm
- Connection standard
- NA
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 42 bar
- Max. Working Pressure [psig]
- 610 psig
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Electronic expansion valve
- Module 3 type
- ICFA 20A
- Module 4
- Manual opening
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 105 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 221 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 42 bar
- Temperature Range
- -40 to +105 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15 EVRAT-ICFA 20A (Filter (ICFF 15), Electronic expansion valve (ICFA 20A), Manual opening). The station mounts via its flange into a 15 mm line; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
