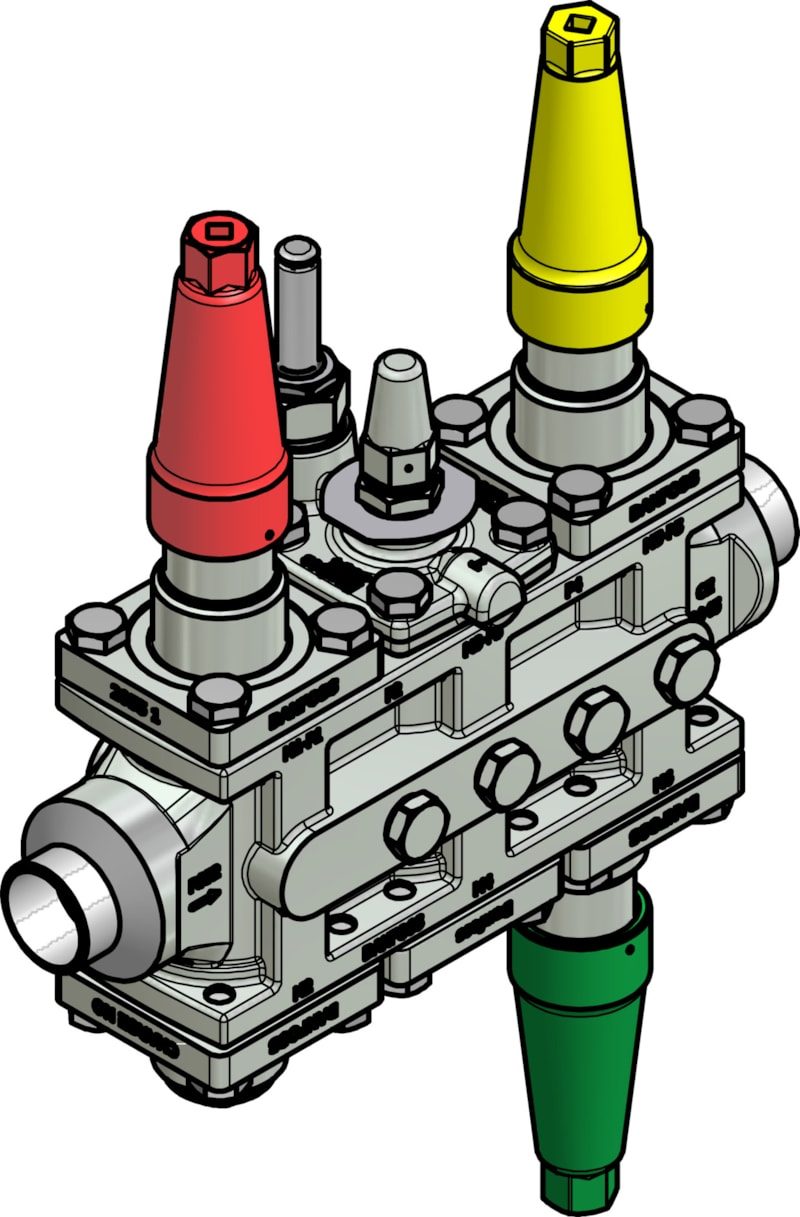

Danfoss ICF 25-6-2RB Flexline valve station, 25 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-6-2RB Flexline valve station (code 027L4205). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Blank top cover (ICFB 25), Manual regulating valve (ICFR 25B), Stop/check valve (ICFN 25). Connection size 25 mm, connection standard EN 10220 (butt weld). Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-6-2RB Flexline valve station
- Code number
- 027L4205
- Connection size
- 25 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Blank top cover (ICFB 25), Manual regulating valve (ICFR 25B), Stop/check valve (ICFN 25)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 22.33 kg, gross weight 23.896 kg
- Approvals
- CE, EAC, TÜV, UL
- EAN
- 5702428998765
- Net weight
- 22.33 Kilogram
- Product group
- Multifunction valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection size [in]
- 1 in
- Connection size [mm]
- 25 mm
- Direction
- Straightway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 65 bar
- Max. Working Pressure [psig]
- 943 psig
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Blank top cover
- Module 4 type
- ICFB 25
- Module 5
- Manual regulating valve
- Module 5 type
- ICFR 25B
- Module 6
- Stop/check valve
- Module 6 type
- ICFN 25
- PED category
- II
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Side port placement
- P2-P4-P5-P7-P9-P10
- Side port quantity [pc]
- 6 pc
- Surface coating
- ZnCr04
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Type code ICF
- ICF-25-6-25DSXFXEHBXRBNX62XX
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-6-2RB (Stop valve (ICFS 25), Filter (ICFF 25), Solenoid valve (ICFE 25), Blank top cover (ICFB 25), Manual regulating valve (ICFR 25B), Stop/check valve (ICFN 25)). The station bolts into a 25 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss

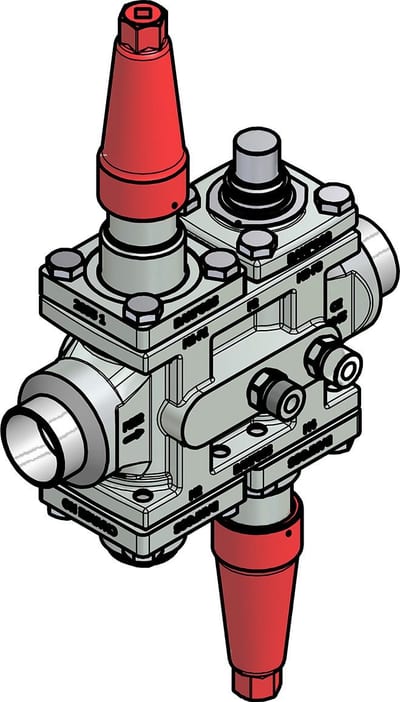

Danfoss ICF 25-4-14MB Flexline valve station, 40 mm, EN 10220
027L4117
Danfoss

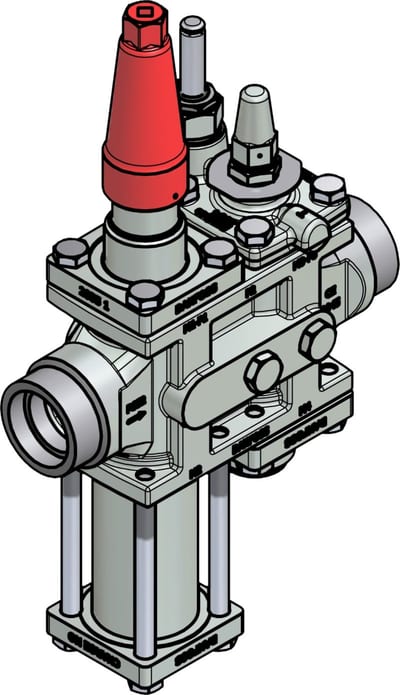

Danfoss ICF 25-4-11 Flexline valve station, 40 mm, ASME B 16.11
027L4100
Danfoss

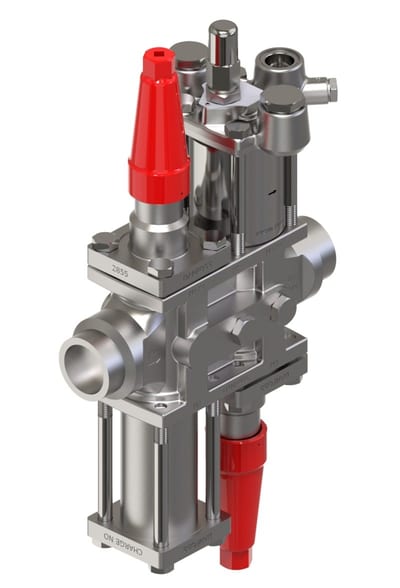

Danfoss ICF 25-4-47H25 Flexline valve station, 32 mm, ASME B 16.11
027L4229
Danfoss

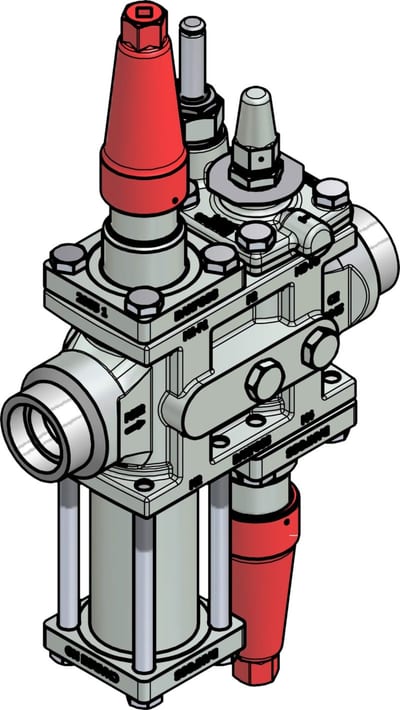

Danfoss ICF 25-4-9 Flexline valve station, 32 mm, ASME B 16.11
027L4069
Danfoss

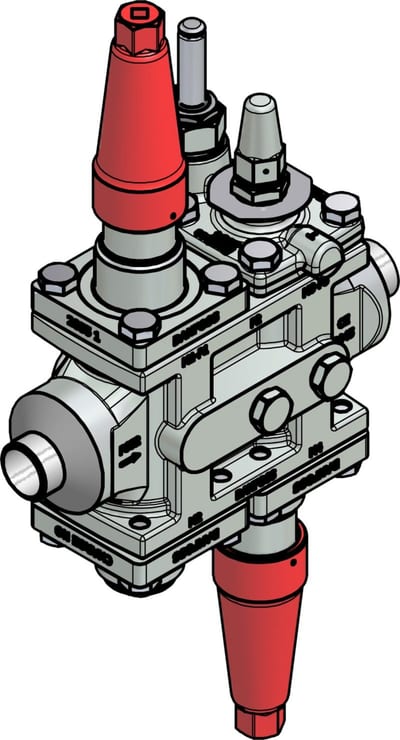

Danfoss ICF 25-4-9 Flexline valve station, 25 mm, EN 10220
027L4063
Danfoss

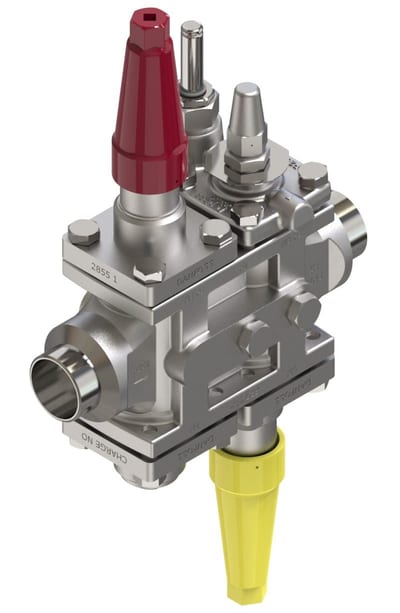

Danfoss ICF 25-4-10RB Flexline valve station, 40 mm, EN 10220
027L4090
Danfoss

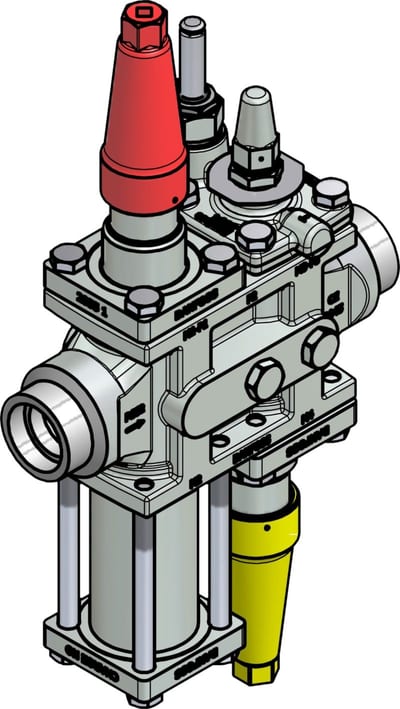

Danfoss ICF 25-4-10RA Flexline valve station, 32 mm, ASME B 16.11
027L4082
Danfoss

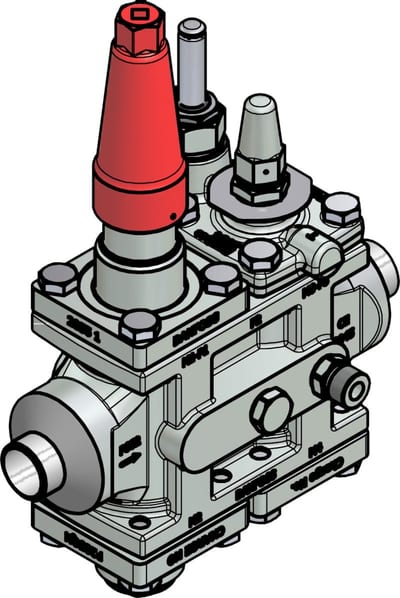

Danfoss ICF 25-4-8 Flexline valve station, 25 mm, EN 10220
