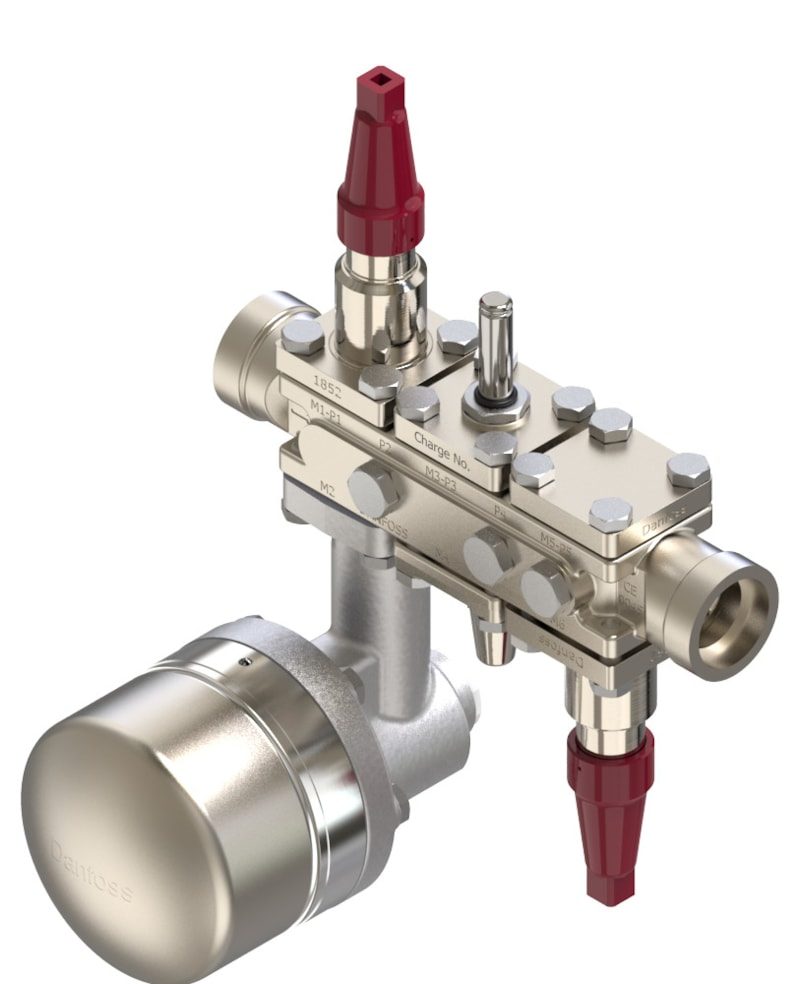

Danfoss ICF 20-6-107D1 Flexline valve station, 25 mm, ASME B 16.11 (code 027L3499)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20-6-107D1 Flexline valve station (code 027L3499). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 20), Defrost module (ICFD 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Blank top cover (ICFB 20), Stop valve (ICFS 20). Connection size 25 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L3499
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- ASME B 16.11
- Standard size
- 25 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-6-107D1 (Stop valve (ICFS 20), Defrost module (ICFD 20), Solenoid valve (ICFE 20), Manual opening (ICFO 20), Blank top cover (ICFB 20), Stop valve (ICFS 20)). The station bolts into a 25 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
