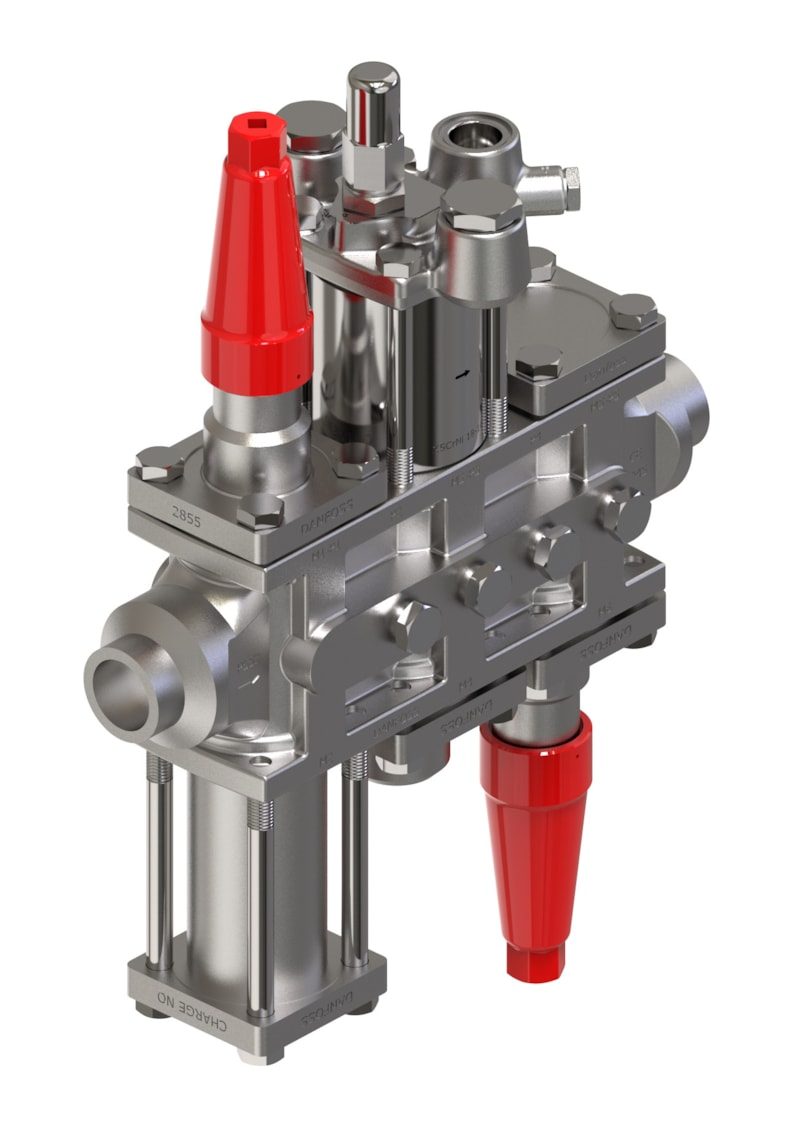

Danfoss ICF 25-6-42S3-5 Flexline valve station, 25 mm, ASME B 16.11 (code 027L4240)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 25-6-42S3-5 Flexline valve station (code 027L4240). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25E), Control valve (ICFG 25-5), Check valve (ICFC 25), Blank top cover (ICFB 25), Stop valve (ICFS 25). Connection size 25 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4240
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to +120 C
- Standard
- ASME B 16.11
- Standard size
- 25 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-6-42S3-5 (Stop valve (ICFS 25), Filter (ICFF 25E), Control valve (ICFG 25-5), Check valve (ICFC 25), Blank top cover (ICFB 25), Stop valve (ICFS 25)). The station bolts into a 25 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Approvals
