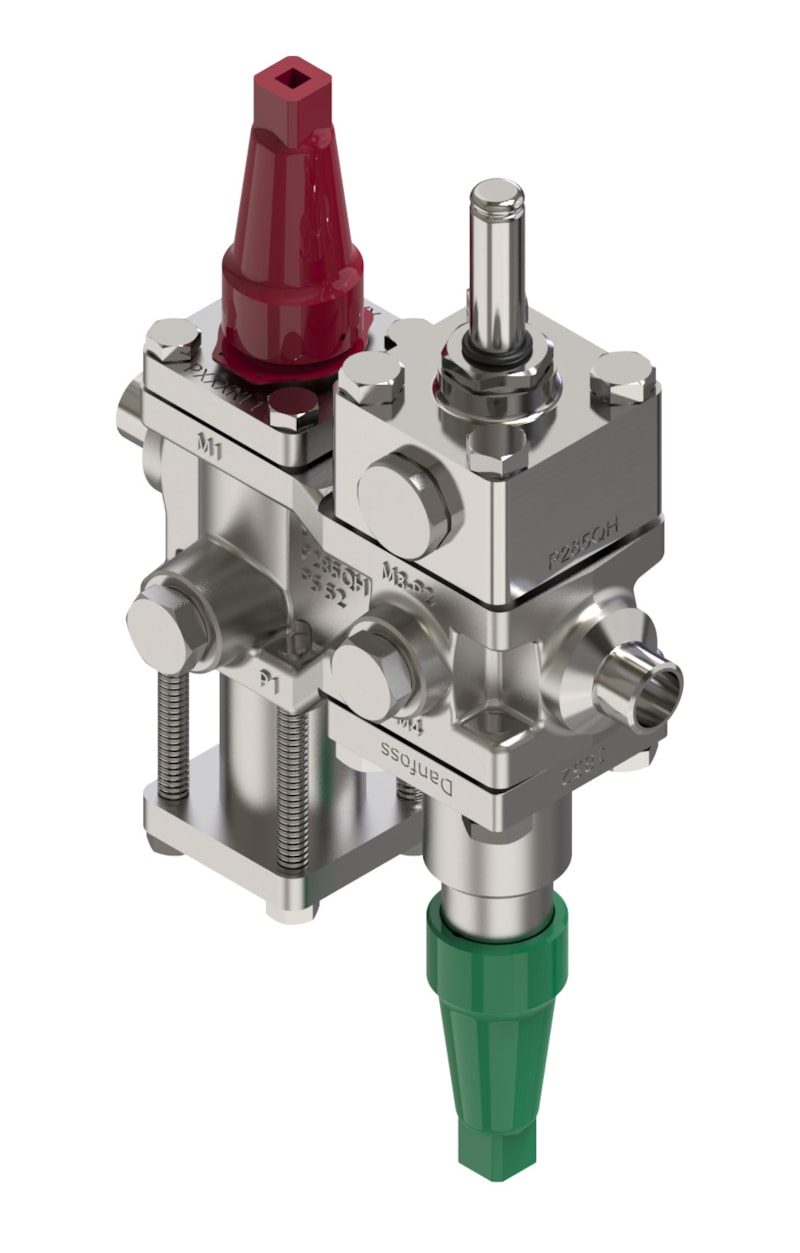

Danfoss ICF 15-4-13 Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15-4-13 Flexline valve station (code 027L4555). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Electronic expansion valve (ICFA 20), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard ASME B 36.10M Schedule 80. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-13 Flexline valve station
- Code number
- 027L4555
- Connection size
- 20 mm
- Connection standard
- ASME B 36.10M Schedule 80
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Electronic expansion valve (ICFA 20), Stop/check valve (ICFN 20)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- gross weight 6.809 kg
- Approvals
- EAC, UL
- EAN
- 5702428925693
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Electronic expansion valve
- Module 3 type
- ICFA 20
- Module 4
- Stop/check valve
- Module 4 type
- ICFN 20
- Side port placement
- P1-P2
- Side port quantity
- 2 pc
- Surface coating
- Zn (TLP)
- Type code ICF
- ICF-15-4-20ASYFYAXNXXXXX2DXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-13 (Stop valve (ICFS 15), Filter (ICFF 15), Electronic expansion valve (ICFA 20), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line to ASME B 36.10M Schedule 80; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 15-4-12 Flexline valve station, 20 mm, ASME B 36.10M Schedule 80
027L4556
Danfoss
Danfoss ICF 15-4-18H Flexline valve station, 15 mm, ANSI B 16.11
027L4557
Danfoss
Danfoss ICF 25-4-18 Flexline valve station, 32 mm, EN 10220 (code 027L4575)
Danfoss
Danfoss ICF 15-4-90 Flexline valve station, 20 mm, EN 10220 (code 027L4576)
Danfoss

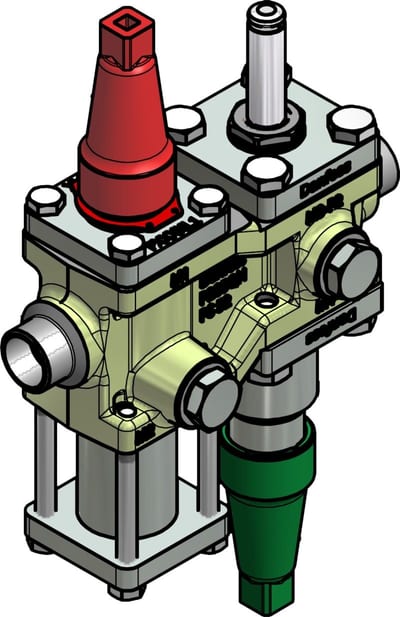

Danfoss ICF 15-4-13 Flexline valve station, 22 mm, EN 10220
027L4582
Danfoss

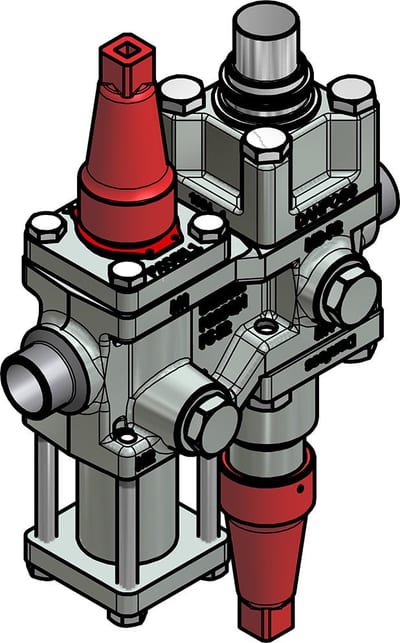

Danfoss ICF 15-4-14MB Flexline valve station, 15 mm, ANSI B 16.11
027L4583
Danfoss

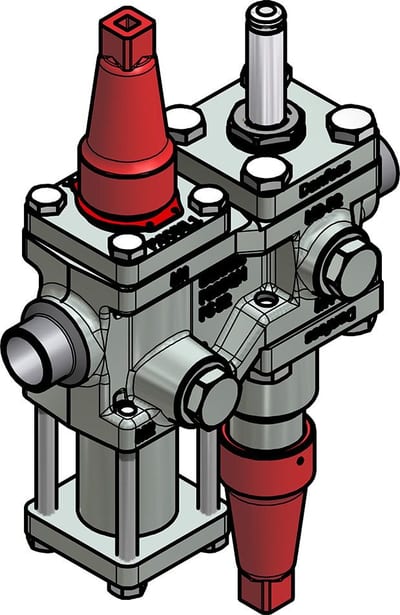

Danfoss ICF 15-4-12 Flexline valve station, 20 mm, ANSI B 16.11
