Danfoss ICF 15-4-14MB Flexline valve station, 15 mm, ANSI B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description

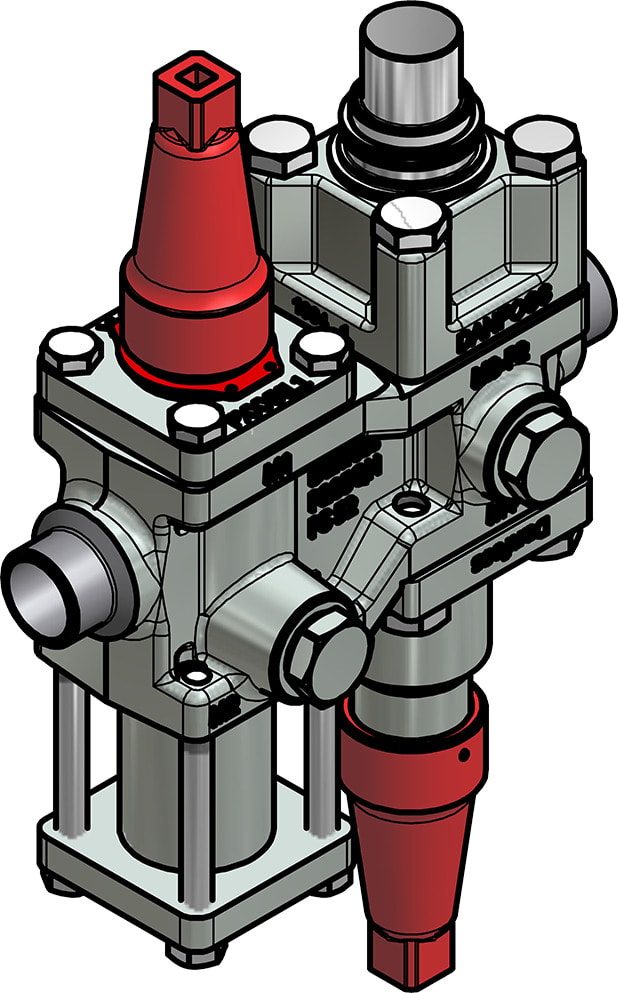

Danfoss ICF 15-4-14MB Flexline valve station (code 027L4583). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Motor valve (ICM 20B), Stop valve (ICFS 20). Connection size 15 mm, connection standard ANSI B 16.11. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15-4-14MB Flexline valve station
- Code number
- 027L4583
- Connection size
- 15 mm
- Connection standard
- ANSI B 16.11
- Module configuration
- Stop valve (ICFS 15), Filter (ICFF 15), Motor valve (ICM 20B), Stop valve (ICFS 20)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- gross weight 7.445 kg
- Approvals
- EAC, UL
- EAN
- 5702428972901
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 15
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Motor valve
- Module 3 type
- ICM 20B
- Module 4
- Stop valve
- Module 4 type
- ICFS 20
- Side port placement
- P1-P2
- Side port quantity
- 2 pc
- Surface coating
- Zn 12TLP
- Type code ICF
- ICF-15-4-15SSYFYMBSXXXXX2EXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ANSI B 16.11
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-14MB (Stop valve (ICFS 15), Filter (ICFF 15), Motor valve (ICM 20B), Stop valve (ICFS 20)). The station bolts into a 15 mm line to ANSI B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 15-4-12 Flexline valve station, 20 mm, ANSI B 16.11
027L4613
Danfoss
Danfoss ICF 15-4-13 Flexline valve station, 20 mm, ANSI B 16.11
027L4614
Danfoss

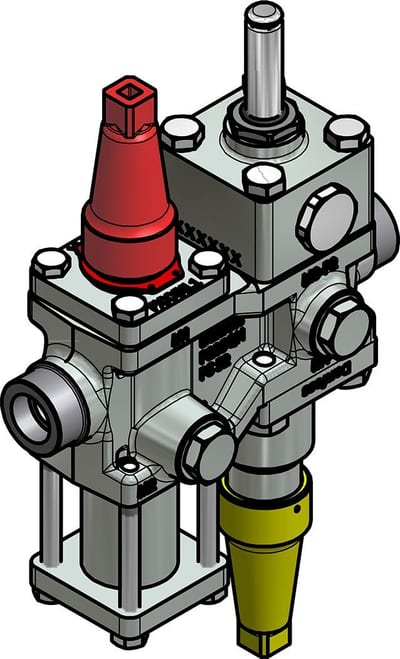

Danfoss ICF 15-4-10HRB Flexline valve station, 20 mm, ANSI B 16.11
027L4615
Danfoss
Danfoss ICF 15-4-14MA Flexline valve station, 20 mm, ANSI B 16.11
027L4616
Danfoss

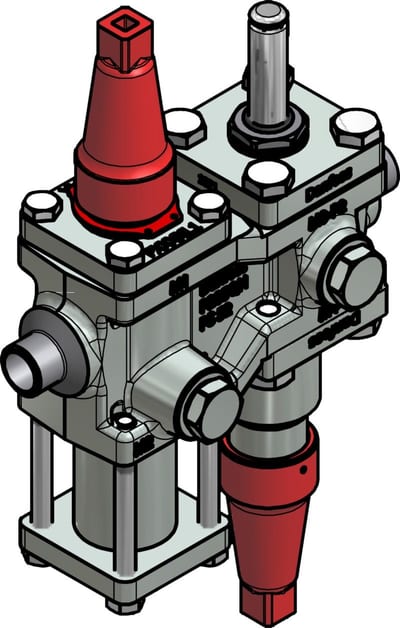

Danfoss ICF 15-4-9 Flexline valve station, 20 mm, ANSI B 16.11
027L4618
Danfoss

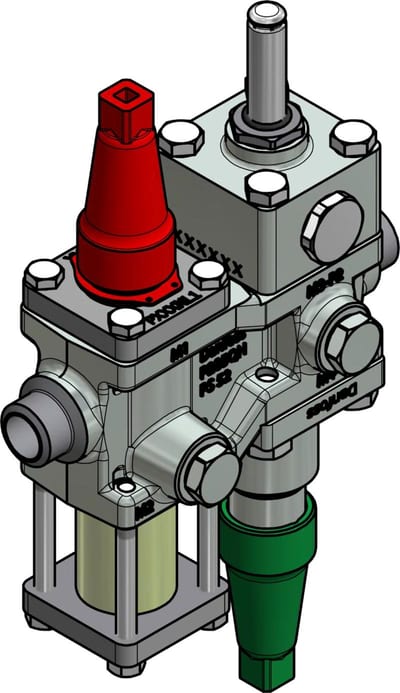

Danfoss ICF 15-4-18H Flexline valve station, 20 mm, ANSI B 16.11
027L4620
Danfoss

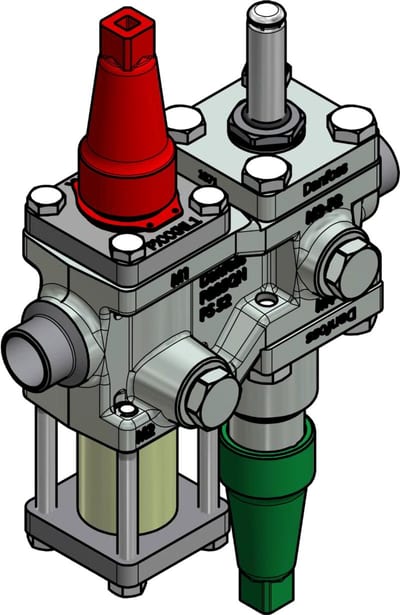

Danfoss ICF 15-4-18 Flexline valve station, 20 mm, ANSI B 16.11
