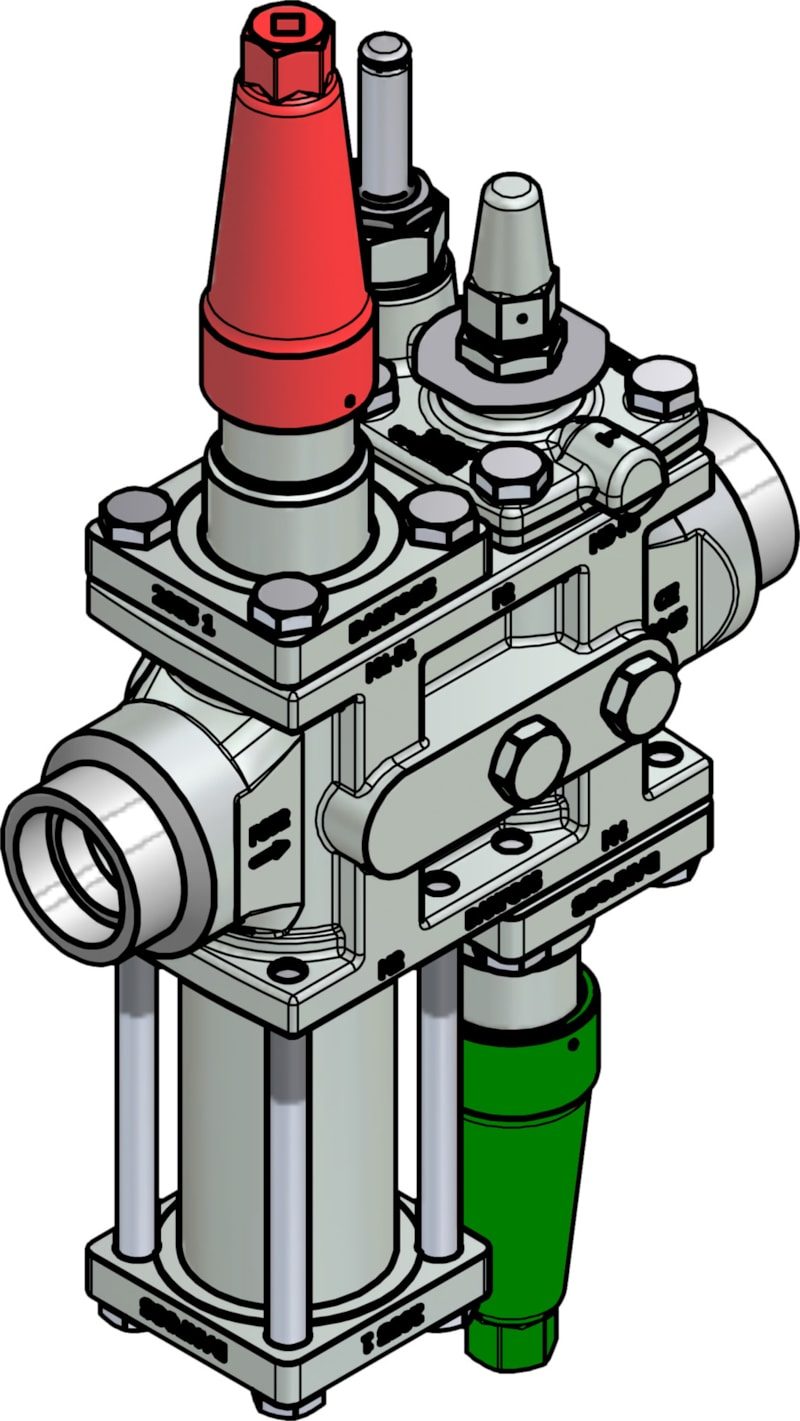

Danfoss ICF 25-4-18 Flexline valve station, 32 mm, EN 10220 (code 027L4575)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-18 Flexline valve station (code 027L4575). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Stop/check valve (ICFN 25). Connection size 32 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-18 Flexline valve station
- Code number
- 027L4575
- Connection size
- 32 mm
- Connection standard
- EN 10220
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Stop/check valve (ICFN 25)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 17.71 kg, gross weight 17.73 kg
- Approvals
- EAC, UL
- EAN
- 5702428939416
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R507A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25E
- Module 3
- Solenoid valve
- Module 3 type
- ICFE 25
- Module 4
- Stop/check valve
- Module 4 type
- ICFN 25
- Side port connection size
- 3/8 in
- Side port connection type
- G
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- Zn (TLP)
- Type code ICF
- ICF-25-4-32DSXFEEHNXXXXX4IXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-18 (Stop valve (ICFS 25), Filter (ICFF 25E), Solenoid valve (ICFE 25), Stop/check valve (ICFN 25)). The station bolts into a 32 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
