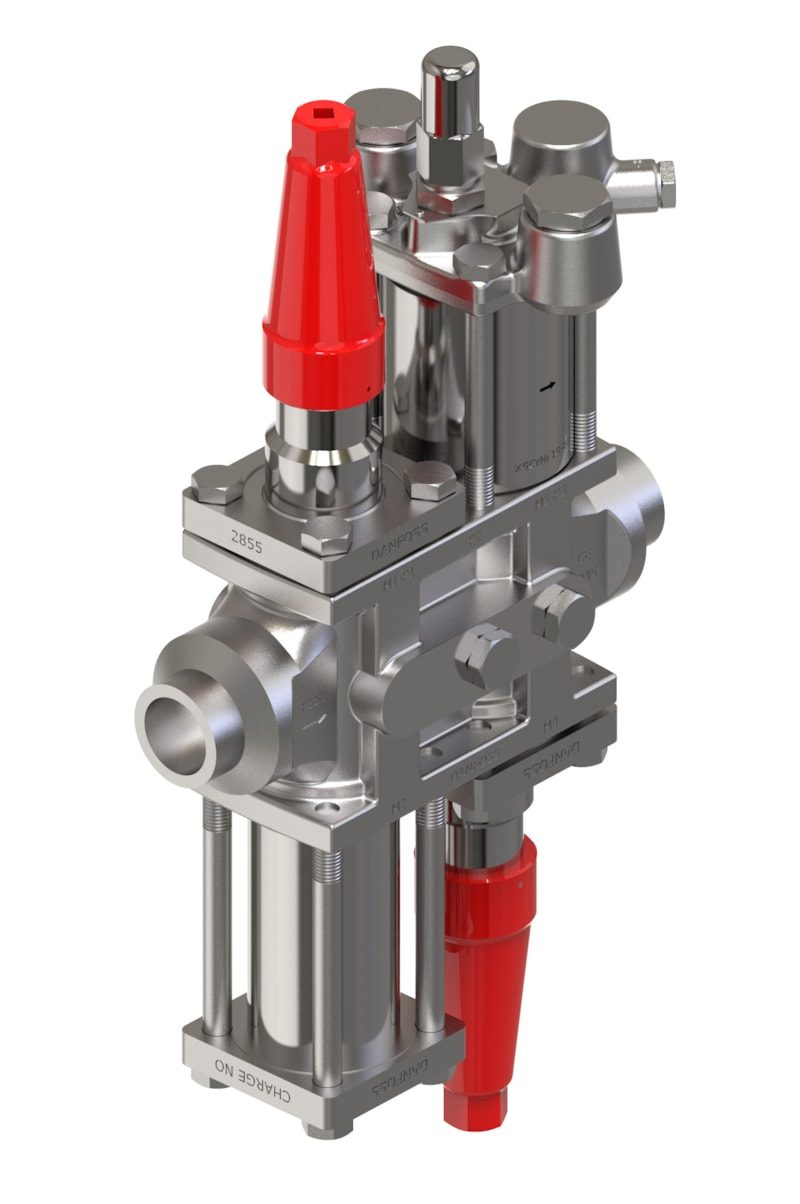

Danfoss ICF 25-4-42S3-20 Flexline valve station, 25 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 25-4-42S3-20 Flexline valve station (code 027L4234). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 25), Filter (ICFF 25E), Control valve (ICFG 25-20), Stop valve (ICFS 25). Connection size 25 mm, connection standard ASME B 16.11. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 25-4-42S3-20 Flexline valve station
- Code number
- 027L4234
- Connection size
- 25 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (ICFS 25), Filter (ICFF 25E), Control valve (ICFG 25-20), Stop valve (ICFS 25)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 19 kg, gross weight 20.5 kg
- Approvals
- CE, UL
- EAN
- 5715162437445
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL approval file name
- REFRIGERANT VALVE 53R0
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- ICFS 25
- Module 2
- Filter
- Module 2 type
- ICFF 25E
- Module 3
- Control valve
- Module 3 type
- ICFG 25-20
- Module 4
- Stop valve
- Module 4 type
- ICFS 25
- Side port placement
- P2-P3-P5-P6
- Side port quantity
- 4 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-25-4-25SSXFEEHSXXXXX49XX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 25-4-42S3-20 (Stop valve (ICFS 25), Filter (ICFF 25E), Control valve (ICFG 25-20), Stop valve (ICFS 25)). The station bolts into a 25 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 25-4-42S3-25 Flexline valve station, 32 mm, ASME B 16.11
027L4236
Danfoss
Danfoss ICF 25-4-42S3-25 Flexline valve station, 40 mm, ASME B 16.11
027L4237
Danfoss
Danfoss ICF 25-6-42S3-5 Flexline valve station, 25 mm, ASME B 16.11
027L4240
Danfoss
Danfoss ICF 25-6-42S3-10 Flexline valve station, 25 mm, ASME B 16.11
027L4241
Danfoss
Danfoss ICF 25-6-42S3-15 Flexline valve station, 25 mm, ASME B 16.11
027L4242
Danfoss
Danfoss ICF 25-6-42S3-20 Flexline valve station, 25 mm, ASME B 16.11
027L4243
Danfoss

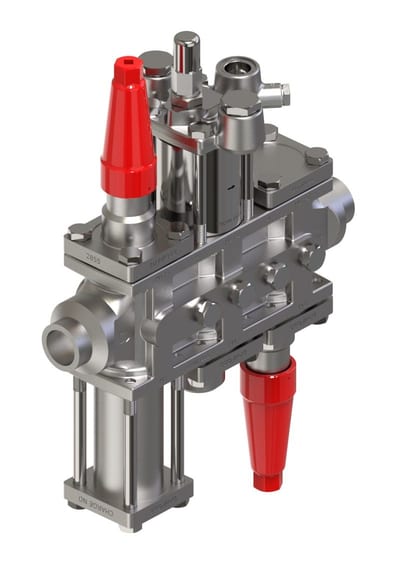

Danfoss ICF 25-6-42S3-25 Flexline valve station, 25 mm, ASME B 16.11
027L4244
Danfoss

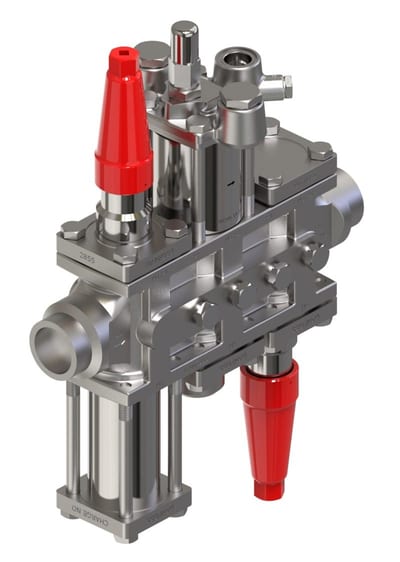

Danfoss ICF 25-6-42S3-15 Flexline valve station, 32 mm, ASME B 16.11
