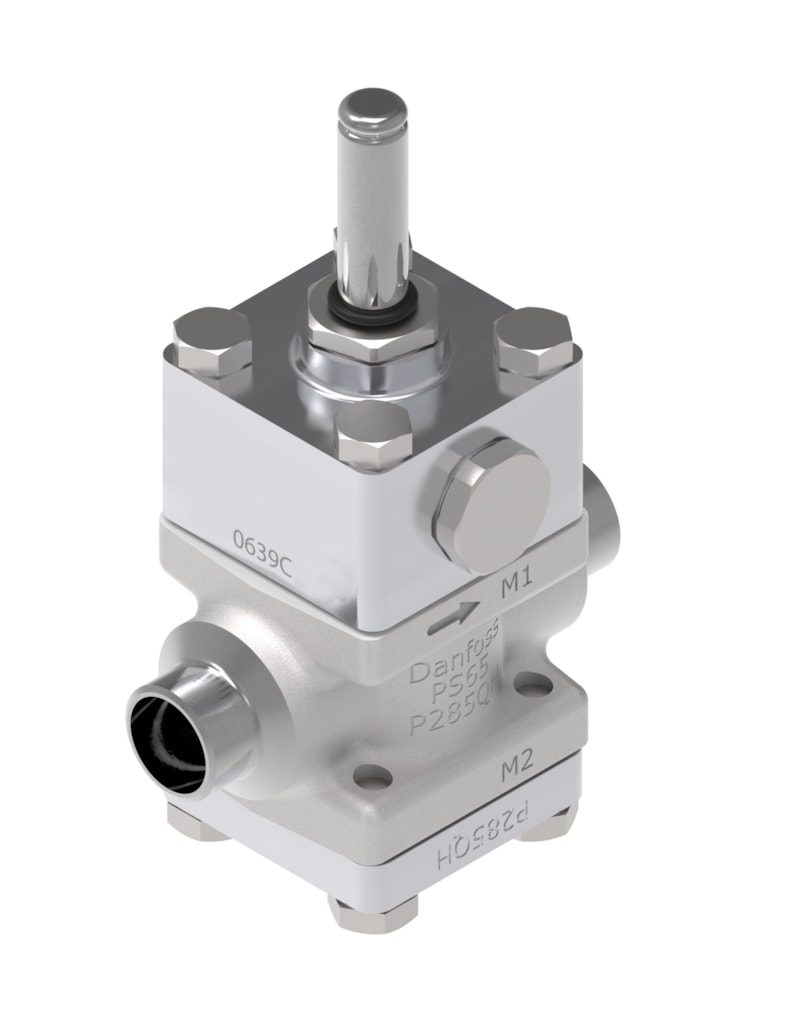

Danfoss ICF 20-2-121H Flexline valve station, 20 mm, EN 10220
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 20-2-121H Flexline valve station (code 027L3804). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Solenoid valve (ICFE 20-H), Blank top cover (ICFB 20). Connection size 20 mm, connection standard EN 10220. Maximum working pressure 65 bar (943 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 20-2-121H Flexline valve station
- Code number
- 027L3804
- Connection size
- 20 mm
- Connection standard
- EN 10220
- Module configuration
- Solenoid valve (ICFE 20-H), Blank top cover (ICFB 20)
- Body material
- Steel
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 2.55 kg, gross weight 3.83 kg
- Approvals
- EAC, UL
- EAN
- 5702424545109
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection material
- Steel
- Connection type
- Butt weld
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Flow direction indicator
- Embossed 1-way arrow
- Module 1
- Solenoid valve
- Module 1 type
- ICFE 20-H
- Module 2
- Blank top cover
- Module 2 type
- ICFB 20
- Surface coating
- Zn (TLP)
- Type code ICF
- ICF-20-2-20DEHBXXXXXXXXX0LAX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20-2-121H (Solenoid valve (ICFE 20-H), Blank top cover (ICFB 20)). The station bolts into a 20 mm line to EN 10220; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 50-4-47H40 Flexline valve station, 40 mm, ASME B 16.11
027L5071
Danfoss
Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) npt screwed, steel, 52 bar (code 148B5225)
Danfoss
Danfoss SVA-S 20 straightway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar
148B5330
Danfoss

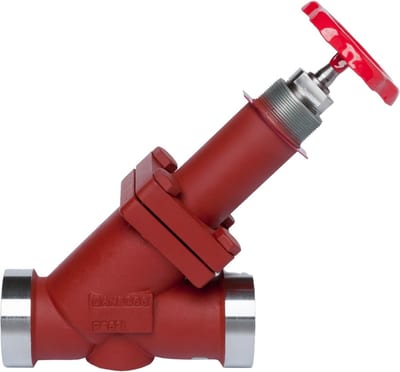

Danfoss SVA-L 15 straightway shut-off valve, 15 mm (1/2 in) socket weld, steel, 52 bar
148B5272
Danfoss
Danfoss SVA-S 20 angleway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar (code 148B5321)
Danfoss

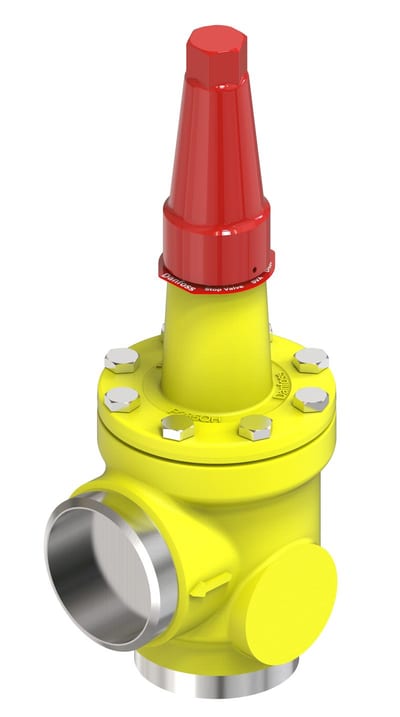

Danfoss SVA-S 80 angleway shut-off valve, 80 mm (3 in) butt weld, steel, 65 bar
148B5042
Danfoss

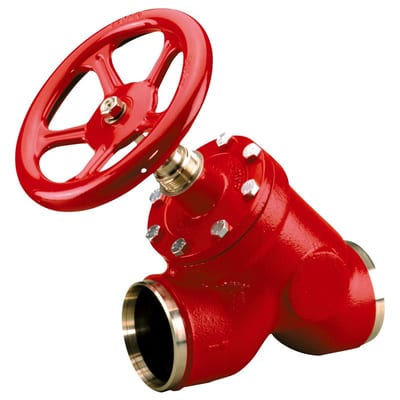

Danfoss SVA-S 150 straightway shut-off valve, 150 mm (6 in) butt weld, steel, 52 bar
148B6210
Danfoss

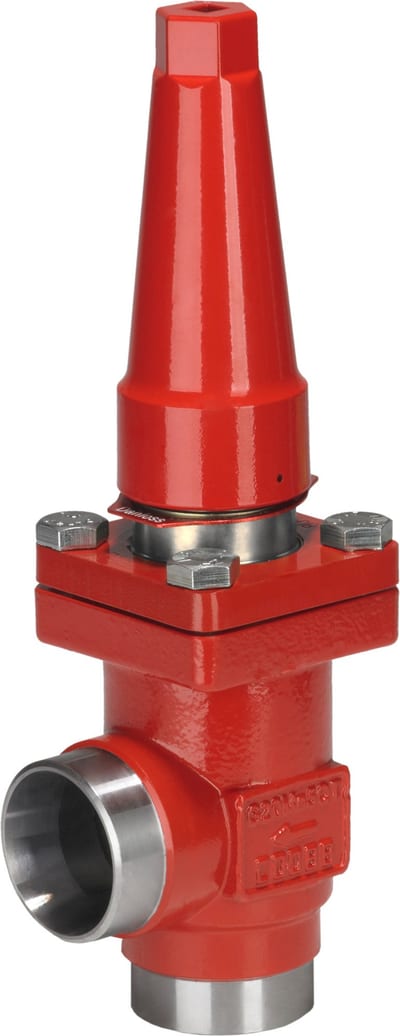

Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) butt weld, steel, 52 bar
