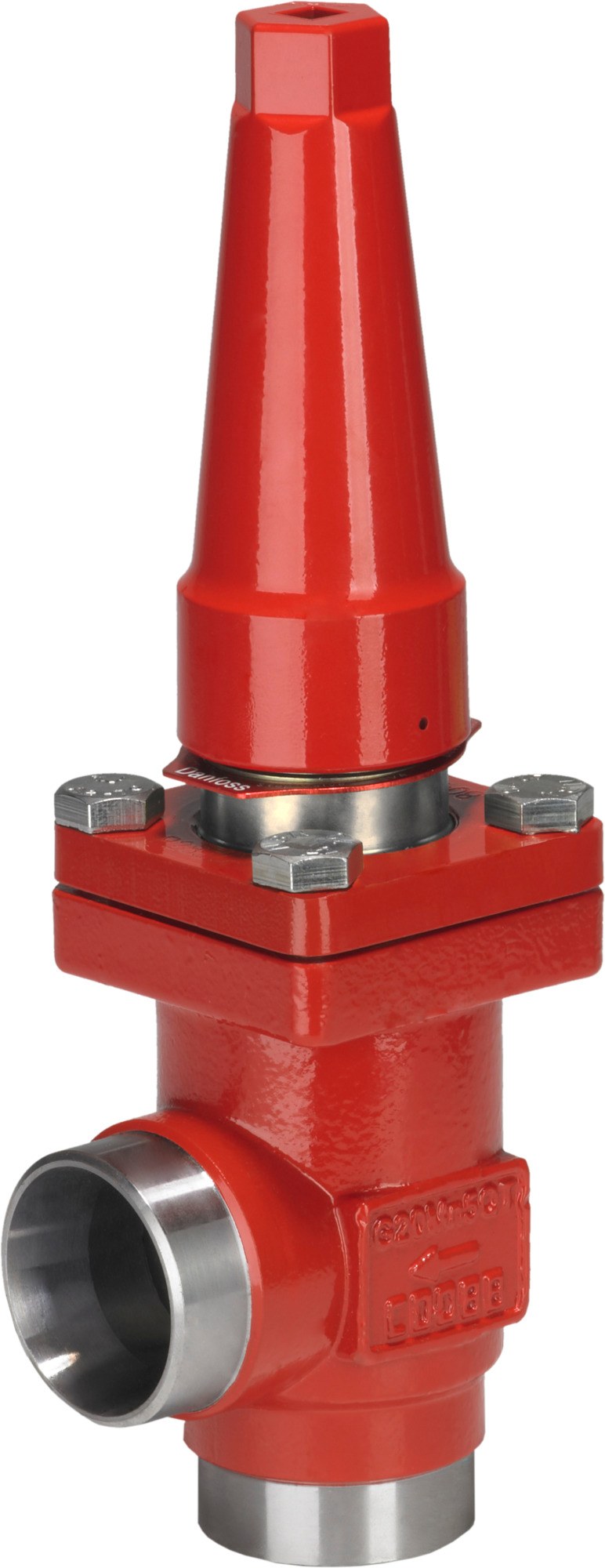

Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) butt weld, steel, 52 bar (code 148B5221)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 15 angleway shut-off (stop) valve for industrial refrigeration, code 148B5221. Standard-neck steel body with butt weld connections to ASME B 36.10M Schedule 80, nominal size 15 mm (1/2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 7 m3/h (Cv 8.12 gal/min), bi-flow. The SVA shut-off valve has a renewable seat and cone designed to close tightly and withstand high system pulsation and vibration, and can be dismantled and repaired in line. Supplied with cap. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B5221
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 80
- Standard size
- 15 mm
Compatibility
Danfoss SVL Flexline SVA-S stop valve. This code is the angleway SVA-S 15 with butt weld (ASME B 36.10M Schedule 80) ends and a cap. Confirm line size (15 mm / 1/2 in), connection type/standard, direction (angleway) and refrigerant before ordering. SVA-S and SVA-L share the same internal parts; the difference is neck length only.
Approvals
