Danfoss ICF 50-4-47H40 Flexline valve station, 40 mm, ASME B 16.11
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 50-4-47H40 Flexline valve station (code 027L5071). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (SVA-S 50), Filter (FIA 50, 150 µm pleated), Control valve (ICSH 50-40), Stop valve (SVA-S 50). Connection size 40 mm, connection standard ASME B 16.11. Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 50-4-47H40 Flexline valve station
- Code number
- 027L5071
- Connection size
- 40 mm
- Connection standard
- ASME B 16.11
- Module configuration
- Stop valve (SVA-S 50), Filter (FIA 50, 150 µm pleated), Control valve (ICSH 50-40), Stop valve (SVA-S 50)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to +120 C (-76 to +248 F)
- Weight
- net weight 12.5 kg, gross weight 51 kg
- Approvals
- CE, EAC, UL
- EAN
- 5702428514293
- Product group
- Multifunction valves
- Direction
- Straightway
- Connection type
- Socket weld
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 120 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R513A; R513B; R515A; R515B; R516A; R717; R744
- Fluid Group
- 1
- PED category
- II
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Defrost port placement
- P2-P4
- Defrost port quantity
- 2 pc
- Equipment
- Cap
- Module 1
- Stop valve
- Module 1 type
- SVA-S 50
- Module 2
- FIA 50 filter
- Module 2 type
- 150Μ-PLEATED
- Module 3
- Control valve
- Module 3 type
- ICSH 50-40
- Module 4
- Stop valve
- Module 4 type
- SVA-S 50
- Side port placement
- P1-P3
- Side port quantity
- 2 pc
- Surface coating
- ZnCr04
- Type code ICF
- ICF-50-4-40SSXF5H2SXXXXX2PXX
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 40 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to +120 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 50-4-47H40 (Stop valve (SVA-S 50), Filter (FIA 50, 150 µm pleated), Control valve (ICSH 50-40), Stop valve (SVA-S 50)). The station bolts into a 40 mm line to ASME B 16.11; individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this module string before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) npt screwed, steel, 52 bar (code 148B5225)
Danfoss
Danfoss SVA-S 20 straightway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar
148B5330
Danfoss
Danfoss SVA-L 15 straightway shut-off valve, 15 mm (1/2 in) socket weld, steel, 52 bar
148B5272
Danfoss
Danfoss SVA-S 20 angleway shut-off valve, 20 mm (3/4 in) butt weld, steel, 52 bar (code 148B5321)
Danfoss
Danfoss SVA-S 80 angleway shut-off valve, 80 mm (3 in) butt weld, steel, 65 bar
148B5042
Danfoss
Danfoss SVA-S 150 straightway shut-off valve, 150 mm (6 in) butt weld, steel, 52 bar
148B6210
Danfoss
Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) butt weld, steel, 52 bar
148B5221
Danfoss

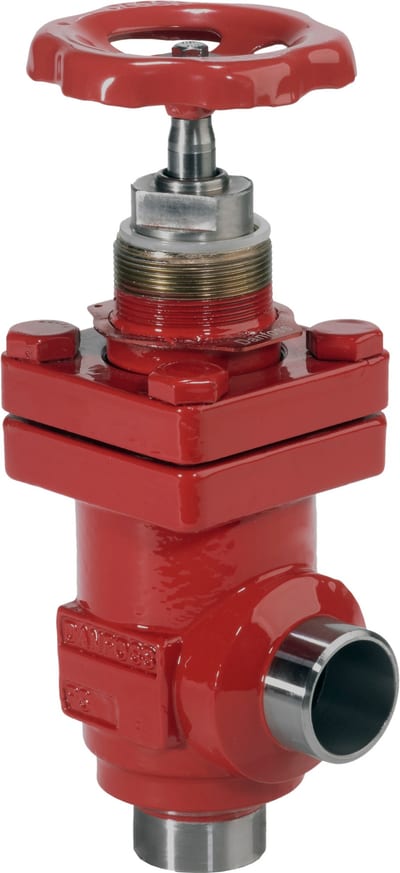

Danfoss SVA-S 15 angleway shut-off valve, 15 mm (1/2 in) socket weld, steel, 52 bar (code 148B5222)
