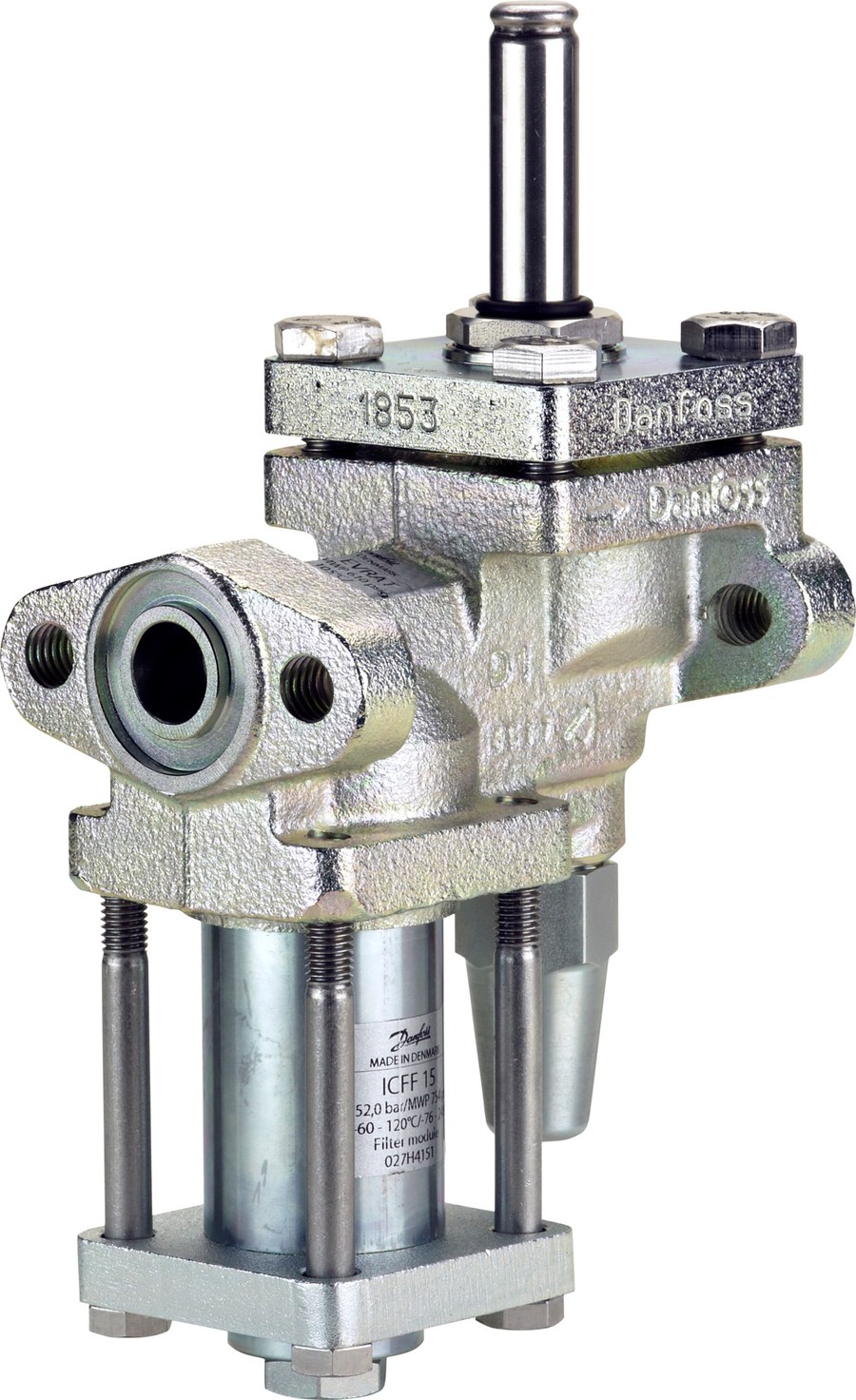

Danfoss ICF 15 EVRAT Flexline valve station, 15 mm flange (code 027L4517)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 15 EVRAT Flexline valve station (code 027L4517). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Filter (ICFF 15), Solenoid valve (ICFE 20), Manual opening (ICF 14). Connection size 15 mm, connection standard NA (flange) (flange). Maximum working pressure 42 bar (610 psig); media temperature range -40 to +105 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4517
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 42 bar
- Temperature range
- -40 to +105 C
- Standard size
- 15 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15 EVRAT (Filter (ICFF 15), Solenoid valve (ICFE 20), Manual opening (ICF 14)). The station bolts into a 15 mm line (NA (flange), flange); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Approvals
