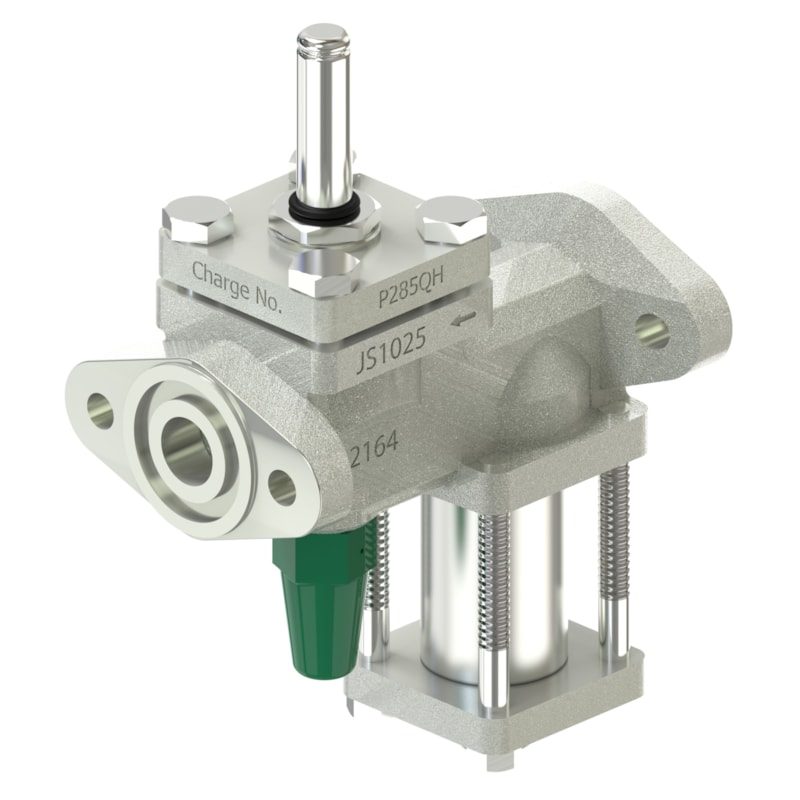

Danfoss ICF 20 EVRAT-ICFA 20B Flexline valve station, 20 mm flange (code 027L4567)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 20 EVRAT-ICFA 20B Flexline valve station (code 027L4567). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Filter (ICFF 15), Solenoid valve (ICFA 20B), Manual opening. Connection size 20 mm, connection standard NA (flange) (flange). Maximum working pressure 42 bar (610 psig); media temperature range -40 to +105 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4567
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 42 bar
- Temperature range
- -40 to +105 C
- Standard size
- 20 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 20 EVRAT-ICFA 20B (Filter (ICFF 15), Solenoid valve (ICFA 20B), Manual opening). The station bolts into a 20 mm line (NA (flange), flange); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Approvals
