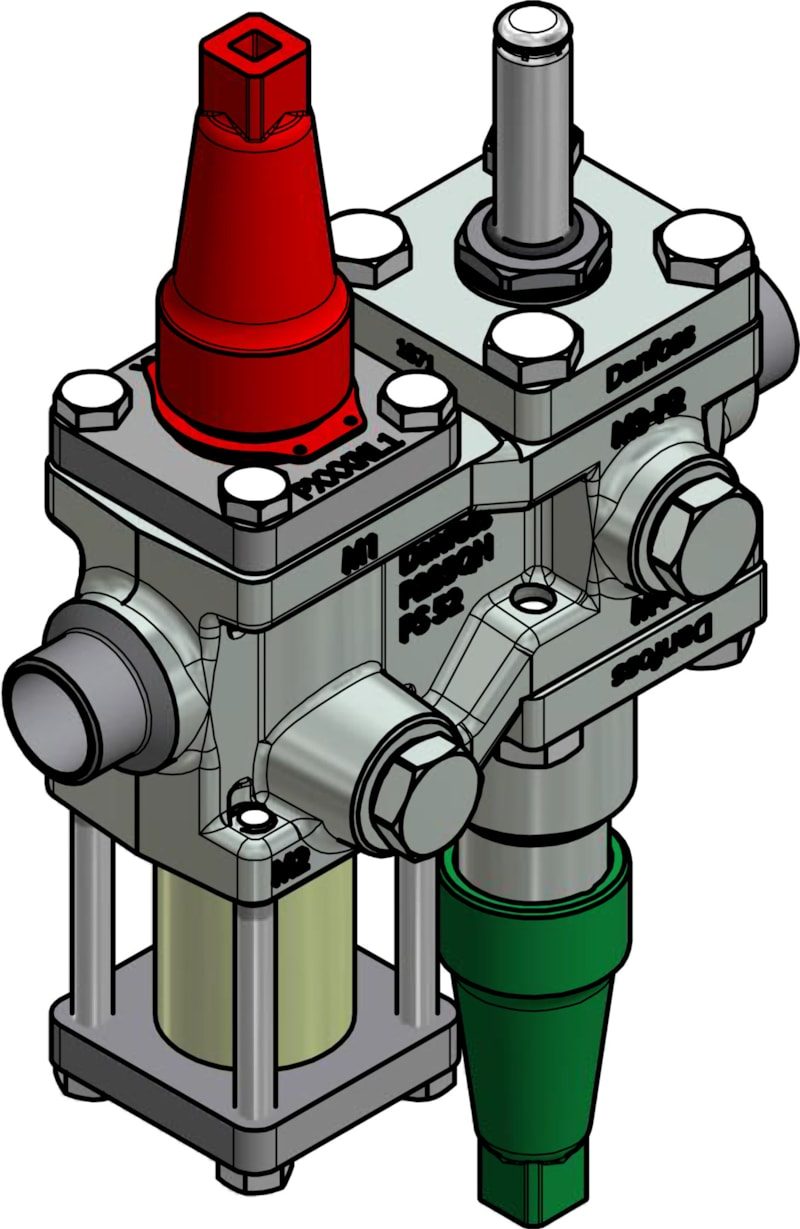

Danfoss ICF 15-4-18 Flexline valve station, 20 mm, EN 10220 (code 027L4574)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 15-4-18 Flexline valve station (code 027L4574). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Stop/check valve (ICFN 20). Connection size 20 mm, connection standard EN 10220 (butt weld). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4574
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
- Standard
- EN 10220
- Standard size
- 20 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-18 (Stop valve (ICFS 15), Filter (ICFF 15), Solenoid valve (ICFE 20), Stop/check valve (ICFN 20)). The station bolts into a 20 mm line (EN 10220, butt weld); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Approvals
