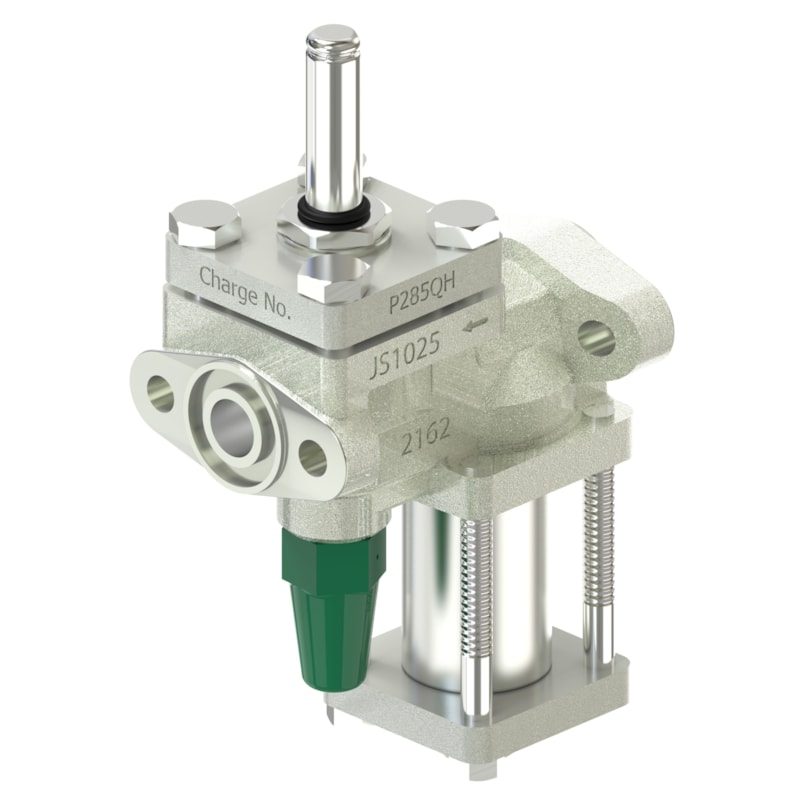

Danfoss ICF 15 EVRAT-ICFA 20B Flexline valve station, 15 mm flange
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICF 15 EVRAT-ICFA 20B Flexline valve station (code 027L4565). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Filter (ICFF 15), Solenoid valve (ICFA 20B), Manual opening. Connection size 15 mm, connection standard NA (flange) (flange). Maximum working pressure 42 bar (610 psig); media temperature range -40 to +105 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Technical Specifications
- Type
- ICF 15 EVRAT-ICFA 20B Flexline valve station
- Code number
- 027L4565
- Connection size
- 15 mm
- Connection standard
- NA (flange)
- Connection type
- Flange
- Module configuration
- Filter (ICFF 15), Solenoid valve (ICFA 20B), Manual opening
- Body material
- Steel
- Maximum working pressure
- 42 bar (610 psig)
- Media temperature range
- -40 to +105 C (-40 to +221 F)
- Weight
- net weight 3.3 kg, gross weight 3.683 kg
- Approvals
- EAC, UL
- EAN
- 5715162976944
- Net weight
- 3.3 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Steel
- Connection size [in]
- 1/2 inch
- Connection size [mm]
- 15 mm
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Max. Working Pressure [bar]
- 42 bar
- Max. Working Pressure [psig]
- 610 psig
- Module 2
- Filter
- Module 2 type
- ICFF 15
- Module 3
- Solenoid valve
- Module 3 type
- ICFA 20B
- Module 4
- Manual opening
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a
- Surface coating
- Zn (TLP)
- Temperature range [°C] [max]
- 105 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 221 °F
- Temperature range [°F] [min]
- -40 °F
Standards & Compliance
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 42 bar
- Temperature Range
- -40 to +105 C
- HS Code
- 8481.80
Compatibility & Fitment
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15 EVRAT-ICFA 20B (Filter (ICFF 15), Solenoid valve (ICFA 20B), Manual opening). The station bolts into a 15 mm line (NA (flange), flange); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss ICF 25-4-90 Flexline valve station, 32 mm, EN 10220 (code 027L4649)
Danfoss
Danfoss ICF 25-4-90 Flexline valve station, 32 mm, EN 10220 (code 027L4651)
Danfoss
Danfoss ICF 20 EVRAT-ICFA 20C Flexline valve station, 20 mm flange
027L4566
Danfoss
Danfoss ICF 20 EVRAT-ICFA 20B Flexline valve station, 20 mm flange
027L4567
Danfoss
Danfoss ICF 15-4-9 Flexline valve station, 20 mm, EN 10220
027L4571
Danfoss
Danfoss ICF 15-4-18H Flexline valve station, 20 mm, ASME B 36.10M SCHEDULE 80
027L4572
Danfoss
Danfoss ICF 15-4-12 Flexline valve station, 15 mm, EN 10220
027L4573
Danfoss

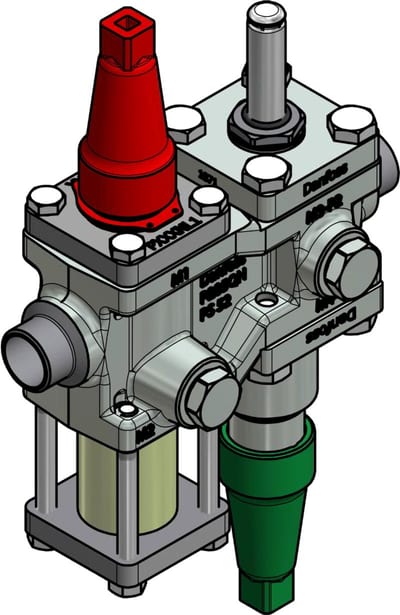

Danfoss ICF 15-4-18 Flexline valve station, 20 mm, EN 10220
