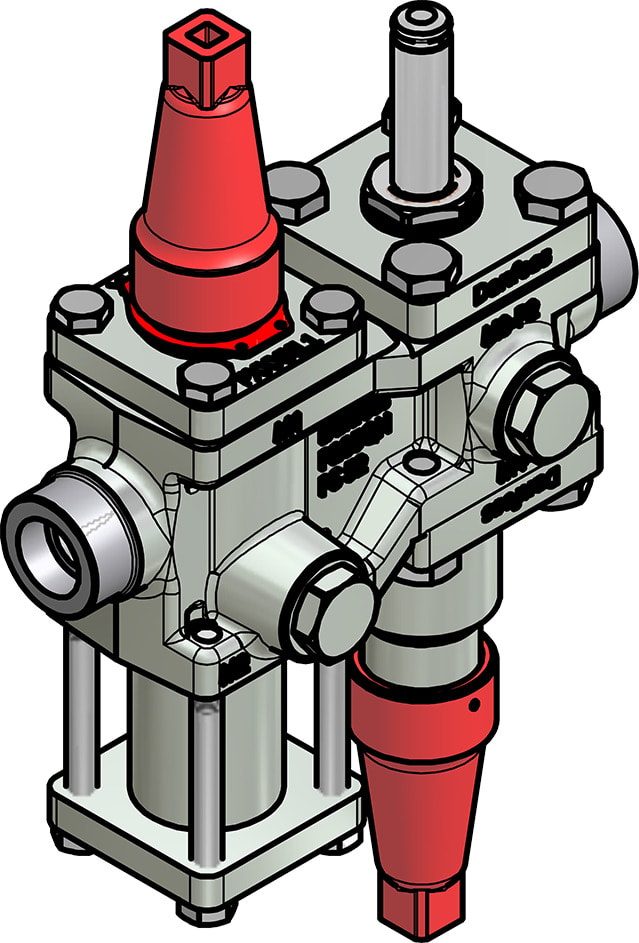

Danfoss ICF 15-4-12 Flexline valve station, 22 mm, ANSI B 16.22 (code 027L4597)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss ICF 15-4-12 Flexline valve station (code 027L4597). The ICF valve station combines several refrigeration control functions in one steel housing — for this configuration: Stop valve (ICFS 15), Filter (ICFF 15), Electronic expansion valve (ICFA 20), Stop valve (ICFS 20). Connection size 22 mm, connection standard ANSI B 16.22 (soldering). Maximum working pressure 52 bar (754 psig); media temperature range -60 to +120 C. The ICF Flexline modular concept replaces a string of individually-mounted valves with a single station, reducing weld joints and leak paths. For low- and high-pressure refrigerants in pumped liquid, liquid injection, liquid drain and hot-gas lines, including R717 (ammonia) and R744 (CO2).
Specifications
- Part number
- 027L4597
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to +120 C
- Standard
- ANSI B 16.22
- Standard size
- 22 mm
Compatibility
ICF Flexline modular valve station for industrial refrigeration. This code is the factory build ICF 15-4-12 (Stop valve (ICFS 15), Filter (ICFF 15), Electronic expansion valve (ICFA 20), Stop valve (ICFS 20)). The station bolts into a 22 mm line (ANSI B 16.22, soldering); individual function modules can be serviced without removing the housing from the line. Confirm line size, connection standard, refrigerant and required functions match this configuration before ordering.
