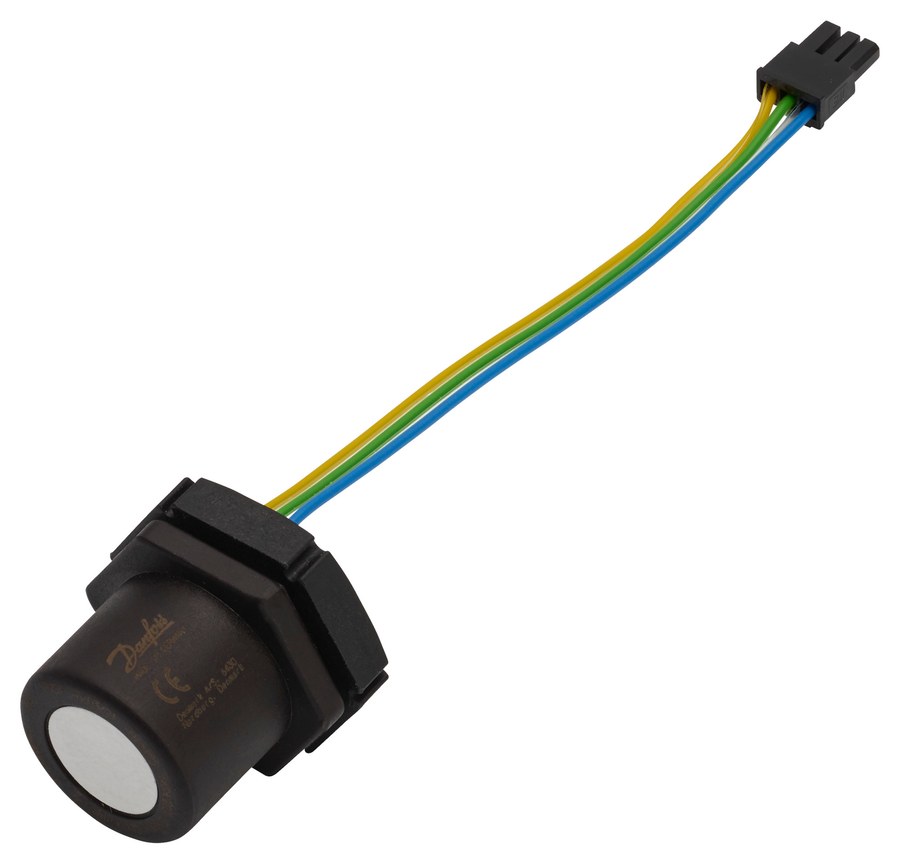

Danfoss GD replacement sensor cartridge, ammonia (R717) electrochemical, 0–100 ppm

Danfoss GD replacement sensor cartridge, code 148H6200, a field-replaceable electrochemical sensing head for Danfoss GD gas detection units monitoring ammonia (R717). Factory-calibrated 0–100 ppm cartridge with a polycarbonate housing; alarm set points 25/35 ppm. Plugs into the installed GD unit base so a sensor at end of life is renewed without replacing the whole detector or rewiring. Ships with a calibration certificate. Compatible across the GD unit versions. Operating temperature -30 to +50 °C. CE and UL marked. HS 9027.90. OEM P/N 148H6200.

Type

GD replacement sensor cartridge

Code number

148H6200

Detected gas

ammonia (R717)

Sensor technology

electrochemical

Measuring range

0–100 ppm

Pre-alarm (low) set point

25 ppm

Main alarm (high) set point

35 ppm

Cartridge housing material

polycarbonate

Operating temperature

-30 to +50 °C

Supplied with

calibration certificate

Fitment

field-replaceable head for Danfoss GD gas detection units

Approvals

CE; UL; EU RoHS; China RoHS

EAN

5714279924121

Net weight

0.022 Kilogram

Product group

Sensors

Alarm limits high [ppm]

35 ppm

Alarm limits low [ppm]

25 ppm

Approval

CE

CE mark

Yes

China RoHS compliance

Yes

Division

40

EU RoHS compliance

Yes

Gas detecting sensor version

Basic

Parts included

Sensor replacement

PFAS content [Yes/No]

No

REACH Candidate List substances

No

Refrigerants

R717

Refrigerants range [ppm] [max]

100 ppm

Refrigerants range [ppm] [min]

0 ppm

Sensor cartridge material

Polycarbonate

Sensor type

Electrochemical

Temperature range [°C] [max]

50 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

122 °F

Temperature range [°F] [min]

-22 °F

UL mark

Yes

Temperature Range

-30 to +50 °C

HS Code

9027.90
