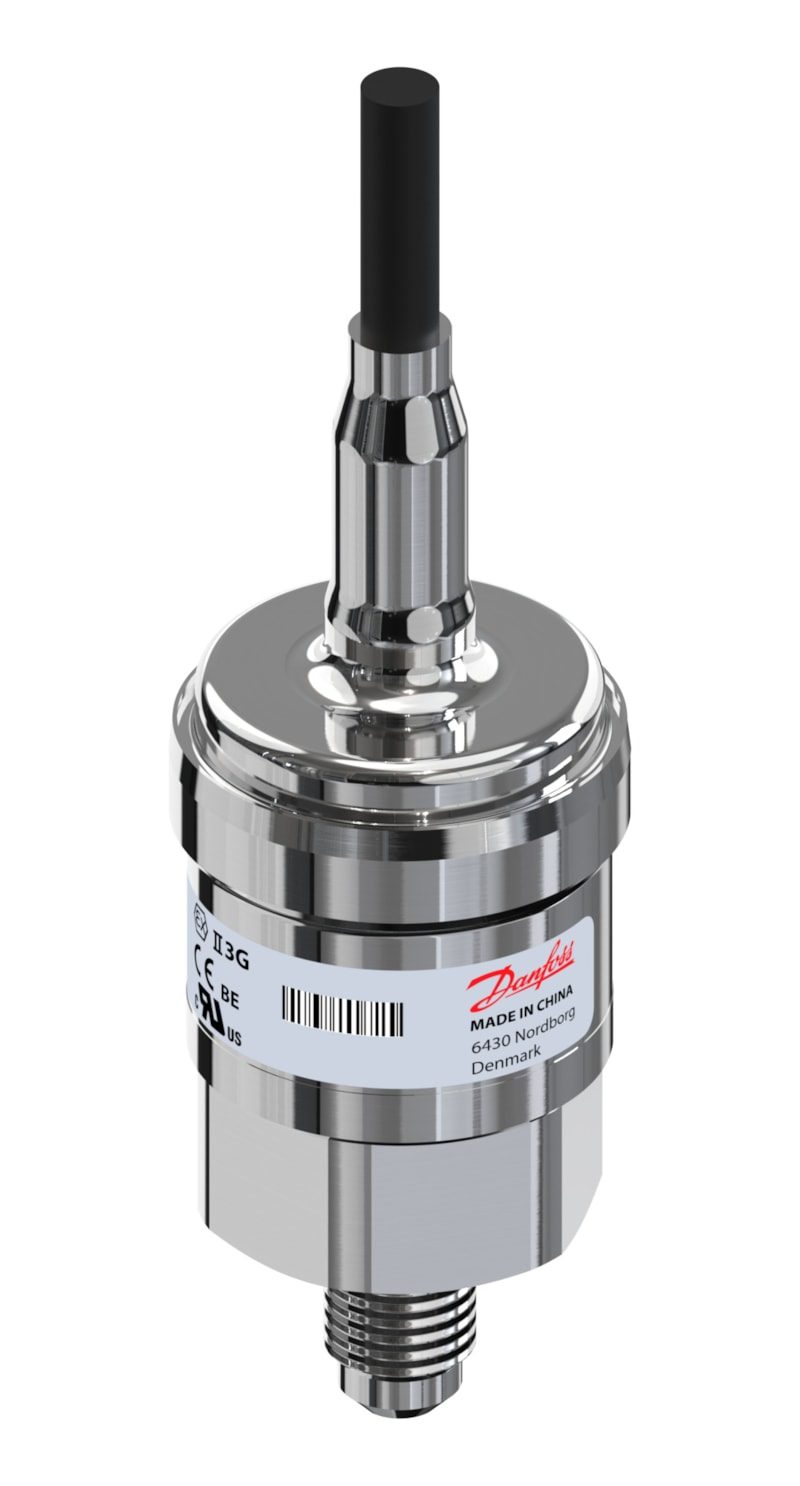

Danfoss AKS 3000 Pressure Transmitter 0–13.8 bar 4-20 mA UNF7/16-20
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 3000 pressure transmitter, genuine OEM code 060G1585. Output 4–20 mA (2-wire) over a measuring range of 0–13.8 bar (0–200 psi), supply voltage 9–32 V DC. Pressure connection UNF 7/16-20 (ASME B1.1); electrical connection Cable. Pressure reference sealed gauge. Accuracy ≤ ±1 % FS typical, ≤ ±2 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Approvals: ATEX Ex ec Gc (Zone 2 — gas group/temperature class per datasheet), CE, UL Recognized (C UL US), EAC / GOST. EAN 5702423130702.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G1585
- Type
- AKS 3000 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–13.8 bar (0–200 psi)
- Reference
- Sealed gauge
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±1 % FS typical, ≤ ±2 % FS maximum
- Pressure connection
- UNF 7/16-20 (ASME B1.1)
- Electrical connection
- Cable
- Wetted parts
- AISI 316L stainless steel
- Ambient temperature
- -40 °C to +85 °C ambient
- Enclosure rating
- IP67
- EAN
- 5702423130702
- Approvals
- ATEX Ex ec Gc (Zone 2 — gas group/temperature class per datasheet), CE, UL Recognized (C UL US), EAC / GOST
- HS code
- 9026.20
- Net weight
- 0.193 Kilogram
- Product group
- Sensors
- + supply
- Red
- - common
- Black
- Accuracy, max. [±FS%]
- 2 %
- Accuracy, typical [±FS%]
- 1 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- Cable length [in]
- 47 in
- Cable length [m]
- 1.2 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702423130702
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [psi]
- 750 psi
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 13.8 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 200 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 3000-6231-D3BC08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- UNF 7/16-20 (ASME B1.1)
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- UNF 7/16-20 (ASME B1.1)
- Pressure Rating
- 0–13.8 bar (0–200 psi)
- Temperature Range
- -40 °C to +85 °C ambient
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits. AKS 3000 sealed gauge reference; UNF 7/16-20 (ASME B1.1) process connection, Cable.
