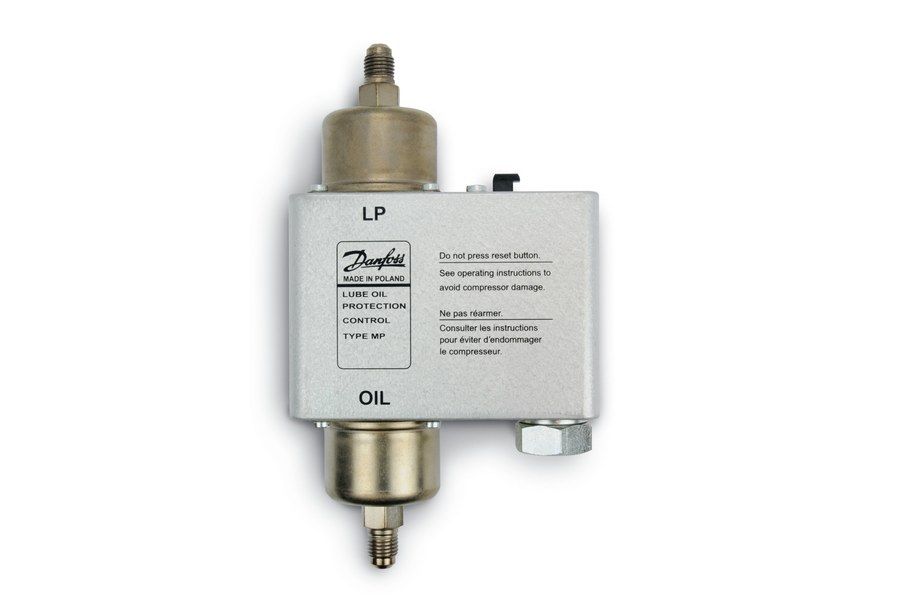

Danfoss MP55 oil differential pressure switch, 0.3 bar–4.5 bar adjustable, manual (minimum) reset, 120 s time delay, 1/4 in flare
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MP55 oil differential pressure switch, genuine OEM code number 060B017391. Protects a refrigeration or air-conditioning compressor against loss of lubricating oil pressure by monitoring the differential between oil-pump pressure and crankcase (suction) pressure and cutting out when it falls below the set value. Adjustable differential 0.3 bar–4.5 bar via the setting disc, factory set 0.65 bar, with readable internal scale; manual (minimum) reset with a 120 s time-delay relay that allows oil pressure to build during start-up. SPDT contact system, 1/4 in flare (DIN 8906) pressure connection, screwed cable entry (Pg 13.5), IP20 enclosure. Max. working pressure 17 bar. Suitable for HCFC and non-flammable HFC refrigerants. EAN 5702424499754.
Technical Specifications
- Brand
- Danfoss Part number (code number): 060B017391 Type: MP55 oil differential pressure switch (lubrication safety control) Category: Sensors & Instrumentation — Pressure Switches Function: cuts out on falling oil pressure (differential of oil-pump pressure over crankcase pressure) Differential setting: 0.3 bar–4.5 bar (4.3 psi–65 psi), factory set 0.65 bar Reset: manual (minimum) Time-delay relay: 120 s (allows oil pressure to build at compressor start-up) Contact system: SPDT Contact rating: AC15=2 A, 250 V DC13=0.2 A, 250 V Pressure connection: 1/4 in flare (DIN 8906) Max. working pressure: 17 bar (245 psig) Max. test pressure: 22 bar Operating range, LP side: -1 bar to 12 bar Electrical connection: Screwed cable entry Pg 13.5 Enclosure rating: IP20 Ambient temperature: -40 °C to 60 °C Refrigerant compatibility: HCFC and non-flammable HFC (e.g. R22, R134a, R404A, R407C, R448A, R449A, R450A, R513A) Packing: Multi pack (21 pc) EAN: 5702424499754 HS code: 9026.20
Standards & Compliance
- Size / Series
- 1/4 in flare (DIN 8906)
- Material
- Bellows-type differential pressure element; IP20 enclosure
- Thread Standard
- 1/4 in flare (DIN 8906)
- Pressure Rating
- max. working pressure 17 bar (245 psig); test 22 bar
- Temperature Range
- -40 °C to 60 °C ambient
- IP Rating
- IP20
- HS Code
- 9026.20
Compatibility & Fitment
MP55 lube-oil protection control for reciprocating and scroll refrigeration/AC compressors. MP55/MP55A differential is adjustable via the setting disc. The 120 s variant is distinct from the other MP time-delay/reset options — verify the required time delay and reset (manual vs automatic) for the compressor.
