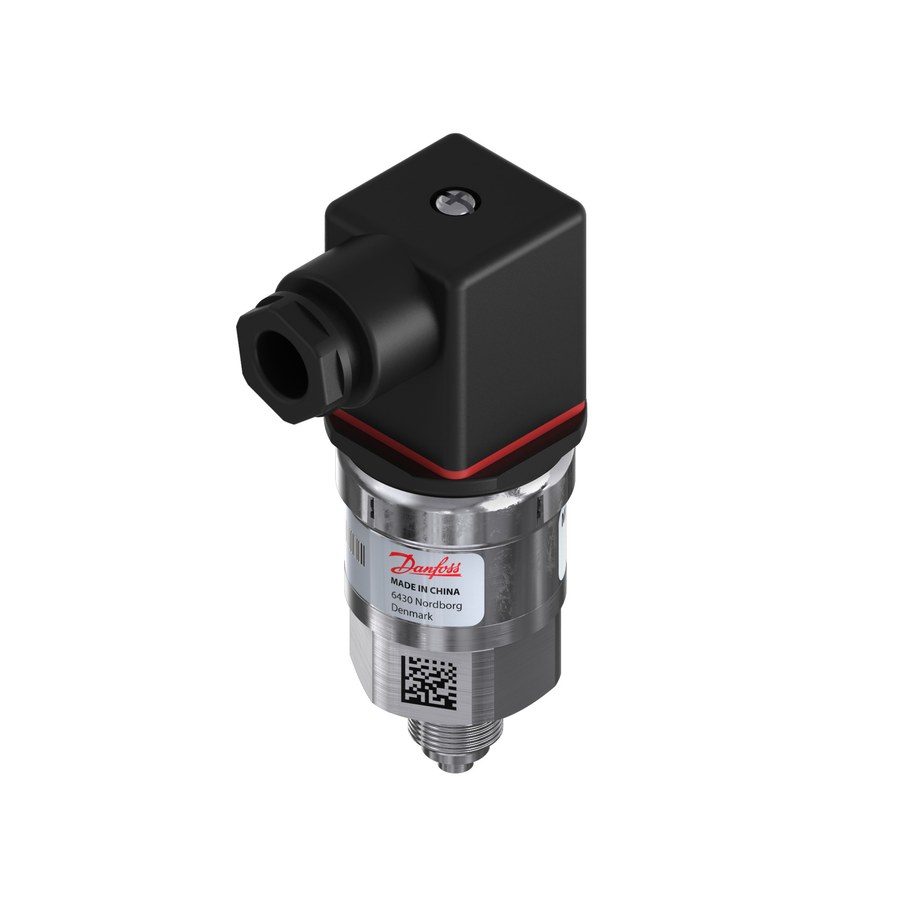

Danfoss MBS 3000 Pressure Transmitter 0–1.6 bar 4-20 mA G1/4

Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G1572. Output 4–20 mA (2-wire) over a measuring range of 0–1.6 bar (0–23.2 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 (EN 837); electrical connection Angular connector Pg 9 (EN 175301-803-A). Pressure reference absolute. Accuracy ≤ ±0.5 % FS typical, ≤ ±1 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec Gc (Zone 2 — gas group/temperature class per datasheet), CE, UL Recognized (C UL US). EAN 5702423129386.

Brand

Danfoss

Part number

060G1572

Type

MBS 3000 pressure transmitter

Category

Sensors & Instrumentation — Pressure Transmitters

Measuring range

0–1.6 bar (0–23.2 psi)

Reference

Absolute

Output signal

4–20 mA (2-wire)

Supply voltage

9–32 V DC

Accuracy

≤ ±0.5 % FS typical, ≤ ±1 % FS maximum

Pressure connection

G 1/4 (EN 837)

Electrical connection

Angular connector Pg 9 (EN 175301-803-A)

Wetted parts

AISI 316L stainless steel

Ambient temperature

-40 °C to +85 °C ambient

Enclosure rating

IP65

EAN

5702423129386

Approvals

ATEX Ex ec Gc (Zone 2 — gas group/temperature class per datasheet), CE, UL Recognized (C UL US)

HS code

9026.20

Net weight

0.153 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702423129386

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

9.6 bar

Overload pressure max. [psi]

139 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

1.6 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

23.2 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3000-1221-A1AB04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Size / Series

G 1/4 (EN 837)

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 (EN 837)

Pressure Rating

0–1.6 bar (0–23.2 psi)

Temperature Range

-40 °C to +85 °C ambient

IP Rating

IP65

HS Code

9026.20
