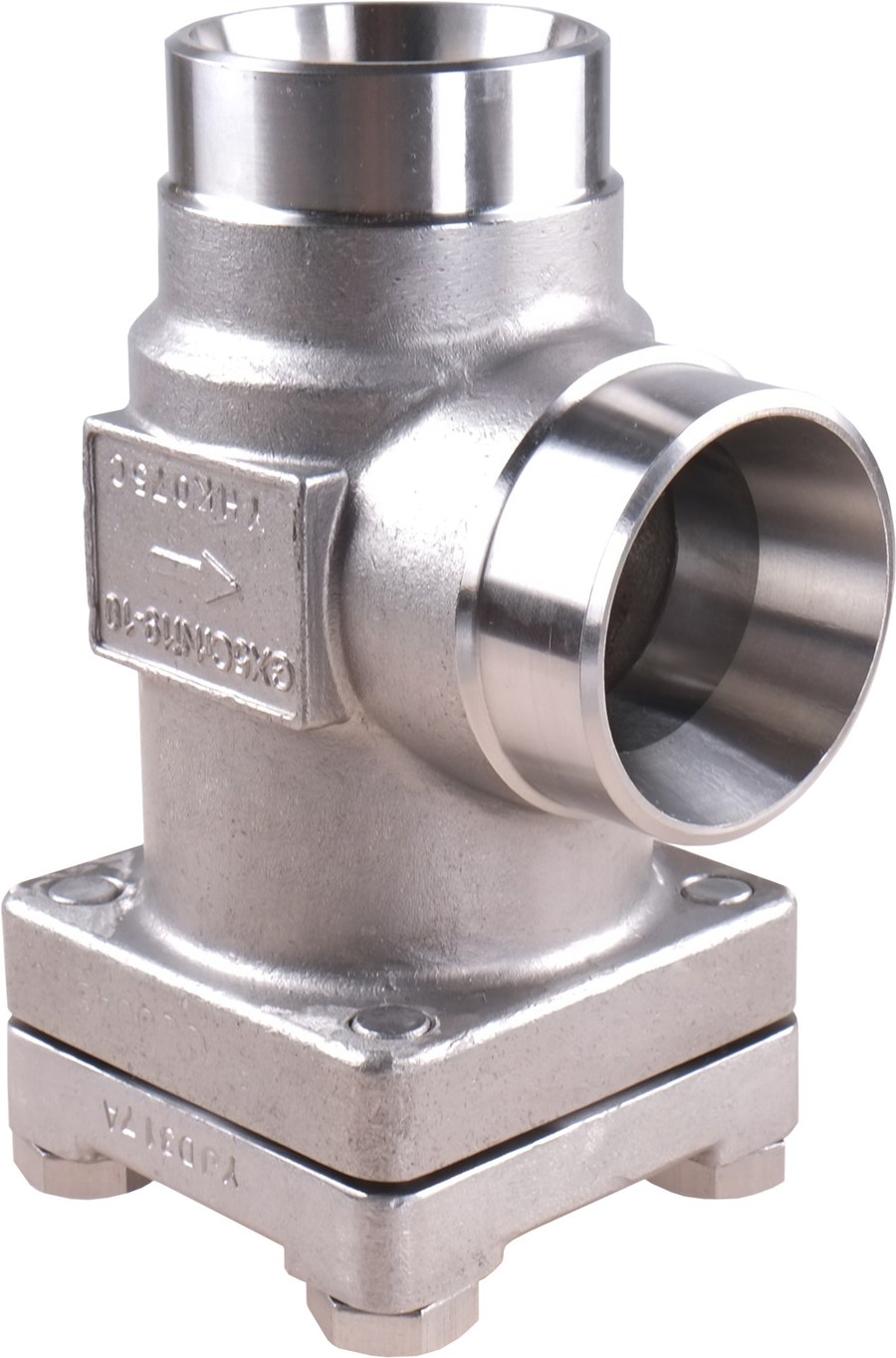

Danfoss FIA SS 40 angleway strainer housing, 40 mm (1 1/2 in) butt weld, 52 bar, stainless steel (code 148B5666)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 40 angleway strainer housing for the SVL Flexline industrial-refrigeration range, code 148B5666. The FIA is an in-line strainer fitted ahead of automatic controls, pumps and compressors to protect them from weld scale, swarf and dirt — at initial plant start-up and, with a fine insert, for permanent filtration. This SKU is the stainless steel housing with bolted cover, 40 mm (1 1/2 in) butt weld connections. The filter element is the separate FIA INS strainer insert (available 38, 72, 100, 150, 250 and 500 micron, plain or pleated) and is removed for cleaning without breaking the line connections. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B5666
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 40 mm
Compatibility
Danfoss SVL Flexline FIA strainer housing. Select by nominal size (40 mm / 1 1/2 in), flow pattern (angleway) and connection (butt weld). FIA SS = stainless-steel body for corrosive or hygienic duty. Order the matching FIA INS strainer insert separately for the required filtration grade (coarse 500 micron for start-up clean-down; fine 38-150 micron for permanent filtration). Butt-weld and socket-weld bodies are not interchangeable — confirm the pipe-end preparation before ordering.
Approvals
