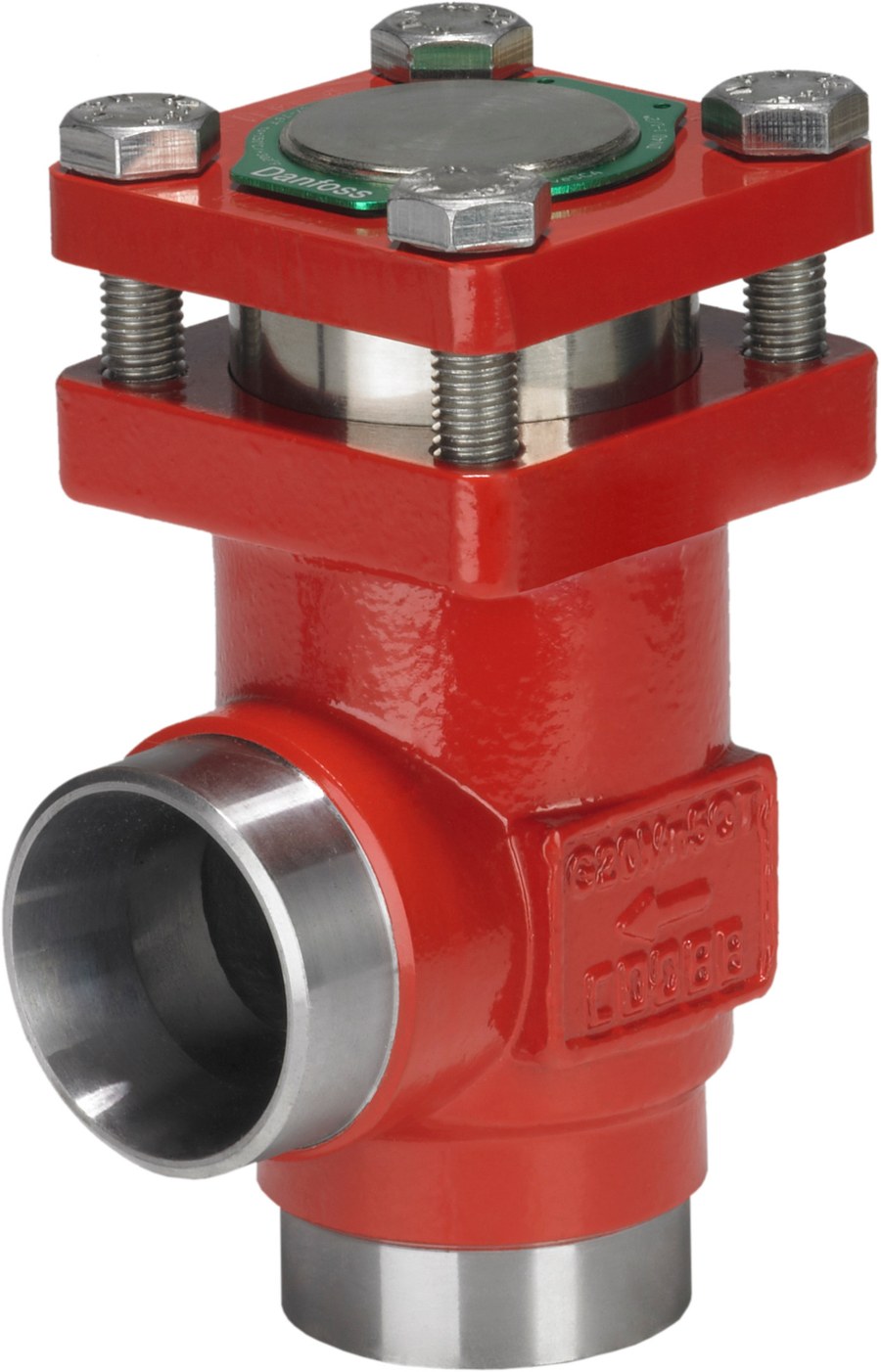

Danfoss CHV-X 50 angleway check valve, 50 mm (2 in) butt weld, 52 bar, steel (code 148B5737)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss CHV-X 50 check (non-return) valve for the SVL Flexline industrial-refrigeration range, code 148B5737. The CHV-X permits refrigerant flow in one direction only and closes to prevent back-flow toward pumps, compressors and vessels. The cold-resistant steel housing carries a spring-loaded, guided cone with a V-port profile that throttles below roughly 25% lift to suppress valve chatter and noise. This SKU is the angleway body with 50 mm (2 in) butt-weld connections to ASME B 36.10M Schedule 40. Flow coefficient Kv 45 m3/h (Cv 53 gal/min); minimum opening differential pressure 0.04 bar (0.62 psi); flow direction marked by an embossed 1-way arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform and serviceable with SVL Flexline spare parts.
Specifications
- Part number
- 148B5737
- HS code
- 8481.30
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline CHV-X check valve. Select by nominal size (50 mm / 2 in), flow body (angleway) and connection standard (ASME B 36.10M Schedule 40 butt weld). EN 10220 and ASME B 36.10M Schedule 40 weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. The CHV-X is check-only; where an integral hand shut-off is also required, use the SCA-X stop/check valve of the same size. Mount with the embossed arrow in the direction of intended flow.
Approvals
