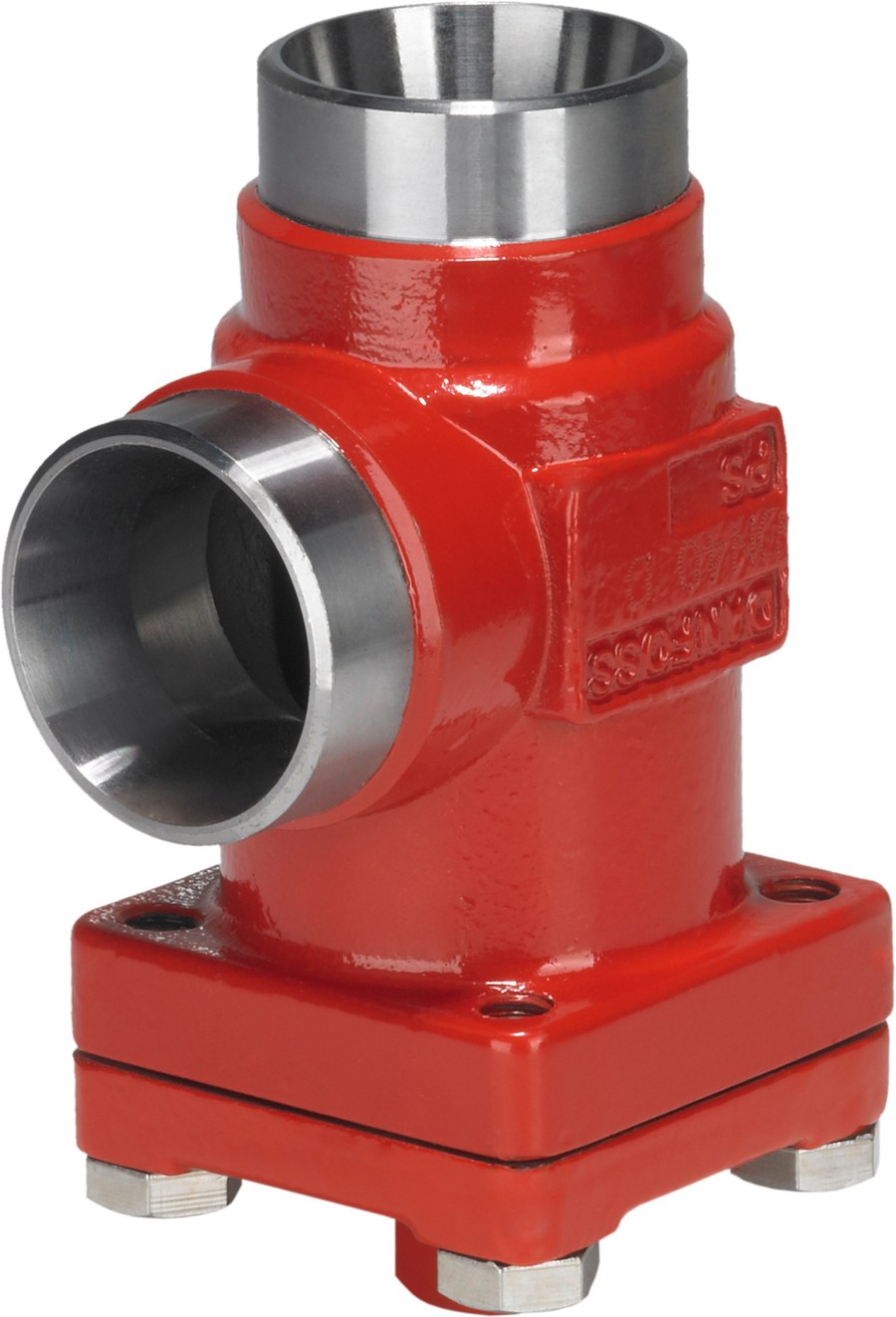

Danfoss FIA 20 angleway strainer housing, 20 mm (3/4 in) socket weld, 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 20 angleway strainer housing for the SVL Flexline industrial-refrigeration range, code 148B5345. The FIA is an in-line strainer fitted ahead of automatic controls, pumps and compressors to protect them from weld scale, swarf and dirt — at initial plant start-up and, with a fine insert, for permanent filtration. This SKU is the steel housing with bolted cover, 20 mm (3/4 in) socket weld connections to ASME B16.11. The filter element is the separate FIA INS strainer insert (available 38, 72, 100, 150, 250 and 500 micron, plain or pleated) and is removed for cleaning without breaking the line connections. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- Strainer housing, FIA 20 (SVL Flexline)
- Code number
- 148B5345
- Series
- FIA (SVL Flexline)
- Nominal size
- 20 mm (3/4 in)
- Flow pattern
- Angleway
- Connection
- Socket weld (ASME B16.11)
- Housing material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Filter element
- separate FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) — not included
- Equipment
- bolted cover
- Product group
- Filters and strainers
- Approvals
- CE
- Compliance
- EU RoHS, China RoHS
- Net weight
- 1.29 kg
- EAN
- 5702428475389
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2003:X:20)
- Connection material
- Steel
- Connection standard
- ASME B 16.11
- Cv value [gal/min] 100 plain
- 31.26 gal/min
- Cv value [gal/min] 100 pleated
- 38.75 gal/min
- Cv value [gal/min] 150 plain
- 30.38 gal/min
- Cv value [gal/min] 38 plain
- 33.9 gal/min
- Cv value [gal/min] 72 plain
- 32.14 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3/4 in
- Inlet connection size [mm]
- 20 mm
- Inlet connection type
- Socket weld
- Kv value [m3/h] µ100 plain
- 6.9 m³/h
- Kv value [m3/h] µ150 plain
- 7.1 m³/h
- Kv value [m3/h] µ150 pleated
- 8.8 m³/h
- Kv value [m3/h] µ250 plain
- 7.3 m³/h
- Kv value [m3/h] µ500 plain
- 7.7 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3/4 in
- Outlet connection size [mm]
- 20 mm
- Outlet connection type
- Socket weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 20 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA strainer housing. Select by nominal size (20 mm / 3/4 in), flow pattern (angleway) and connection (socket weld, ASME B16.11). Steel body. Order the matching FIA INS strainer insert separately for the required filtration grade (coarse 500 micron for start-up clean-down; fine 38-150 micron for permanent filtration). Butt-weld and socket-weld bodies are not interchangeable — confirm the pipe-end preparation before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss FIA 25 straightway strainer housing, 25 mm (1 in) butt weld, 52 bar, steel
148B5447
Danfoss
Danfoss FIA 32 straightway strainer housing, 32 mm (1 1/4 in) butt weld, 52 bar, steel
148B5544
Danfoss
Danfoss FIA 40 angleway strainer housing, 40 mm (1 1/2 in) butt weld, 52 bar, steel
148B5642
Danfoss
Danfoss FIA SS 40 angleway strainer housing, 40 mm (1 1/2 in) butt weld, 52 bar, stainless steel
148B5666
Danfoss
Danfoss FIA 50 straightway strainer housing, 50 mm (2 in) butt weld, 52 bar, steel
148B5713
Danfoss
Danfoss FIA 50 straightway strainer housing, 50 mm (2 in) socket weld, 52 bar, steel
148B5717
Danfoss
Danfoss FIA 65 straightway strainer housing, 65 mm (2 1/2 in) butt weld, 52 bar, steel
148B5813
Danfoss

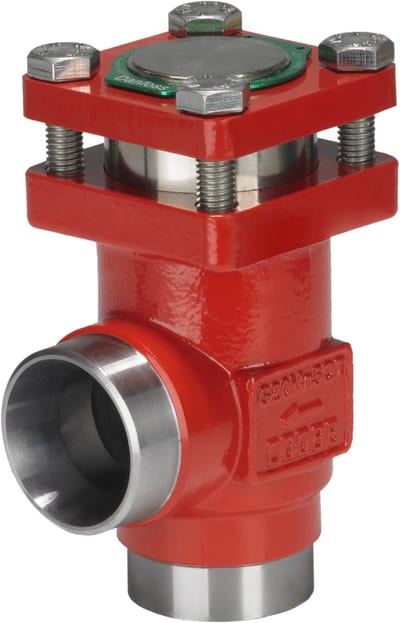

Danfoss CHV-X 50 angleway check valve, 50 mm (2 in) butt weld, 52 bar, steel (code 148B5736)
