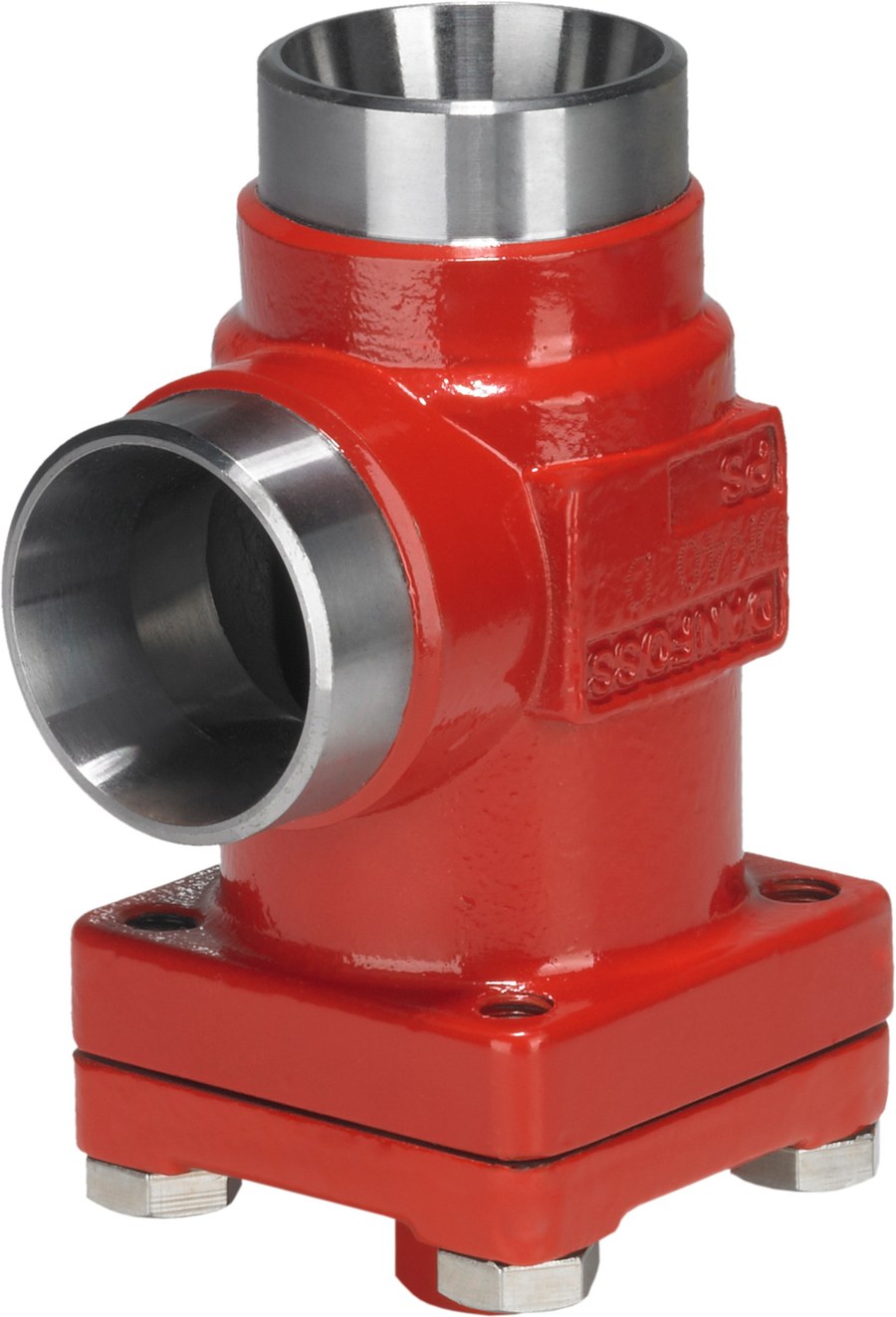

Danfoss FIA 15 angleway strainer housing, 15 mm (1/2 in) npt ANSI/ASME B1.20.1, 52 bar, steel

Danfoss FIA 15 strainer (filter) housing for the SVL Flexline industrial-refrigeration range, code 148B5246. The FIA is an in-line strainer that protects downstream valves, pumps and controls by holding a replaceable filter insert in the flow; the housing is common and the filtration fineness is set by the chosen insert (µ100, µ150, µ250 or µ500, plain or pleated). This SKU is the angleway housing in 15 mm (1/2 in) npt connections to ANSI/ASME B1.20.1. Flow coefficient by insert: µ100 3.3 / µ150 3.4 / µ150 pleated 4.2 / µ250 3.5 / µ500 3.7 m3/h. Steel housing rated 52 bar (754 psig) maximum working pressure, media temperature -60 to 150 C (-76 to 302 F). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Built on the SVL Flexline modular platform — the complete top part is interchangeable across the SVA-S/SVA-L, REG and SCA-X functions; the filter insert is serviced without removing the housing from the line. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Type

FIA 15 (SVL Flexline strainer housing)

Code number

148B5246

Series

FIA (SVL Flexline)

Function

In-line strainer / filter housing (replaceable insert)

Nominal size

15 mm (1/2 in)

Flow direction body

Angleway

Connection

NPT (ANSI/ASME B1.20.1)

Housing material

Steel

Kv value (by insert)

µ100 3.3 / µ150 3.4 / µ150 pleated 4.2 / µ250 3.5 / µ500 3.7 m3/h

Filter inserts

µ100, µ150, µ250, µ500 (plain or pleated)

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Fluid groups

1, 2

Conformity assessment

PED Article 4, paragraph 3 (sound engineering practice)

Approvals

CE

Net weight

1.266 kg

EAN

5702428475433

Product group

Strainers

China RoHS compliance

Yes

Colour Paint

Reddish brown

Connection Code

(2020:P140:15)

Connection material

Steel

Connection standard

ANSI/ASME B1.20.1

Cv value [gal/min] 100 plain

14.97 gal/min

Cv value [gal/min] 100 pleated

18.49 gal/min

Cv value [gal/min] 150 plain

14.53 gal/min

Cv value [gal/min] 38 plain

16.29 gal/min

Cv value [gal/min] 72 plain

15.41 gal/min

Direction

Angleway

Equipment

Cover

EU RoHS compliance

Yes

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Inlet connection size [in]

1/2 in

Inlet connection size [mm]

15 mm

Inlet connection type

NPT

Inlet Internal/External

Internal

Kv value [m3/h] µ100 plain

3.3 m³/h

Kv value [m3/h] µ150 plain

3.4 m³/h

Kv value [m3/h] µ150 pleated

4.2 m³/h

Kv value [m3/h] µ250 plain

3.5 m³/h

Kv value [m3/h] µ500 plain

3.7 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

1/2

Outlet connection size [mm]

15 mm

Outlet connection type

NPT

Outlet Internal/External

Internal

PED category

Art. 4, par. 3

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version

Size / Series

15 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
