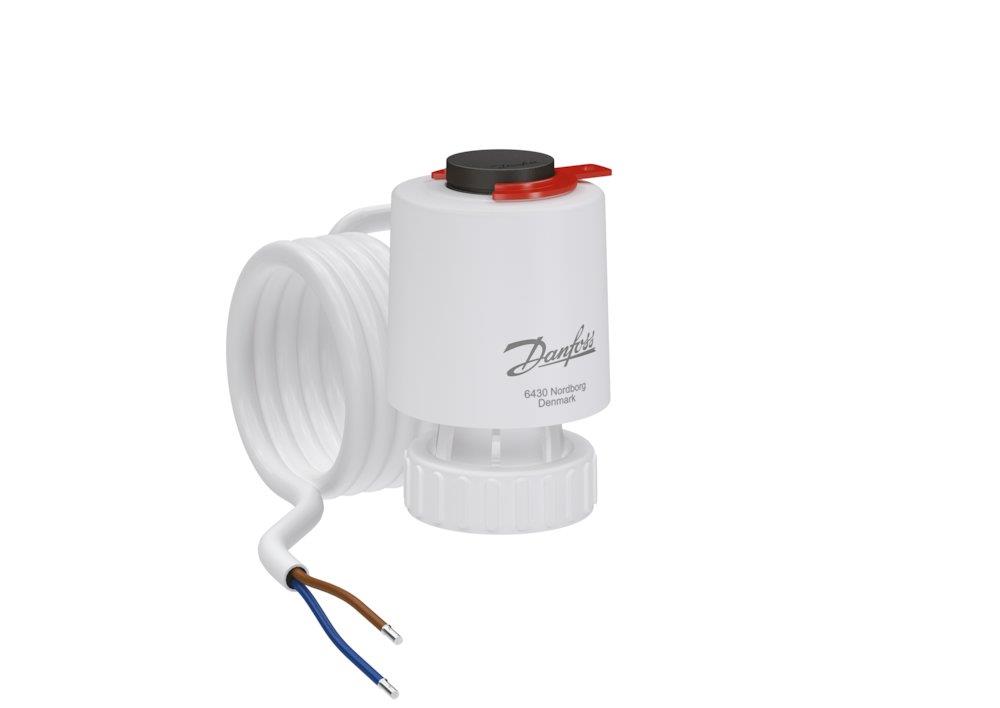

Danfoss TWA-Q Thermo Actuator with halogen-free cable - 24V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TWA-Q Thermo Actuator with halogen-free cable. Control valves and accessories (Plumbing / Heat / Valves for heating and cooling systems). Principal data: supply voltage 24 V AC. Supplied under manufacturer part number 082F1611, EAN 5702425243202, HS code 8412.80, country of origin Bulgaria.
Technical Specifications
- Product type
- Control valves and accessories
- Product group
- Heat
- Supply voltage
- 24 V AC
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 0.5738 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 84128080
- HS code
- 8412.80
- Manufacturer part number
- 082F1611
- VVS number
- 460956011
- EAN
- 5702425243202
- Net weight
- 0.209 Kilogram
- Type
- TWA-Q
- Actuator type
- Thermal
- Ambient temperature [°C] [max]
- 60 °C
- Ambient temperature [°C] [min]
- 2 °C
- Application
- HVAC
- Approval standard
- EC EN 60730
- Cable included
- Yes
- Cable insulation material
- Halogen free
- Cable length [m]
- 2 m
- China RoHS compliance
- Out of scope
- Closing force [N]
- 110 N
- Compatibility with valve
- AB-QM DN 15-32
- Control signal type
- On/off and PWM
- De-energized position
- Normally closed
- Description
- TWA-Q, 24V, 5mm, Normally Closed thermal actuator, 2m halogen free cable, for AB-QM DN15-32 valves
- Electrical Protection Class according to EN60730-1
- III
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- IP protection class
- IP54
- Power consumption [W]
- 2 W
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 5 mm
- Supply voltage [V]
- 24 V AC/DC
- Valve connection
- M30 x 1.5
Standards & Compliance
- HS Code
- 8412.80
Cross References
- MPN 082F1611
- EAN 5702425243202
- VVS 460956011
Product Documentation
More from Danfoss
Danfoss
Danfoss AK012C Coil - 12 V AC, 3/2,5W
042N0846
Danfoss
Danfoss VM 2 Seat Valve 2-Way - 15, 3/4", Nipple, 0.63M³/h
10128003
Danfoss

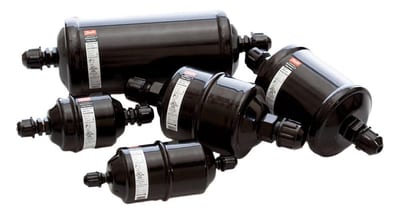

Danfoss DML Dryer Filter - 1/2" flare, R22, R23, R32, R134A, R404A, R407A, R407C, R407F, R410A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454B (XL41), R454C (XL20), R455A, R507, R513A, R1234YF, R1233ZD, R1234ZE, DML304
023Z0050
Danfoss

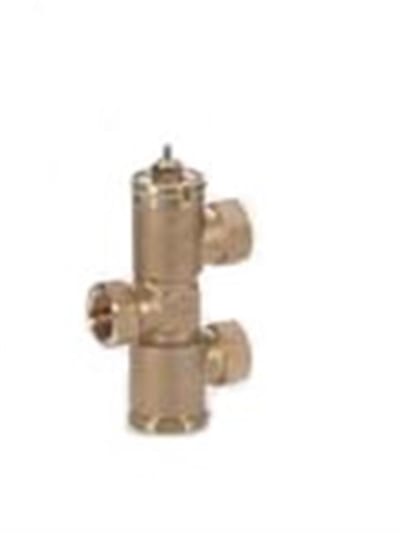

Danfoss KOVM Mixing Valve 3-Way - 15, 1/2", 2M³/h
013U3020
Danfoss

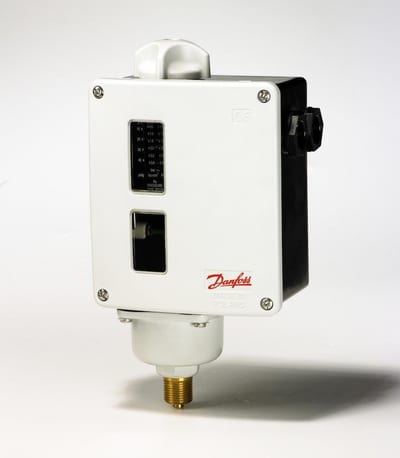

Danfoss RT 121 Pressure Switch - 1-0bar
733766
Danfoss

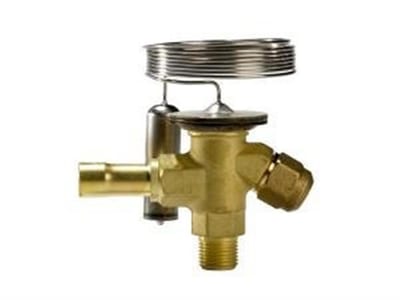

Danfoss T 2 Thermostatic expansion valve flare/solder - R134A, R513A, Intern, -40-10°C, TN 2 R134A
068Z3383
Danfoss

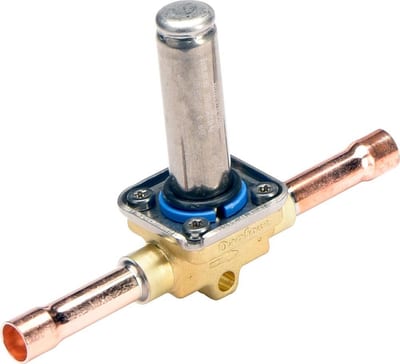

Danfoss EVR Solenoid Valve solder - 0.27M³/h, 1/4" solder, 5kW, 3.8kW, 5.1kW, R22, R32, R134A, R290, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R452B, R454B (XL41), R513A, R600, R600A, R1234YF, R438A, R454C (XL20), R455A, R454A (XL40), R507, EVR 3S
5702422021995
Danfoss

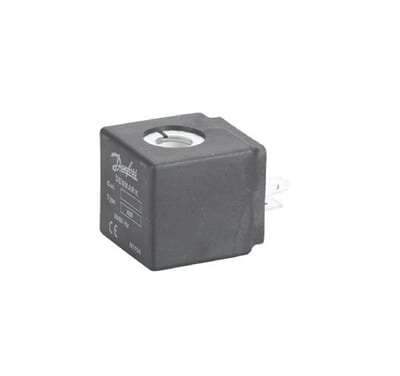

Danfoss Coil - 110 V AC, 7,5/5,5W
