Product Description

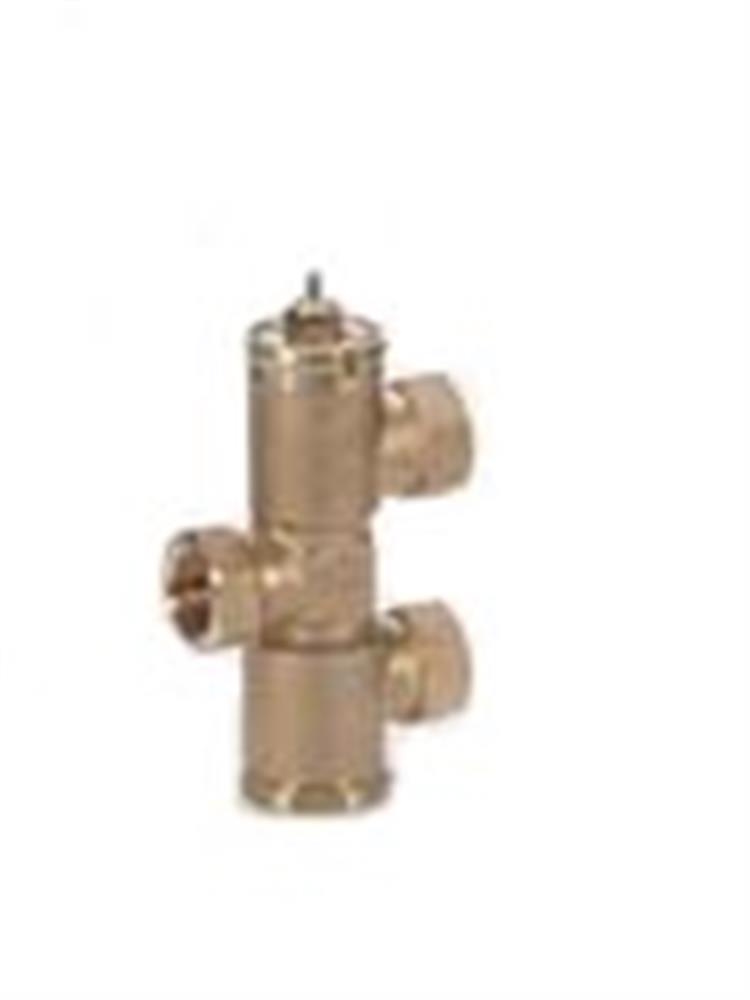

Danfoss KOVM Mixing Valve 3-way. Seat valves (Plumbing / Heat / Valves for heating and cooling systems). Principal data: dn dimension 15, thread 1/2", kvs value 2 m³/h. Supplied under manufacturer part number 013U3020, EAN 5702421300442, HS code 8481.80, country of origin Slovenia.
Technical Specifications
- Product type
- Seat valves
- Product group
- Heat
- DN dimension
- 15
- Thread
- 1/2"
- Kvs value
- 2 m³/h
- Sales unit
- Pack, Plt.
- Carbon footprint (EPD)
- 4.8518 kg CO2e per pcs
- Country of origin
- Slovenia
- Customs tariff code (EU CN)
- 84818079
- HS code
- 8481.80
- Manufacturer part number
- 013U3020
- VVS number
- 403264004
- EAN
- 5702421300442
- Net weight
- 0.645 Kilogram
- Type
- KOVM
- Application
- Heating and cooling
- Cavitation factor
- 0.5
- China RoHS compliance
- Out of scope
- Connection size
- Rp 1/2
- Connection standard
- ISO 7/1
- Connection types
- Internal thread
- Description
- KOVM PN10 15/2 3-way int. thread
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 1.6 bar
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flow characteristic
- Linear
- Function
- Control valve
- Function 2
- Mixing valve
- Kvs values [m³/h]
- 2 m³/h
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 90 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 3
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 6
- Pressure class
- PN 10
- Pressure nominal [bar]
- 10 bar
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Spindle material
- Stainless steel 18/8
- Spindle position
- Normally open
- Stroke [mm]
- 1.5 mm
- Valve body material
- Brass W. No 2.0402
- Valve cone material
- EPDM
- Valve size
- DN 15
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 013U3020
- EAN 5702421300442
- VVS 403264004
Product Documentation
