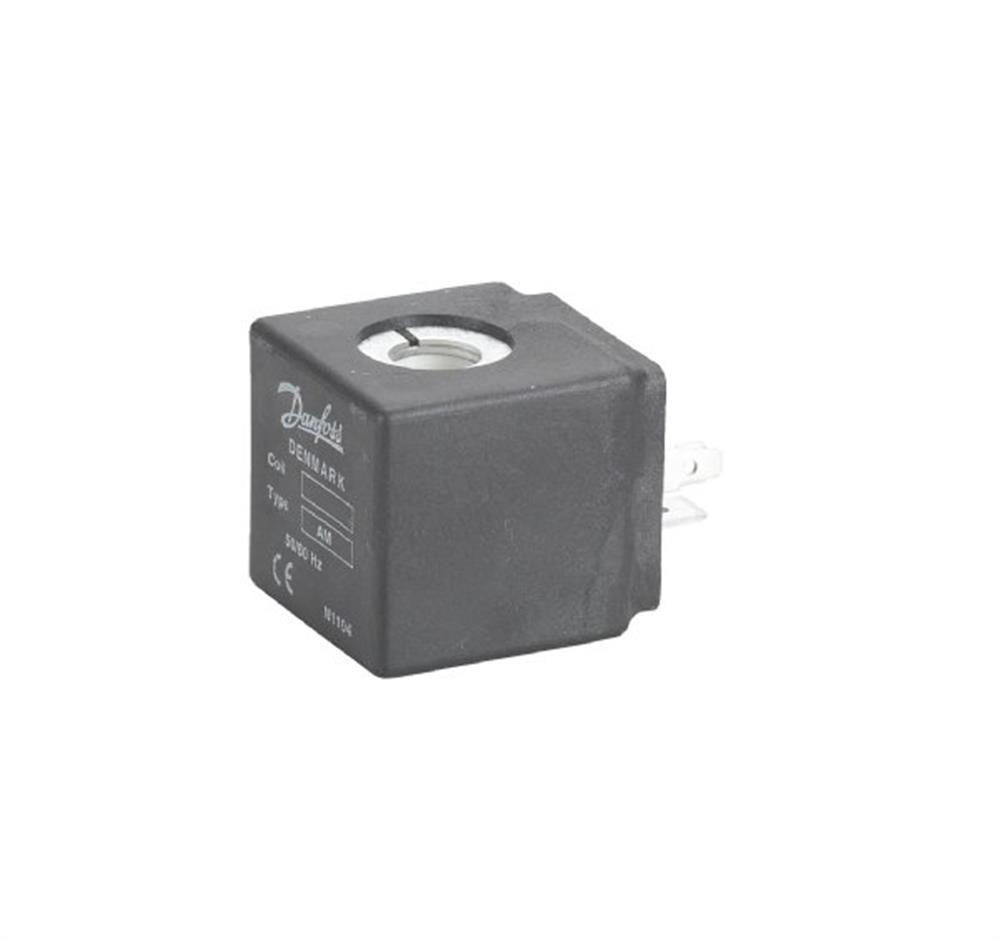

Danfoss Coil - 110 V AC, 7,5/5,5W
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Coil. Coils (Plumbing / Heat / Valves for heating and cooling systems). Principal data: voltage 110 V AC, power 7.5/5.5 W. Supplied under manufacturer part number 042N0845, EAN 5702423049943, HS code 8505.90, country of origin Poland.
Technical Specifications
- Product type
- Coils
- Product group
- Heat
- Voltage
- 110 V AC
- Power
- 7.5/5.5 W
- Frequency
- 50/60 Hz
- Carbon footprint (EPD)
- 1.1300 kg CO2e per pcs
- Environmental declaration
- EPD internally verified
- Country of origin
- Poland
- Customs tariff code (EU CN)
- 85059090
- HS code
- 8505.90
- Manufacturer part number
- 042N0845
- VVS number
- 470171110
- EAN
- 5702423049943
- Net weight
- 0.102 Kilogram
- Type
- AM110C
- Actuator size
- 9 mm
- Ambient temperature range [°C] [max]
- 50 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 122 °F
- Ambient temperature range [°F] [min]
- -40 °F
- China RoHS compliance
- Yes
- Coil connection
- DIN Spade
- Coil design standard
- VDE 0580
- Coil fastening
- Finger screw
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Black
- Duty rating
- Continuous
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP00
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- In scope of WEEE
- Yes
- Power consumption 50Hz [VA]
- 14 VA
- Power consumption 60Hz [VA]
- 11 VA
- Power consumption [W] 50Hz
- 7.5 W
- Power consumption [W] 60Hz
- 5.5 W
- REACH Candidate Strip substances
- No
- Supply voltage 50Hz Max [V]
- 110 V
- Supply voltage 60Hz Max [V]
- 110 V
- Type designation
- AM110C
Standards & Compliance
- HS Code
- 8505.90
Cross References
- MPN 042N0845
- EAN 5702423049943
- VVS 470171110
Product Documentation
More from Danfoss
Danfoss

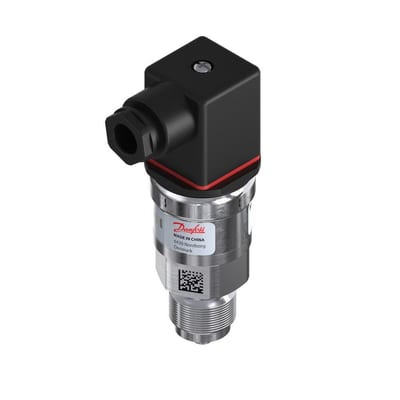

Danfoss MBS 33 Pressure Transmitter - G 1/2", 0-400bar
060G3019
Danfoss

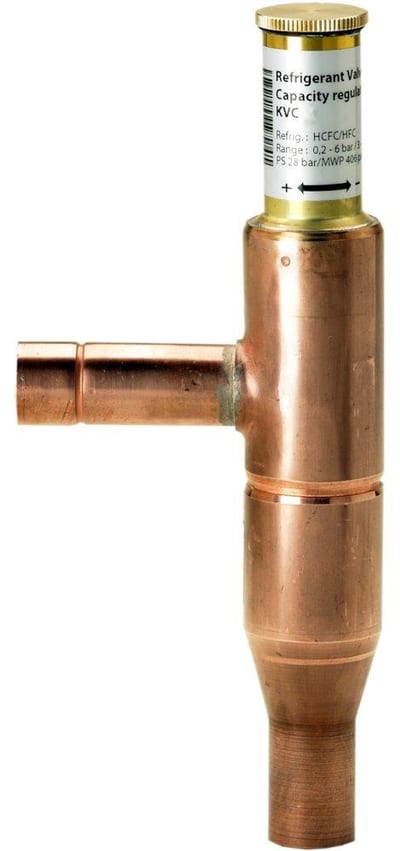

Danfoss KVC Capacity Regulator - 28bar, 0.68M³/h, 1/2" solder, KVC 12
10400971
Danfoss

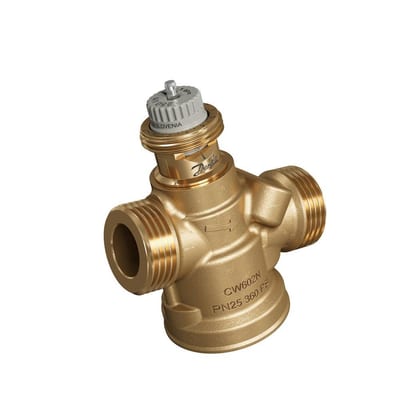

Danfoss AVQML Flow Limiter - 20, Nipple/nipple, 1" 10465316
Danfoss

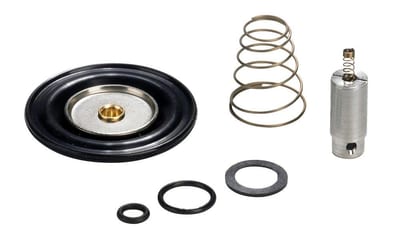

Danfoss Spare Part Set - 10248428
042U1038
Danfoss

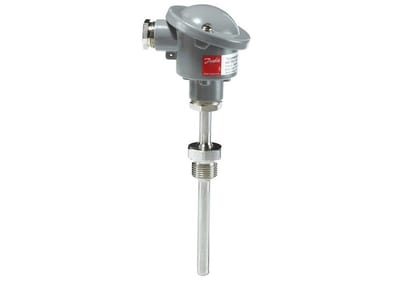

Danfoss MBT 3252 Sensor - 1/2", 250mm
10248032
Danfoss

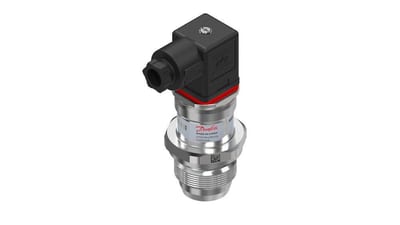

Danfoss MBS 4010 Pressure Transmitter - 1", 0-10bar
060G2426
Danfoss

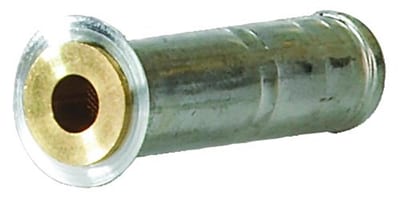

Danfoss T2/TE2 Nozzle insert solder - 3, T2 - serie, Dyse 03 T2
068-2093
Danfoss

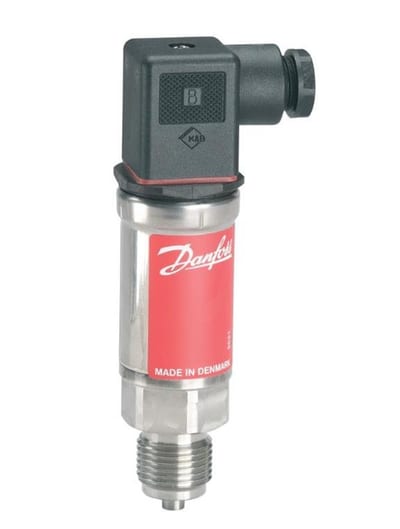

Danfoss MBS 33 Pressure Transmitter - 1/2", 0-10bar
