Product Description

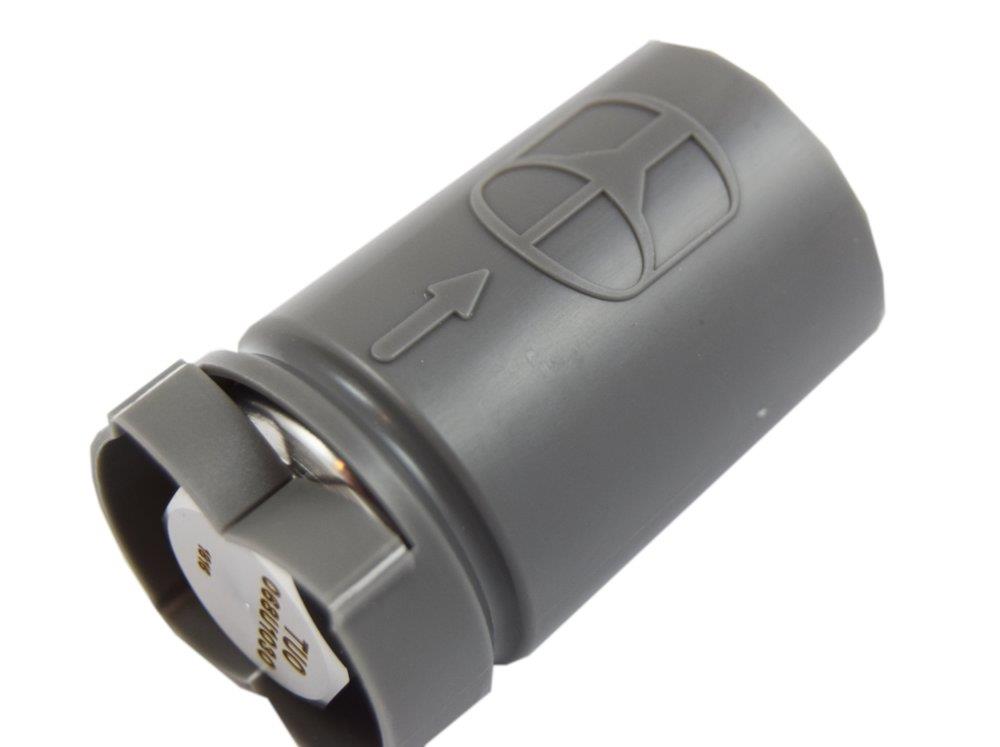

Danfoss TUA Nozzle insert. Accessories and spare parts for expansion valves (Refrigeration technology / Cooling technical components / Expansion valves). Principal data: orifice size 2, fits with TUA series, type designation Dyse 2 TUA. Supplied under manufacturer part number 068U1032, HS code 8481.80, country of origin Denmark.
Technical Specifications
- Product type
- Accessories and spare parts for expansion valves
- Product group
- Cooling technical components
- Orifice size
- 2
- Fits with
- TUA series
- Type designation
- Dyse 2 TUA
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.3340 kg CO2e per pcs
- Country of origin
- Denmark
- Customs tariff code (EU CN)
- 84818099
- HS code
- 8481.80
- Manufacturer part number
- 068U1032
- EAN
- 5702422186564
- Net weight
- 0.042 Kilogram
- Type
- ORF
- Approval
- EAC
- China RoHS compliance
- Yes with exemptions
- Direction
- Straightway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- Rated cap. R134a, Range N [kW]
- 1 kW
- Rated cap. R134a, Range N [TR]
- 0.28 TR
- Rated cap. R22, Range B [kW]
- 0.85 kW
- Rated cap. R22, Range B [TR]
- 0.24 TR
- Rated cap. R22, Range N [kW]
- 1.3 kW
- Rated cap. R22, Range N [TR]
- 0.36 TR
- Rated cap. R404A, Range B [kW]
- 0.64 kW
- Rated cap. R404A, Range B [TR]
- 0.18 TR
- Rated cap. R404A, Range N [kW]
- 1 kW
- Rated cap. R404A, Range N [TR]
- 0.28 TR
- Rated cap. R407C, Range B [kW]
- 0.7 kW
- Rated cap. R407C, Range B [TR]
- 0.2 TR
- Rated cap. R407C, Range N [kW]
- 1.4 kW
- Rated cap. R407C, Range N [TR]
- 0.38 TR
- Rated cap. R410A, Range N [kW]
- 2.1 kW
- Rated cap. R410A, Range N [TR]
- 0.6 TR
- Rated cap. R507, Range B [kW]
- 0.7 kW
- Rated cap. R507, Range B [TR]
- 0.2 TR
- Rated cap. R507, Range N [kW]
- 1 kW
- Rated cap. R507, Range N [TR]
- 0.27 TR
- Rated cap. R513A, Range N [kW]
- 0.62 kW
- Rated cap. R513A, Range N [TR]
- 0.18 TR
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R1234yf
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- Used for product
- TUA
Standards & Compliance
- HS Code
- 8481.80
Cross References
- MPN 068U1032
Product Documentation
More from Danfoss
Danfoss

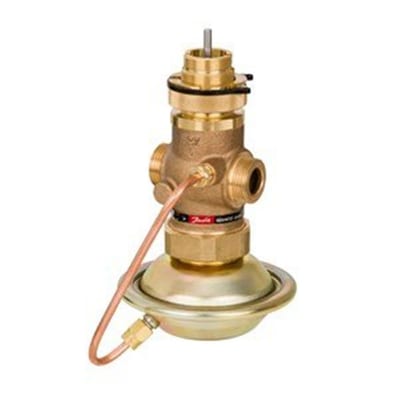

Danfoss AVQM Flow Limiter - 15, Nipple/nipple, 3/4", 1.6M³/h
4006956
Danfoss

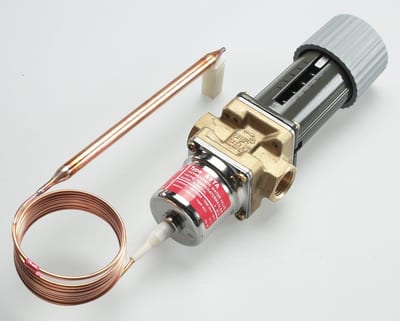

Danfoss AVTA 20 Thermostatic Valve with socket connection - 10°C, 80°C, 3.4M³/h
003N0108
Danfoss

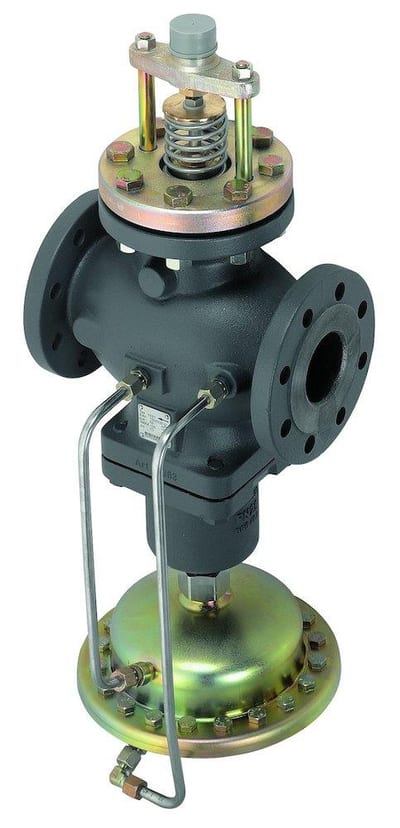

Danfoss AFQM Flow Limiter - 40, Flange/flange, 20M³/h
003G1082
Danfoss
Danfoss DML Dryer Filter - 3/8" flare, R22, R23, R32, R134A, R404A, R407A, R407C, R407F, R410A, R438A, R448A, R449A, R450A, R452A, R452B, R454A (XL40), R454B (XL41), R454C (XL20), R455A, R507, R513A, R1234YF, R1233ZD, R1234ZE, DML163
023Z504391
Danfoss

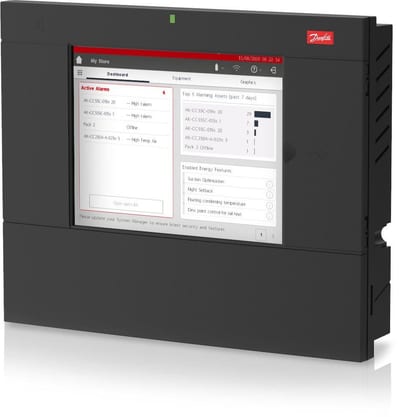

Danfoss ADAP-KOOL Control - 230V, AK-SM 850A
080Z4021
Danfoss

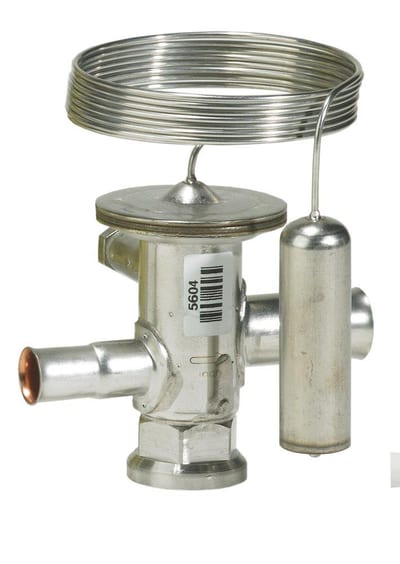

Danfoss TUA Thermostatic expansion valve solder/solder - R134A, Intern, -40-10°C, TUA R134A/R513A
068U2204
Danfoss

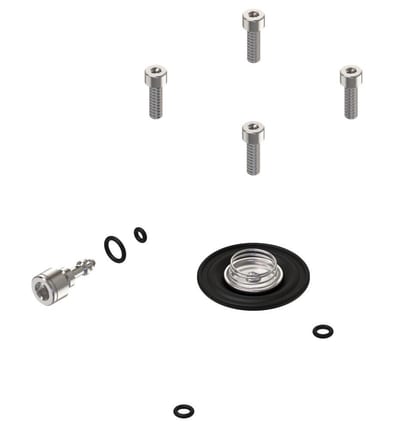

Danfoss Diaphragm Service Kit for EV220 / EV228BW DN15 NC/NO Solenoid Valves
132U8016
Danfoss

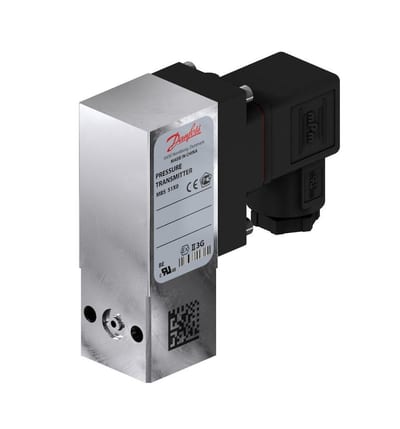

Danfoss MBS 5100 Pressure Transmitter - 1/4", 0-1bar
