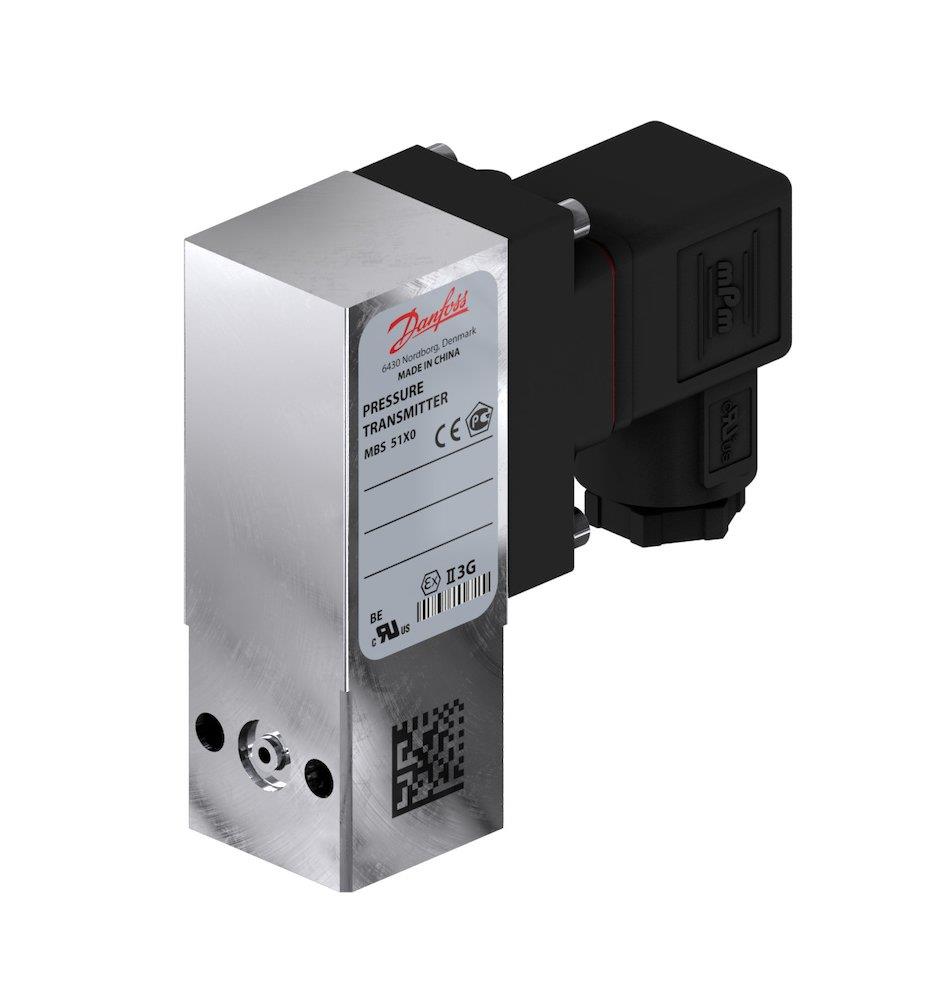

Danfoss MBS 5100 Pressure Transmitter - 1/4", 0-1bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 5100 Pressure Transmitter. Push buttons (Plumbing / Heat / Valves for heating and cooling systems). Principal data: connection 1/4", setting range 0-1 bar. Supplied under manufacturer part number 060N1032, EAN 5702423059331, HS code 9026.20, country of origin China.
Technical Specifications
- Product type
- Push buttons
- Product group
- Heat
- Connection
- 1/4"
- Setting range
- 0-1 bar
- Type
- MBS 5100
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 2.4945 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 90262020
- HS code
- 9026.20
- Manufacturer part number
- 060N1032
- VVS number
- 475157010
- EAN
- 5702423059331
- Net weight
- 0.332 Kilogram
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.3 %
- Accuracy, typical [±FS%]
- 0.1 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection
- Angular connector
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702423059331
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 2 bar
- Pressure connection notes
- With flange
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 1 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 14.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate Strip substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 5100-1011-A6DB04-4
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- Test Signal
- PIN 3
- UL mark
- Yes
Standards & Compliance
- HS Code
- 9026.20
Cross References
- MPN 060N1032
- EAN 5702423059331
- VVS 475157010
Product Documentation
More from Danfoss
Danfoss
Danfoss S Oil nozzle - 2.37KG/h, 0.6US gal/h, 60°, S, red
030F6912
Danfoss
Danfoss RTX Valve Set chrome-plated - R 1/2", 0.44M³/h 1101088
013G4133
Danfoss
Danfoss VRB 3 Seat Valve 3-Way - 40, 2 1/4", Nipple, 25M³/h
4007140
Danfoss
Danfoss S Oil nozzle - 3.72KG/h, 1US gal/h, 80gr, S, red
030F8920
Danfoss
Danfoss BF230AS Coil - 220-230 V AC, 12W, 3-Kernet cable
5702428024815
Danfoss
Danfoss RMT 24T Room Thermostat - 8°C, 30°C
4007241
Danfoss
Danfoss WVFX Water Valve - 3/4", 3.4M³/h, R22, R134A, R404A, R407C, R407F, R448A, R449A, R450A, R452A, R454A (XL40), R454C (XL20), R455A, R507, R513A, R1234YF, 4,0-23bar, WVFX-20
5702422035886
Danfoss

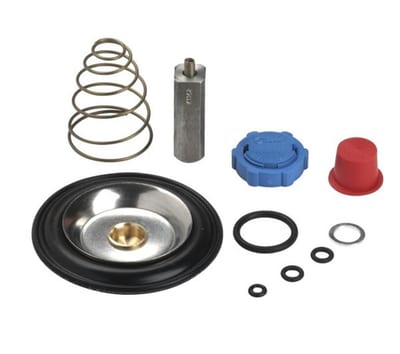

Danfoss Spare Part Set - 10221922
